| Price: | US $ 1235-2300/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | SKB041-3 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

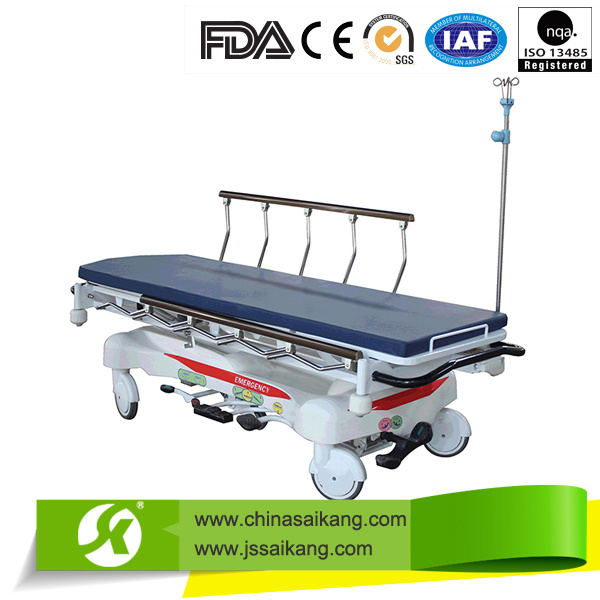

| Name: | Patient Transportation Trolley |
| Certifications: | Ce/FDA/ISO |
| General Use: | Commercial Furniture |
| OEM: | Available |
| Sample: | Available |
| Lading Port: | Shanghai |
| User's Manual: | Available |
| Warranty: | 2 Years |
| MOQ: | 1PCS |
| Factory Type: | Over 13 Years Manufacturer |
| Material: | Metal |
| Folded: | Unfolded |
| Using Ambient: | Hospital |
| Certification: | ISO13485 |
General
It is the best choice for emergency room, ICU, ICU bed and emergency bed for transferring patient.
The bed can be raised and lowered , tilted forward and backward
which is controlled by the treadle lying on two sides of the bed.
The bottom cover is made of PP material and shaped by once injection that can be easily cleaned.
The cart surface is of separate structure and the upper part is supported by the imported large hydraulic pole to
make the bed never sway. It is completed with infusion stand, drainage hook and collapsible aluminum alloy side rails.
The bed is made of galvanized steel tube and surface coated by electrostatic spray.
The back board is made of American electrotyped board with Xray cassette.
It is equipped with the imported double hydraulic rise-and-fall system .
Features/Function
1. With adjustable height approximately 20 "or less 34" or more. |
2. Patient surface at least 28 "wide or more than 75" long or more |
3. Railing whole steel material covered and that overwhelmed or fold out with minimum height of 13 "over 54" or more. |
4. Following positions: Fowler tire 0 ° - 90 °, Trendelenburg / reverse Trendelenburg Pneumatic 16 degrees or more, |
5. Operations trendelemburg free hand |
6. Pedal control elevation and trendelemburg / reverse Trendelenburg located on both sides of the table. |
7. Centralized controls standing on end or corners of the stretcher brake and steering. |
8. Wheel 8 "to 10" easy displacement type brake system with four-wheel central |
9. Waterproof Mattress TO 4" thick. |
10.Central Wheel Mechanism to facilitate movement. |
11. Tank compartment oxygen in the bottom of the table. |
12. Four holes, one in each corner for IV stand |
13. Fixed and collapsible telescoping stand with two or more hooks. |
14. Protection system or rubber bumpers on the four corners. |
15. Weight that can withstand not less than 500 lbs. |
16. Dual pedestal |
17.With cassette holder or tray for placement of x-rays |
18. Knee joint system to to 40 ° or higher. |
Specifications

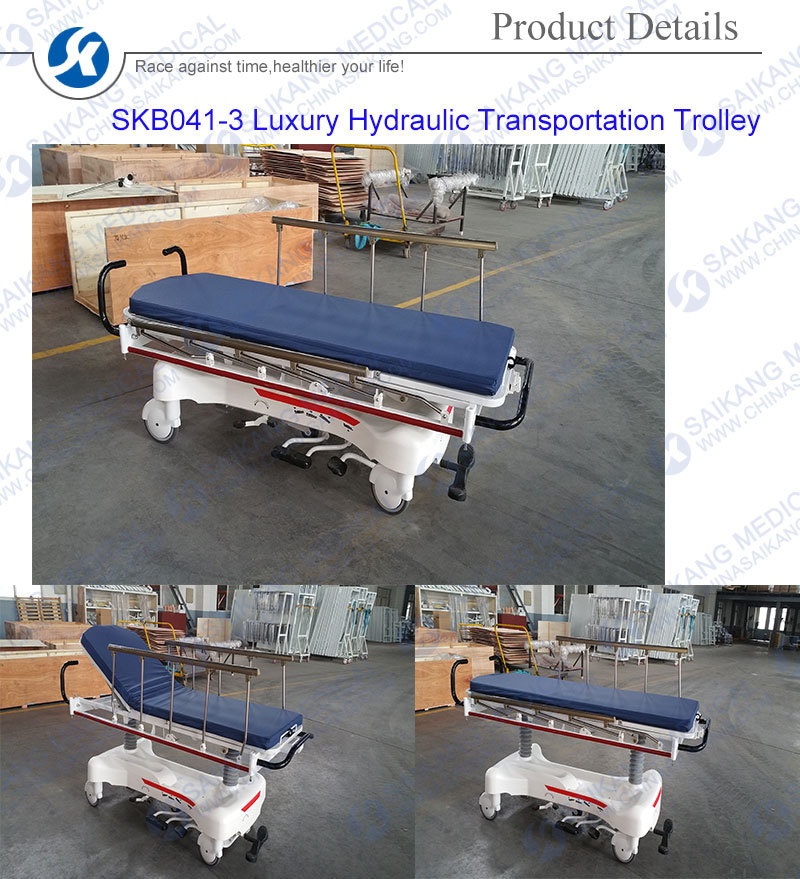

Model | SKB041-3 |
Overall size (L*W*H) | 2100*850*615-935mm |
Range of angle of the back rest | 0°-82°(±5°) |
Range of angle of the knee rest | 0°-30°(±5°) |
Trendelenburg range | 18° |
Reverse Trendelenburg range | 18° |
Loading bearing | 220kg |
Thickness of mattress | 100mm |
