Low Power Consumption LV Power Distribution Cabinet with IEC Standard
| Price: |
US $ 1200-1500/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
JP-03 |
| Structure: |
Fixed Board |
| Type: |
Distribution Box |
| Certification: |
TUV, Ce |
Product Description

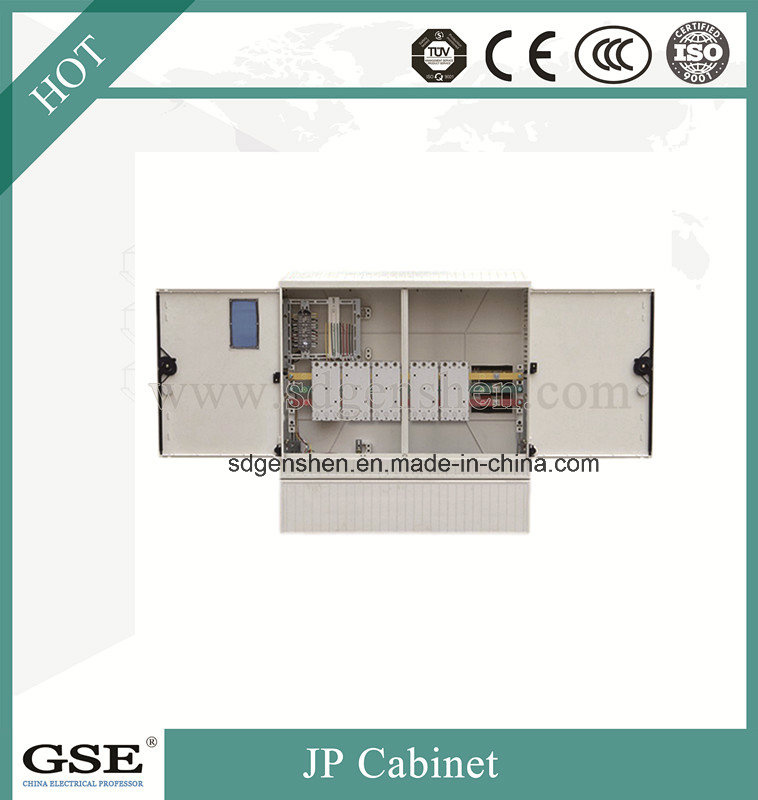

Low Power Consumption LV Power Distribution Cabinet with IEC standard
The partner of State Grid Corporation
The partner of National Railway Administration of China
ISO9001, TUV, and CE standard
1.Overview:Outdoors integrated distribution cabinet series is suitable for AC 50 Hz, rated voltage up to 0.4 kV power transmission and distribution system. This series of product is a combination of automatic compensation and power distribution. And it is a innovative indoors and outdoors pressure distribution cabinet of electrical leakage protection, energy metering, over-current, over-pressure open phase protection. It has benefits of small volume, easy installation, low cost, electricity-stolen prevention, strong adaptability, resistance to aging, accurate rotor, no compensation error, etc. Therefore it is the ideal and preferred product for electric grid reformation. 2.Product Shell:The product is made of bending and welding of high quality stainless steel. Compared with other distribution boxes made of cold steel, its tensile ability, oxidation resistance, corrosion resistance has been greatly strengthened, and it extends the service life of the equipment. Novel design shows scientific innovation and achievements. On the other hand, V-type box is equipped with sealing rubber strip, which can prevent the dust, and it is fitted with floor at the same time. It can be installed electrical equipment. The open angle is greater than 90 degrees. It is adopted the new design: waterproof, anti-theft, anti-dust. And organic glass has been adopted to increase safety, easily installation and operation. Specifications, sizes can be customized according to customers' requests. 3.Technical parameters:| Rated voltage | 400 V |
| Rated frequency | 50 Hz |
| Transformer capacity | 30, 50, 63, 80, 100, 125, 160, 200, 250, 315 (kVA) |
| Capacitor grouping | (in general) 2, 3, 4, 5; Can be adjusted according to customer's special requirements |
| Feeder circuit | 3 roads generally, for each road, distribute according to its transformer's 40-60% of total capacity; Can be adjusted according to customers' special requirements |
| Compensation mode | circulation cutting, coding cutting, fuzzy control automatic cutting |
| Control parameters | reactive power or reactive current |
| Fastest response time | 20 ms or less |
4.Operating Conditions:| Environmental temperature | -40ºC~+55ºC |
| Relative air humidity | ≤90% (relative environmental temperature is 20ºC~25ºC) |
| Altitude | no more than 2000 m |
| Environmental conditions | suitable for the casing installation, not suitable for places with fire and explosion danger, serious foul, chemical corrosion and strong vibration |
| Installation location | the inclination to the vertical of the ground is no more than 5 degrees |
5.Main Performance:5.1. Response rapidly, compensation effect is good, reliable work, leakage protector can be added according to customers' requests;
5.2. Protection functions: over-pressure, overload, under-pressure, under-current, short circuit, lack of phase, zero sequence overrun, etc;
5.3. automatic functions: power outages after launch, 10s automatic recovery after sending;

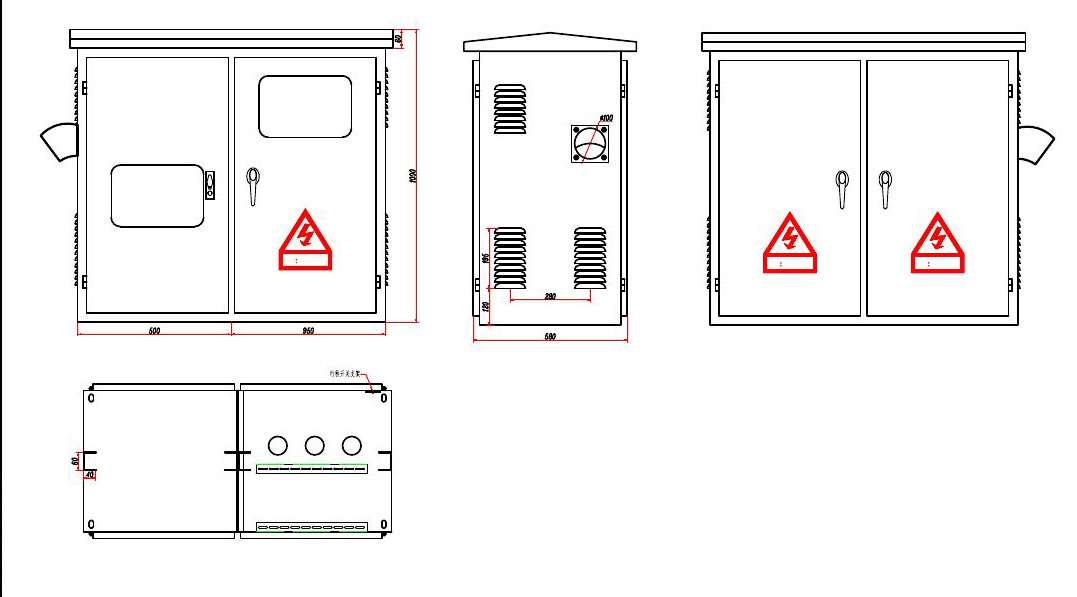

5.4. Improves the power factor of gird above 0.95.6.Product Drawn
7.Package
8.Our Company

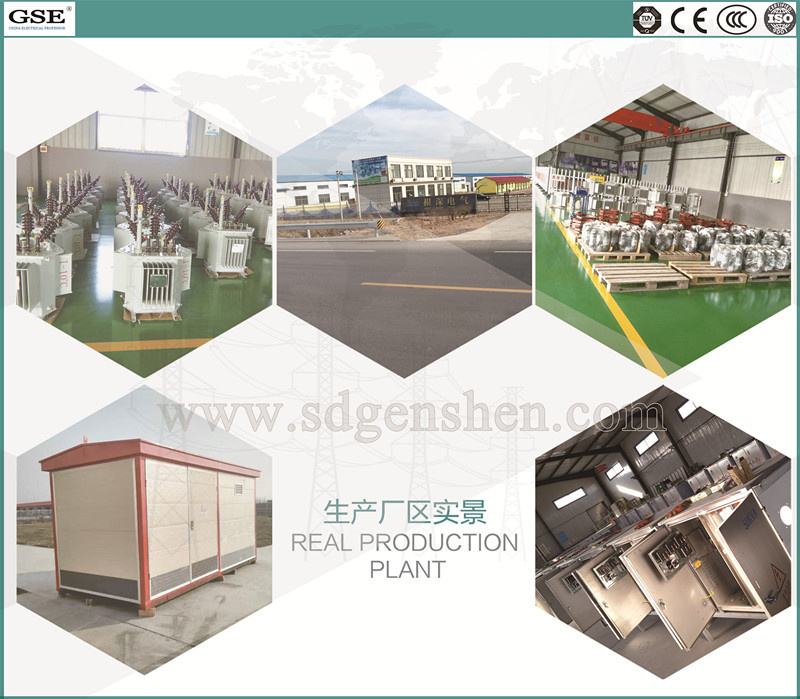

Shandong Province Yangxin Genshen Electric Co., Ltd was founded in 2012 and her subsidiary,Qingdao Yaoutongxing International Trading Co.Ltd, is founded in Qingdao.We are specialized in JP Cabinet, Power Distribution, Electric Energy Metering box, High Voltage Switch Cabinet, Box Type Substation, Transformer, Protection Devices, Low voltage switchgear and other electrical equipment and accessories with ISO9001, TUV, and CE standard in China, which is the partner of State Grid Corporation and National Railway Administration of China.We have always cooperated with China's government.We guarantee the highest quality of our products and services with every order.Taking exceptional care with every request is not only our policy, it's our promise.We will at all times be known as professional and honorable operators who are as good as our word.
9.Certificate
10.RFQ10.1.Q: Are you manufacturer?
A: Yes, we are manufacturer. Our factory is in Binzhou City, Shandong Province.
10.2.Q: Can I get guarantee of products?
A: Yes, every product is 1 year quality warrantee under customer correct using the products.
10.3.Q: Do you have any Certificate?
A: Yes. Each of our unit has CCC certificate. All the electric parts with CE certificate, If you need any other Certificate, we can help you to get it.
10.4.Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution.We have shipping agent can choosing the cheapest and fastest delivery. FOB,CIF, C&F or EXW are no problem for us.
10.5.Q: How can I pay you?
A: T/T, L/C is very well used.
10.6.Q: What about the production?
A: Produce time is 4~6weeks.
10.7.Q: Could you offer some spare parts?
A: Yes, no problem.
10.8.Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
11.Contact
Should you have any problem,please contact with us,we will reply to you in 24 hour.
Manager:Alvin
Mobile:+86 177 6202 7849
Shandong Province Yangxin Genshen Electric Co., Ltd was founded in 2012 and her subsidiary, Qingdao Yaoutongxing International Trading Co. Ltd, is founded in Qingdao. Registered capital of 50 million yuan, covers an area of 50 acres, production workshop 15000 square meters, 150 employees, annual sales reached about 80000000 yuan is a high-tech enterprise integrating a production, sales and system, company to the electric meter box, cable casing, high and low voltage electrical switchgear, transformer, box type substation, cable branch box, distribution box, ring network cabinet, JP cabinet, power distribution box, low voltage reactive power compensation control cabinet, electric energy metering box, high voltage metering device, porcelain insulator, composite insulator, transformer oil, electrical equipment, instrumentation, and insulated wire wire and cable, communication cable, cable accessories, monitoring equipment, electrical fittings and electrical equipment processing, glass steel material with sheath (SMC), PC+ABS material metering box system Products, electric vehicle charging equipment, photovoltaic power generation equipment (excluding generators), wind power equipment production and sales is one of the strongest influence and expertise in North China enterprises, is the ISO9001 quality management system, OHSAS18001 occupation health and safety management system and ISO14001 environmental management system certification, 3C certification enterprises.

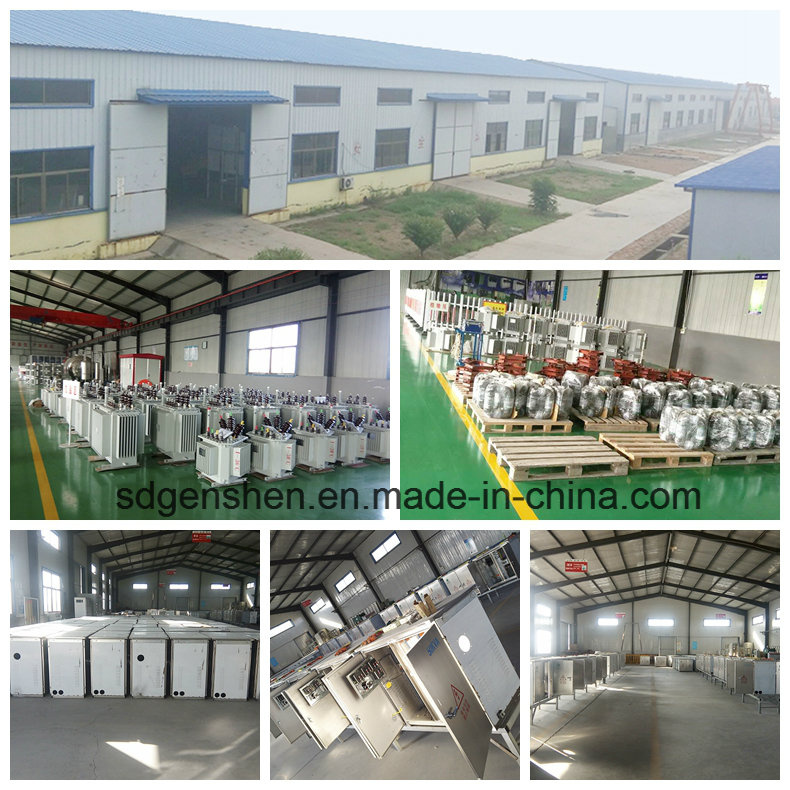

The company is located 14 kilometers west of Yangxin County, the provincial highway and the intersection of the 317 provincial highway in the north, from the Binzhou-Dezhou freeway 3 km, strategic location, convenient transportation, and the transportation is convenient, and the transportation is convenient. Company covers an area of 26934.7 square meters, production workshop covers an area of 50 million square meters, office area of 2000 square meters, . With advanced production lines, testing equipment, thereby ensuring the quality of products, the formation of the development, testing to mass production of modern industrial production scale.
