| Prod Model: |
rack |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: |
Plastic Spray or Baked Paint Finishing |
| Color: |
as Required |
| Upright: |
55*55*1.5 |
| Pitch: |
50mm |
| Loading Capacity: |
300-800kg |
| ODM: |
Yes |
| OEM: |
Yes |
| Type Of Company: |
Manufacturer |
| Loading Port: |
Shanghai |
| Delivery Time: |
10-20 Days According to Quantity |
| Material: |
Steel |
| Structure: |
Rack |
| Serviceability: |
Common Use |
| Weight: |
150-500kg |
| Mobility: |
Adjustable |
| Closed: |
Open |
| Development: |
New Type |
| Type: |
Medium Duty Rack |
| Height: |
Selective |
Product Description

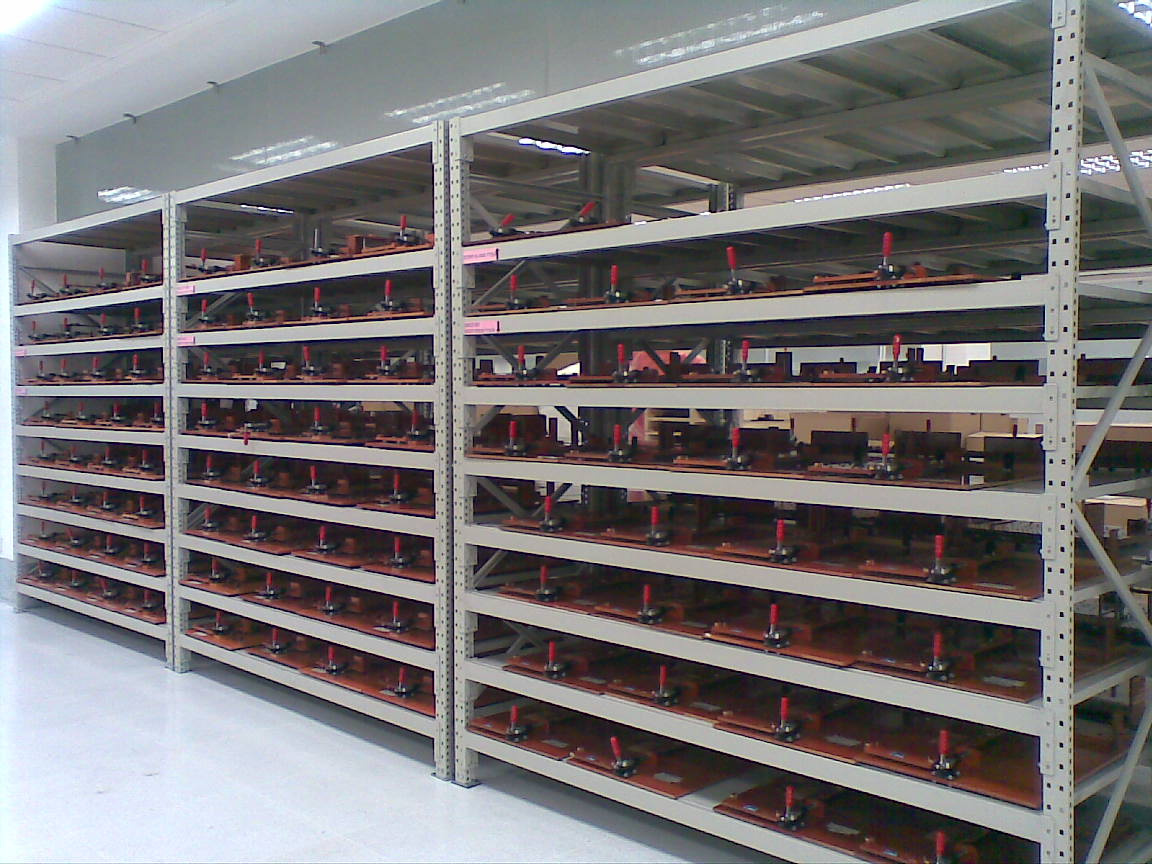

Medium Rack/ Middle Weight Shelving/ Medium Duty Type Rack
Features:
1. Rigid-structure, durable, versatile and economical shelving system, most widely used for storage of different items.
2. Available in wide range of shelving height, depth & length and loading capacities to clients' storage needs.
3. Fully adjustable shelf height.
4. Very easy to install and dismantle.
5. Rapid handling and direct access of almost all types of goods.
6. Maximizes space use in any storeroom configuration while retaining optimum productaccessibility.
7. Strength and rigidity prevents compression damage to goods.
Parameters:
Loading Capacity: 300-500kgs UDL/level as general, up to 1, 000kgs UDL/level as special request
Racking Height: 1, 800-3, 000mm as general, up to 11, 000mm as special request
Racking Depth: 300-600mm as general, up to 1, 200mm as special request
Beam Length: 1, 200-2, 000mm as general, up to 3, 000mm as special request
Racking Finish: Powder Coated Finish or Galvanised Finish for Steel Panels and upright Frame
Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing
B) The size of shelf (length/mm*width/mm*height/mm)
C) How many bays you want
D) The loading capacity of each layer
E) The RAL color you want
F) The layers of each shelf
Contact Information:
Casy
Tel: 0086-025-85363177, 0086-13851406693
Fax: 0086-025-86109278
| Section of Upright (mm) | Length (mm) | Depth (mm) | UDL (kg) |
| 55x55x1.5 | 1200 | 470 | 300 |
| 55x55x1.5 | 1200 | 600 | 350 |
| 55x55x1.5 | 1200 | 720 | 350 |
| 55x55x1.5 | 1200 | 920 | 450 |
| 55x55x1.5 | 1200 | 1180 | 450 |
| 55x55x1.5 | 1500 | 470 | 200 |
| 55x55x1.5 | 1500 | 600 | 300 |
| 55x55x1.5 | 1500 | 720 | 300 |
| 55x55x1.5 | 1500 | 920 | 400 |
| 55x55x1.5 | 1500 | 1180 | 400 |
| 55x55x1.5 | 1800 | 470 | 250 |
| 55x55x1.5 | 1800 | 600 | 250 |
| 55x55x1.5 | 1800 | 720 | 250 |
| 55x55x1.5 | 1800 | 920 | 400 |
| 55x55x1.5 | 1800 | 1180 | 400 |
Note: 1) Standard height are 1500mm, 1800mm, 2000mm, 2400mm, 3000mm, and the pitch is 50mm.
2) Please contact the supplier if you want non-standard specification. |
Nanjing Hengtuo Storage Equipment Co., Ltd. is an enterprise who always commits herself to develop convenient logistics equipment and efficient storage equipment. Our goal is to build a leading company in logistics. The enrollment of our company capital is more than USD 140, 000 and the total investment is over USD 2, 700, 000. We have customers from all over the world, such as southeastern Asia, Japan, Europe, Africa and so on.
Our company covers an area of over four hectares with a building space of over 5800 square meters. We have more than 160 staff, among whom more than 10 people are professional senior engineers. Based on the foreign advanced technology and combining Chinese storage equipment with features of automatic production line, we have developed
1) Logistics containers, such as a variety of storage cages, pallets and packing materials;
2) a series of rack products such as Install-able Assemble Racks, Through Type Racks, Supermarket Racks, Attic Type Racks, Flow-through Racks,;
3) Station Equipment: Pallets, Metal Boxes, Tool Cabinets, Case Racks, Trucks, Stacking Frames;
4) Handing Equipment: Pallet Truck, Trolley, and Handcart.
Our products are widely used in exhibitions, supermarkets, companies, banks, hospitals, factories, libraries, warehouses and so on.
We insist on the scientific management principles: "Live with best quality and develop with good reputation". Emphasizing on quality and reputation is our weapon to keep up with the status in this field.
We will be glad to provide good products and perfect service to you and welcome your visit and cooperation.
