| Prod Model: |
rack |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Treatment: |
Plastic Spray or Baked Paint Finishing |
| Color: |
as Required |
| Pitch: |
75mm |
| Feature: |
Corrosion Protection |
| Operation: |
by Forklift or Stacker |
| ODM: |
Yes |
| OEM: |
Yes |
| Type Of Company: |
Manufacturer |
| Loading Port: |
Shanghai |
| Delivery Time: |
10-20 Days According to Quantity |
| Material: |
Steel |
| Structure: |
Rack |
| Serviceability: |
Common Use |
| Mobility: |
Adjustable |
| Closed: |
Open |
| Development: |
New Type |
| Weight: |
up to 1000kg |
| Height: |
Selective |
Product Description

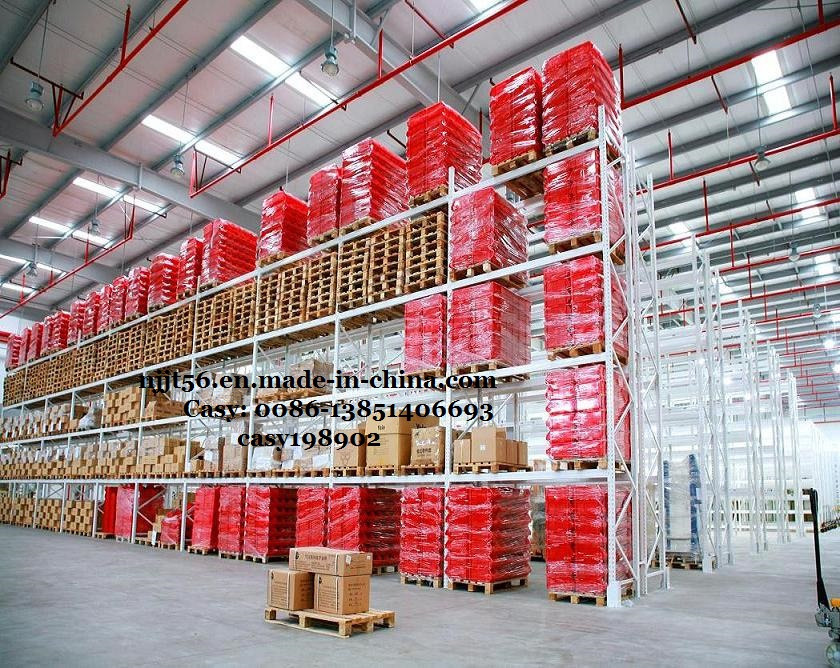

Logistic Equipment Storage Drive in Pallet Rack System
Drive-in Racking is suitable for storing goods of few varieties by great quantity. Fork lifer may go into the passage of each row of the rack improving the utility ratio of warehouse.
Drive in pallet rack
1. Loading capacity: 2500kg/layer
2. Colors: Available in various of colors
3. Size: L2500*W1200*H5000mm, Customized size available
Features:
1. Made of continuous rows of upright frames interconnected by spacers
2. Forklift trucks drive along each aisle (lane) to store or retrieve pallets
3. Each aisle consists of several levels of pallet support rail
4. Pallets are placed on the pallet support rail one after another along the aisles
5. Top and back bracings are used to stabilize system structure
6. All components are epoxy powder coated except the galvanized footplates
7. Accessories include shim, upright protector, forklift guide rail
Please inform us the listed questions in your inquiry for quick quotation:
A) The warehouse outline drawing
B) The size of shelf (length/mm*width/mm*height/mm)
C) The layers of each shelf
D) The loading weight of each layer
E) The RAL color you want
Contact Information:
Casy
Tel: 0086-025-85363177, 0086-13851406693
Fax: 0086-025-86109278
| Feature of Pallet racking |
| Meterial | High-quality steel from the largest steel manufacturer in China. |
| Surface treatmet: | Podwer coating; Normal color(Orange or blue) or according to customer' s requirement. |
| Size | Height | 2-11m (6.56-36.1ft), or according to customer' s requirements. |
| Width | 1.5-3.3m (4.92-10.82ft), or according to customer' s requirements. |
| Length | 0.8-1.2m (2.63-3.94ft), or according to customer' s requirements. |
| Thickness | Upright: 1.5-2.5mm; Beam: 1.5-2.0 |
| Spec. of upright | 60X55mm, 70X55mm, 90X70mm, 105X70mm, 120X90mm, etc. |
| Spec. of beam | 80X50mm, 90X50mm, 100X50mm, 110X50mm, 120X50mm, 140X50mm, etc. |
Loading capibility
(per layer) | 700-4000kg (1 543-8 818lb). Refer to below sheet 2 for more details. |
| Layer nos. | 2-7 layers or customized. |
| Packing | Experienced export packing (uprights and beams' both end with cardboard, then bundled tightenly with plastic belts, safe for long-distance transportation) also we can follow your requirement. |
| Delivery | 10-15 ton per 1x20ft container, 20-25 ton per 1x40ft container. 15-20 workdays after received the deposits. |
Nanjing Hengtuo Storage Equipment Co., Ltd. is an enterprise who always commits herself to develop convenient logistics equipment and efficient storage equipment. Our goal is to build a leading company in logistics. The enrollment of our company capital is more than USD 140, 000 and the total investment is over USD 2, 700, 000. We have customers from all over the world, such as southeastern Asia, Japan, Europe, Africa and so on.
Our company covers an area of over four hectares with a building space of over 5800 square meters. We have more than 160 staff, among whom more than 10 people are professional senior engineers. Based on the foreign advanced technology and combining Chinese storage equipment with features of automatic production line, we have developed
1) Logistics containers, such as a variety of storage cages, pallets and packing materials;
2) a series of rack products such as Install-able Assemble Racks, Through Type Racks, Supermarket Racks, Attic Type Racks, Flow-through Racks,;
3) Station Equipment: Pallets, Metal Boxes, Tool Cabinets, Case Racks, Trucks, Stacking Frames;
4) Handing Equipment: Pallet Truck, Trolley, and Handcart.
Our products are widely used in exhibitions, supermarkets, companies, banks, hospitals, factories, libraries, warehouses and so on.
We insist on the scientific management principles: "Live with best quality and develop with good reputation". Emphasizing on quality and reputation is our weapon to keep up with the status in this field.
We will be glad to provide good products and perfect service to you and welcome your visit and cooperation.
