| Prod Model: |
FY013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Furniture Nursing Bed |
| Noise Level: |
<50dB |
| Warrtanty: |
2 Years |
| Load Capacity: |
8000 N/6000n |
| Material: |
Metal |
| Type Of Hospital Bed: |
Nursing Bed |
| Folded: |
Folded |
| Certification: |
RoHS,SAA |
Product Description

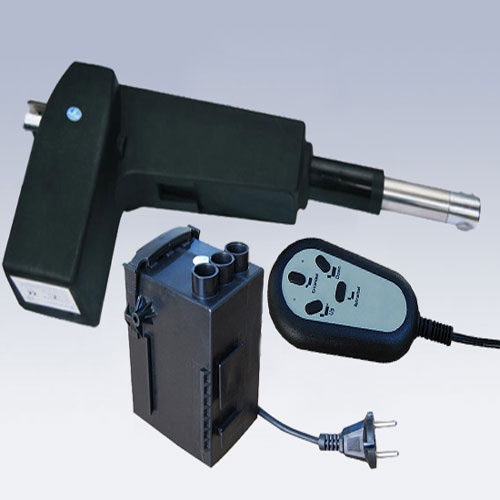

FY013 Linear Actuator
1)Usage: Medical Equipment
2)Built-in limit switch
3)Low noise, high quality
4)CE approved
FY012 300mm stroke 8000N load FY013 Medical Electric Linear Actuator
FY013 Series Linear Actuator have the same basic performance as FY012, with higher load capability which Make it the best choice to use in medical and industrial area. Building in limit switch protection.
Features:
1) Chrome Plated Piston Rod eye with slot
2) Scratch and wear-resistant powder
3) Stainless Steel Back Fixture
4) Strong wear and corrosion resistant
5) Stainless Steel Inner Rod
6) High Strength Plastic Housing and Gears
7) Elegant and compact design with small installation size
Detailed Product Description:
1) 12V/24 V DC motor
2) Thrust up to 8000 N in push and up to 5000 N in pull
3) Electric chromate steel piston rod eye with slot
4) High-strength plastic housing protects motor and gears
5) Elegant and compact design with small installation dimensions
6) Standard protection class, IP54
7) Built-in limit switches (not adjustable)
8) Scratch and wear-resistant powder painting on outer tube
9) steel back fixture
10) Strong wear and corrosion resistant stainless steel inner tube
11) Noise level 48 dB (A), actuator not loaded.
12) Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use
13) Ambient temperature, -26° C to +65° C
14)Standard stroke: 50 mm to 500 mm
