| Prod Model: |
FY012 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Metal |
| Type Of Hospital Bed: |
Nursing Bed |
| Type: |
Medical Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Certification: |
RoHS |
Product Description

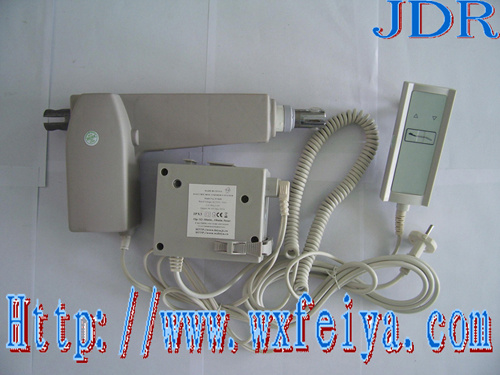

Medical Linear Actuator
1) Medical Linear Actuator
2) Used in Medical traction bed.
3) CE, RoHS approval
Specifications of FY012 Linear Actuator:
Name: Linear Actuator
Model: FY012
Input Voltage: 24V DC
Max Load Capacity: 4000N (400kgs)
Max Speed: 4mm/s (4000N), 9mm/s (2000N)
Standard Stroke: 1000mm
Limit Switches: Inner
Type of duty: S2-10min
Color: Black / Gray
Operation Temperature: -26 Centigrade ~ 65 Centigrade
Protection Class: IP454
Certification: CE/EMC+LVD, RoHS
Usage: Medical traction bed.
Control Box Used:
Control 1 Linear Actuator: FYK011-1, FYK012-1, FYK015-1, FYK016-1, FYK017A
Control 2 Linear Actuators: FYK011-2, FYK012-2, FYK015-2, FYK016-2
Control 3 Linear Actuators: FYK011-3, FYK012-3, FYK016-3
Control 4 Linear Actuators: FYK012-4, FYK016-4
Control 5 Linear Actuators: FYK012-5, FYK016-5
Control 6 Linear Actuators: FYK016-6
Handset Used:
All FYH Series Handset, Pls contact us for detail pictures.
| Name | Linear Actuat |
| Mode | FY012 |
| Input Voltage | 12V or 24V |
| Max Load Capacity | 6000N(4mm/s) |
| Max Speed | 30mm/s(750N) |
| Stroke | 0~1000mm |
| Mini Install Dimension | stroke+175mm |
| Limit Switches | Inner |
| Type of Duty | 10% |
| Operation Temperature | -26~+65 |
| Noise | < 48db |
| Protection Class | IP54 |
| Certification | CE |
| Applications | Furniture, Medical bed
|
