QINGDAO GG LIFTERS CO., LTD. >> Lift Platform Scissor Lifter Lift Table

Lift Platform Scissor Lifter Lift Table

Lift Platform Scissor Lifter Lift Table
Price: US $ 1500sets
Min Order: 1sets
Pay Type: L/C,T/T,Western Union
Prod Model: LFS20/5720
Safety Lock: Manual Unlock
Lifting Capacity: 2000kg
Tototal Lifting Height: 5720mm
Net Lifting Height: 5000mm
Platform Size: 3000 X2000mm
Pit Dimension(Depth X Width X Length): 720 X 2200 X 3050mm
Power Supply: 380V/ 50Hz/ 3 pH
Motor Capacity: 4kw
Lifting Speed: 4-6 M/Min

Product Description





SCISSOR LIFTING PLATFORM

Hydraulic driven by electric motor and 2 ea piston & cylinder.

Good stability, covers a wide range of applications, mainly used where exists some height difference.

Folded inside pit, doesn't occupy any ground space.

Sustain passing of trucks up to 5 tons over it.

Safety Guard Rails (U shape), portable, made of steel square tubes.

Safety locks to avoid sudden fall of platform -under any circumstances - from the adjusted height.

PARAMETERS

Model NOLFS20/5720
Lifting Capacity2000kg
Total Lifting Height5720mm
Net lifting Height5000mm
Platform Size3000 x2000mm
Pit Dimension(Depth x Width x Length)720 x 2200 x 3050mm
Power Supply380V/ 50HZ/ 3 PH
Motor Capacity4KW
Lifting speed4-6 m/min

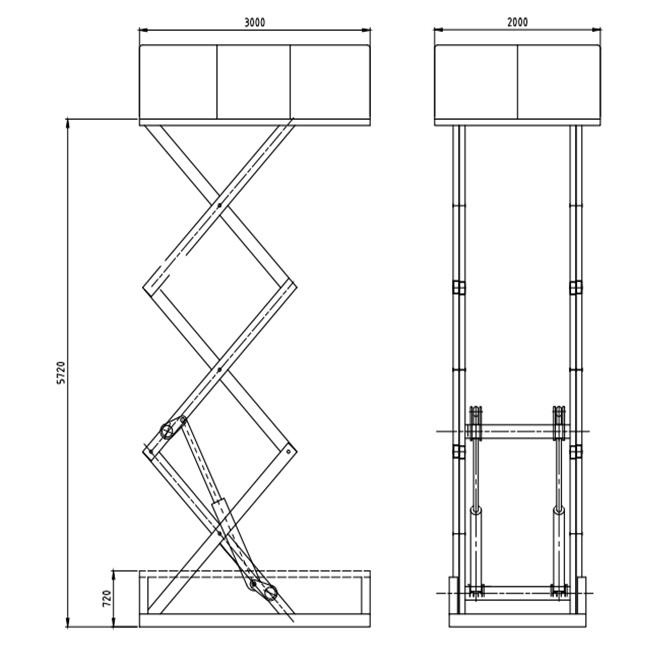

Drawing


Photos















Qingdao GG Lifters Co., Ltd, an established Factory in Qingdao, China, with state of the art facility to design, manufacture and install world-class solutions for automated and mechanical car parking and car service lifts offered to our customers worldwide.

Our competent team in multi languages (English, Chinese, Italian, Arabic, Japanese, etc) is well prepared to anticipate, identify and exceed our customers' expectations. GG Lifters enjoys excellent experience packed with strong technical know-how using latest manufacturing machines such as CNC Plasma, Press Brake, Cutting and Welding to guarantee the quality of every single part with minimal error and meeting international manufacturing standards in all production stages.

GG Lifters through its Research and Development team is committed to provide unmatched quality yet maintaining efficient & ergonomic operation to insure producing durable and competitive parking lifts, service lifts for commercial and residential solutions.
