| Prod Model: |
SGX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Free Standing: |
Easy to Operate |
| Style: |
Integrated Style |
| Physical Machine Type: |
Water Conservan Cycleaning Method |
| Usage: |
Building Industry |
| Machine Type: |
Industrial Washer |
| Fuel: |
Electric |
| Clean Type: |
Manual |
| Cleaning Process: |
Electric or Steam |
| Certification: |
Ce ISO |
| Name: |

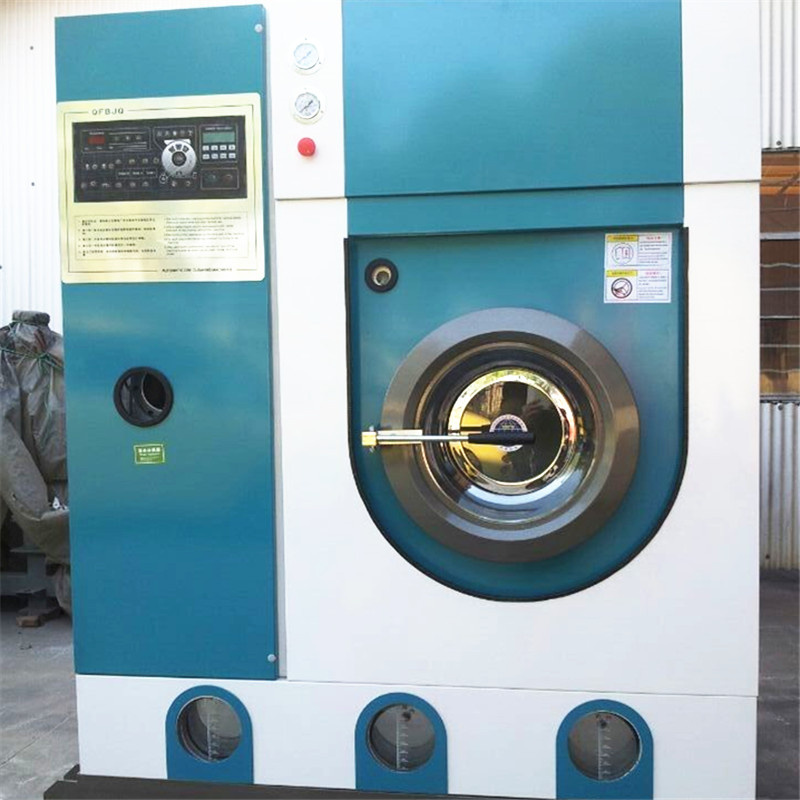

Laundry Shop Dry Cleaning Machine |
Product Description
3 in 1, washer, extractor and dryer

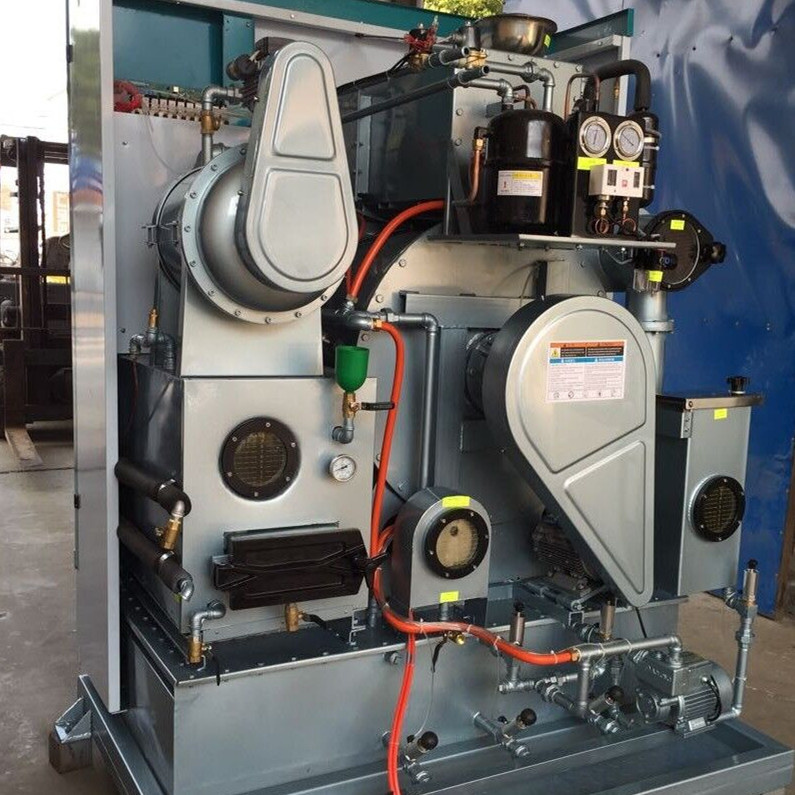

1. High quality recycling working system. Including filter, still tank, condenser tank, water separator and cleaning tank, more than 99.8% solvent can be recycled. Saving solvent(perc). Perfect seal, no pollution to the air, no harm to human, keep the room fresh.
2. Main parts with high quality stainless or non-ferrous metals stamping with a mold crafted, using high-temperature galvanizing technology to greatly increase the corrosion resistance of the machine.
3. Adopt nylon bag fluff collector to prevent blockage.
4. High-speed fan, speeding up the drying and cooling rate.
5. Heating the solvent by distillation tank. Then the vapor into the condenser, and purified solvent left.
6. Dry-cleaning oil filter can remove impurities, particles, pigment, to ensure clean dry oil played a significant role in enhancing the quality of laundry, and avoid problems of dyeing other expensive clothing, reduce the number of distillation, make the machine long life.
7. The device combines advantages of brand-name.
Dry cleaning machines both in Germany and Italy.
Specification:
| Model | GXQ-6 | GXQ-8 | GXQ-10 | GXQ-12 | GXQ-16 |
| Washing Capacity(kg) | 6 | 8 | 10 | 12 | 16 |
| Capacity of drum(L) | 108 | 137 | 174 | 182 | 312 |
| Washing Speed(r/min) | 34 | 34 | 34 | 34 | 34 |
| Extracting Speed(r/min) | 370 | 370 | 370 | 370 | 370 |
| Hydraulic Pump Power(kw) | 0.75 | 0.75 | 0.75 | 0.75 | 1.50 |
| Roller electrical engineering(Low speed) (kw) | 0.3 | 0.4 | 0.4 | 0.4 | 0.75 |
| Roller electrical engineering(high speed) (kw) | 1.3 | 1.5 | 1.5 | 1.5 | 2.2 |
| Filter electrical engineering(kw) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
| Power Supply(V) | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 |
| Frequency(Hz) | 50 | 50 | 50 | 50 | 50 |
| Dimension(L. W. H) (mm) | 1220× 1230× 1700 | 1480× 1280× 2050 | 1540× 1450× 2040 | 1520× 1360× 2110 | 2070× 1440× 2250 |
| Total Weight(kg) | 650 | 700 | 800 | 950 | 1200 |
Apply in: Laundry shop / Hotel accessory products:
1.) Laundry shop
a. Small laundry shop equipment: ( <20 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment
b. Middle laundry shop equipment: ( 20m²-40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor
c. Large laundry shop equipment: ( >40 m²)
dry cleaning machine,washer-extractor,drying machine,ironing equipment,press machine,packing machine,clothes converyor,stain removal table,form finisher,clothes disinfection cabinet,shoes washing machine,shoes dryinging machine
2). Hotel
a. Small hotel ( <50 rooms)
washer-extractor,drying machine,ironing machine
b. Large hotel (> 50 rooms)
washer-extractor,drying machine,ironing machine,folding machine,dry cleaning machine,press machine.
We can provide the professional proposal for you according to your situation.
Our service:
1. Integrating development, production, sale and service.
2. Complete modern production machines and high-level staff members.
3. Dedicated to designing and manufacturing dry cleaning machine,washing machine,dryer machine,folder machine,ironer machine,extra-laundry equipment etc.
4. High quanlity products, competitive price,and excellent customer services are always our ultimate.
5. Create a win-win business relationship with you in the near future.
FAQ
Q1. Are you a factory or a trading company?
A: We are a leading factory here,OEM is available.
Q2. How can I know you're real and your product is good.
If you want to cooperate with us sincerely,we can provide our other customers' contact information to you. They can prove that.
Q3. Our power supply is 415v, 3phase, 50hz, can you provide it?
A: Yes,We can customize the power supply for you.
Q4. What's your machines' warranty?
A:We provide free parts and parts delivery, when manufacture defects has been detected during normal operation under warranty period.
All parts are under 12 months warranty with defects from manufacturer.
All electronic parts and components are also under this guarantee.
Q5. What is your delivery time?
A: Our delivery time is about 15-30 days after receiving deposit.
Taizhou Tongjiang Washing Machinery Factory, founded in 1996, is located in Taizhou Senbei Industrial Park. After twenty years of development, it has become the leading manufacturer in apparel industry of washing equipment in domestic. We have attained strict CE and ISO9001 Quality Management System Certification and own import and export license.

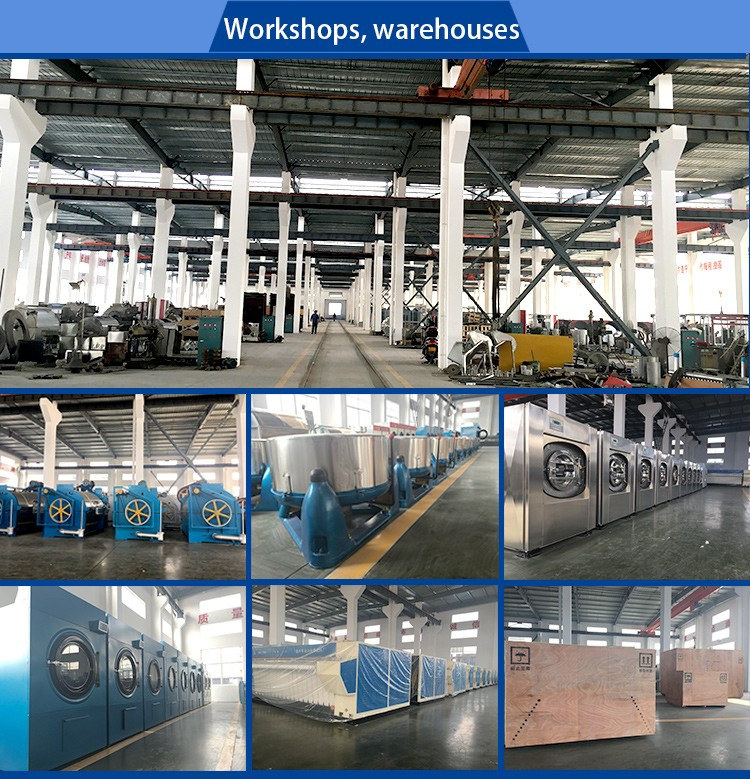

We have total factory space of approximately 26, 666 square meters with over 120 workers. We have complete processing devices including milling, shaping, boring, slotting, drilling, reaming and polishing, also possessing manufacturing procedures of flame cutting, hole piercing, cutting, pressing, bending and molding and large-scale spray painting equipment. All of these make Tongyang products rank the first class in regard of overall technology and manufacturing equipment.
