Prod Model: |
CTP010 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Tent Type: |
Pagoda |
Factory Address: |
Guangzhou City |
Tent Frame: |
High Pressed Extrued Aluminum Alloy GB 6061-T6 |
Roof Covers+Gable Covers: |
850g/Sqm Double PVC-Coated Polyest Fabric with Bla |
Side Walls: |
PVC Fabric, Glass Walls, ABS Walls, Hard PVC Wall |
Fabric Color: |
White/Clear/Silver/Orange/Black/Dark Green/Red/Blu |
Connectors + Base Plate: |
Hop-DIP Galvanized Steel, Thickness Over 60um |
Features: |
Water Proof/Flame Retardant/UV-Resistant/Self-Supp |
Flame Retardant: |
DIN4102 B1/M2/B1 |
Max. Wind Load: |
100km/H ( 0.5kn/Sqm ) |
Material: |
PVC |
Usage: |
Advertising Tent |
Pole Material: |
Flexible Poles,aluminium Alloys |
Structure: |
Single Skin |
Color: |
White |
Waterproof: |
Waterproof |
Customized: |
Customized |
Top Style: |
Pagoda |
Capacity: |
All Sizes Available |
Style: |
All Sizes Available |
Season: |
All Weather |
Product Description

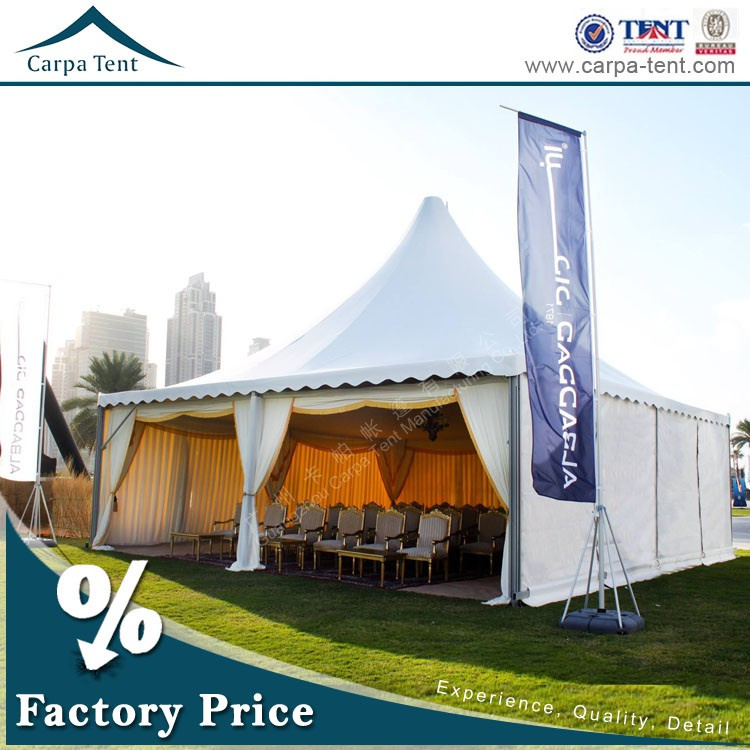

Large Wedding Decorated Marquee Pagodas 10mx10m With Banquet Chairs And Tables For Catering
Speed of Construction, Flexibility of Design, Lower Overall Costs

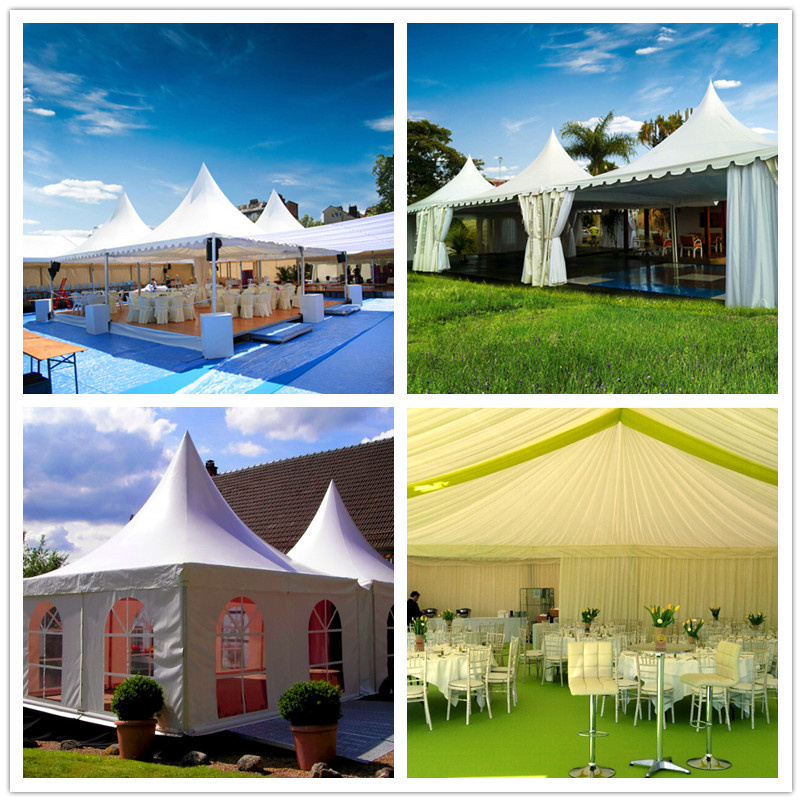

Main Pictures Of Pagodas
The Details Of Pagoda
Product Description
Pagoda tents manufactured in Carpa Tent, is the ultimate tents for any event with its elegant and easy assembly design, and there are massive optional accessories, including woodenflooring system,
glass walls, solid ABS walls, soft PVC sidewalls with clear windows, glass doors,door canopies,
rain gutters, roof linings and walls drapes, ramps, racks, etc.
Details Show
Tent Specification
Pagoda Tent Size |
Model | Width | Length | Longest components | Side height | Ridge height | Max. wind load |
CTP003 | 3m | 3m | 2.85m | 2.50m | 4.20m | 80km/h |
CTP004 | 4m | 4m | 3.85m | 2.50m | 4.80m | 80km/h |
CTP005 | 5m | 5m | 4.85m | 2.50m | 5.20m | 80km/h |
CTP006 | 6m | 6m | 5.85m | 2.50m | 5.80m | 80km/h |
CTP008 | 8m | 8m | 4.3m | 2.60m | 5.40m | 100km/h |
CTP0010 | 10m | 10m | 5.25m | 2.60m | 6.40m | 100km/h |
CTP0015 | 15m | 15 | 11.00m | 2.60m | 8.6 | 100km/h |

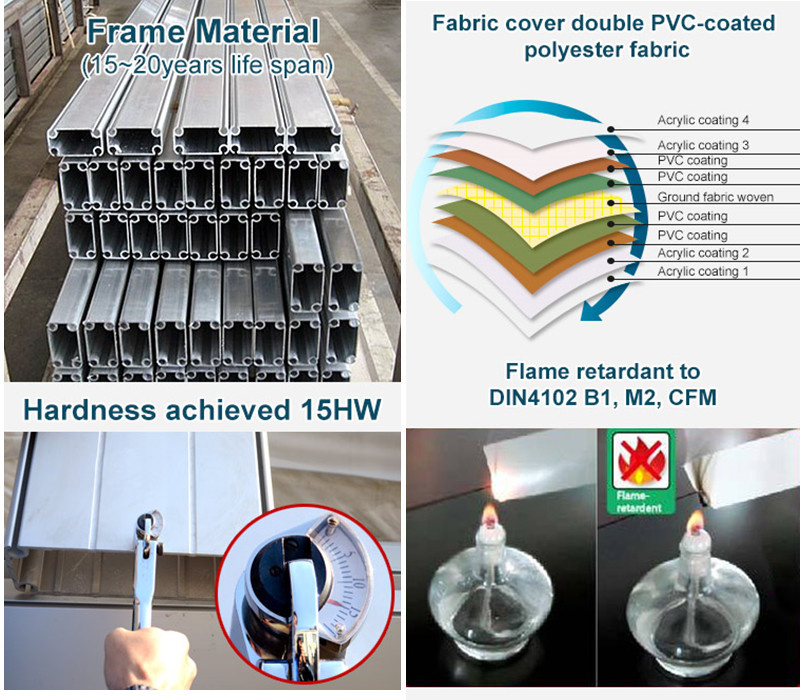

Materials Of Pagoda Tents
High quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
Our PVC fabric flame retardant according to German standard DIN4102 B1,M2 and USA standard CFM/NFPA 701.
Hard pressed extruded aluminum alloy, anodized surface handling, silver color, sturdy and never rust; over 15~20years life span.
Our aluminum alloy code 6061/T6,hardness achieved 15HW.The wind load capability is based on the aluminum hardness.
- Steel components: Hot-dip galvanized steel, thickness is over 60um.
Character & Feature
> 100% relocatable and unobstructed free span space;
> Very easy and very fast to install and dismantle, convenient to stock and transport
> Rainproof, fire retardant, UV-protection, can be environmentally controlled in any climate;
Tent Accessories
- Covers : colourful cover, transparent cover, inflatable roof cover
- Windows : dome or square clear PVC windows, mesh window, glass window for glass wall
- Wooden Flooring System: VIP cassette flooring, simple cassette flooring
- Doors : double wing glass door, single wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
- Wall : soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
- Fixing Methods: ground anchors, weight plate, expandable bolts
- Rain Gutters : inner roof beam rain gutter or rain gutter between two similar tents
- Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
Packing Details
- Tops and side walls packed in PVC carry bags.
- Glass walls, glass doors, ABS walls packed in transportation racks.
- All the aluminum frame packed in pearl film or clear film.
- All the little hardware parts packed in solid carton boxes.
Our Advantages
- Over 15-year experience in tent field for our Engineers, we are professional and you save worry and save trouble.
- All Carpa Tents are engineered to reduce operation and managing expenses, with superior energy efficiency, let you spend every penny worth.
- High quality material and accurate design makes tents durable, safe, and makes erection and disassembly easy and fast.
- We welcome your visiting to our factory before order, we feedback every producing progress after order, and we do careful inspection before shipment, and we welcome your on-site inspection.
We warmly welcome you come to visit our factory and check our sample tents.
Guangzhou Carpa Tent Manufacturing Co., Ltd is a professional manufacturer and exporter of aluminium framed clear-span structures, tents and marquees in China. Our structures are nearly for any purposes and according to your needs, we can supply different turnkey solutions, like wedding solution, event solution, party solution, exhibition solution, sports solution, warehousing solution, etc. And we have crowd shaped tents and marquees with various sizes options, A shaped tents, pagoda tents, gazebo tents, dome tents, curved tents, polygon tents, mixed tents, multi-sided tents, double deck tents, and custom designed tents, the width's rang is from 3m to 60m, the length unlimited, increased or decreased by 3m/5m bay distance.
All Carpa tents system are strictly designed and manufactured according to the European safety standard and quality control standard. The main framework adopts hard pressed extruded aluminium alloy, the tent covers use double PVC-coated polyester textile (650~1350G/M2, flame retardant to DIN 4102 B1, M2 ) and the tent connectors and base plates are made of hot-DIP galvanized steel insert. Better materials make a better tent structure, we make every effort to provide you with a high quality product.
Carpa Tents are manufactured in accurate design theory with 20-year experience practice, and we execute and follow up the entire design and manufacturing process in-house, which leads to no defects, and rapid construction time. And our tents are engineered to reduce operating and managing expenses, with superior energy efficiency, which makes lower ongoing cost. When you choose to work with Carpa Tent, you are choosing the most cost-effective tent company in China (our tents delivery a combination of excellent quality and good pricing).
Carpa Tent is the ideal Tent sales partner for tent rental companies, party and event planners, aviation companies, government, army and other organizations.
