Shenchuan(Shanghai)Heavy Industrial Machinery Co., Ltd. >> Jeakue 800kg Four-Scissors Immovable New Electric Lift Table

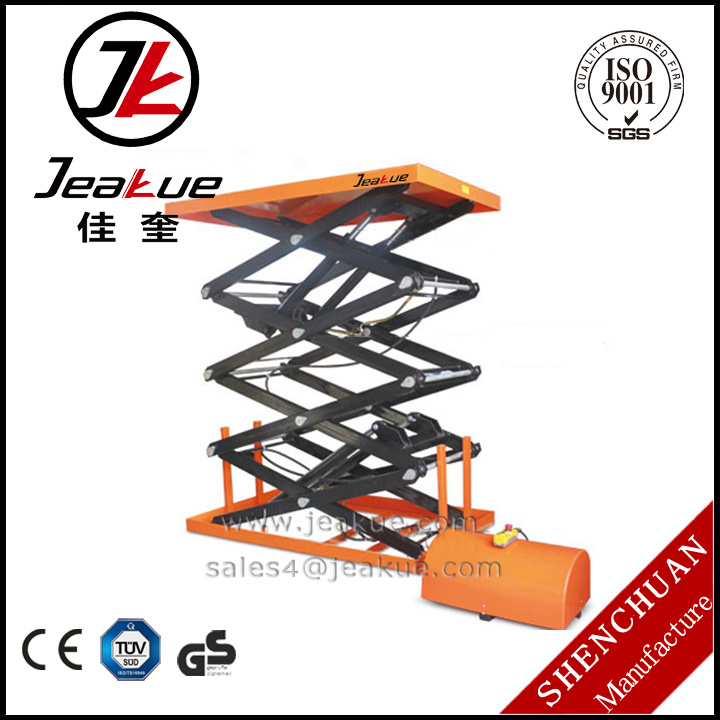

Jeakue 800kg Four-Scissors Immovable New Electric Lift Table

Jeakue 800kg Four-Scissors Immovable New Electric Lift Table
Price: US $ 1000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: JK
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Min. Height: 700mm
Max Height: 4210mm
Rated Load: 800 Kg
Conditon: New
Warranty: 1 Year
Delivery Detail: Within 30 Days After Advance Payment.Manual Mechan
Advantage: Practical, Convenient
Color: Yellow, Red
Application: Building Crane
Carrying Capacity: Weight Level
Driven Type: Hydraulic
Running Mode: Stationary
Feature: Insulating

Product Description

800kg Four-scissor Immovable Electric Lift Table
Model JK01441JK01442
 Rated Loading Capacitykg400800
 Min.Lifting Heightmm600700
 Max.Lifting Heightmm41404210
(L*W) Platform Size(L*W)mm1700*10001700*1000
(L*W) Base Size(L*W)mm1600*10001600*1000
 Lifting times40-5050-75
 Fall Times45-5555-75
 Power Components 380V/50HZ.AC.1.1KW380V/50HZ.AC.1.5KW
 Net Weightkg548858

1.Product Details :

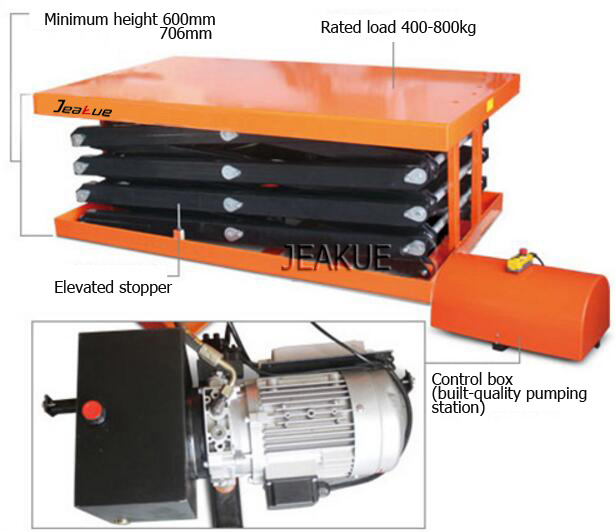

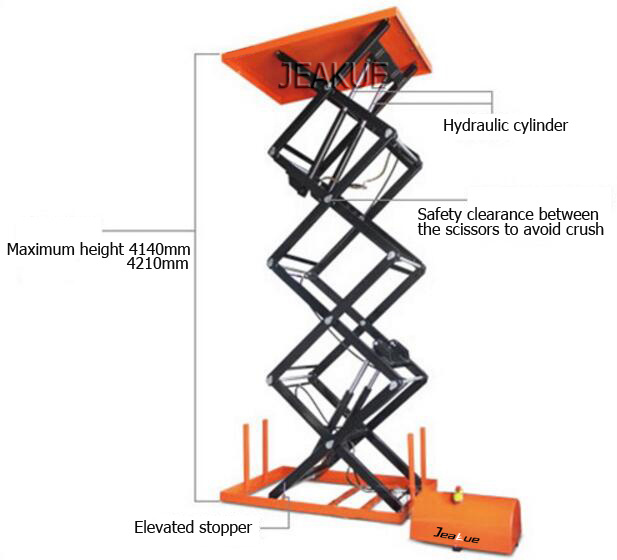

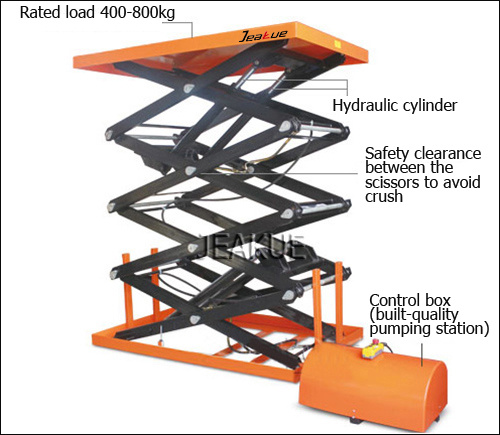

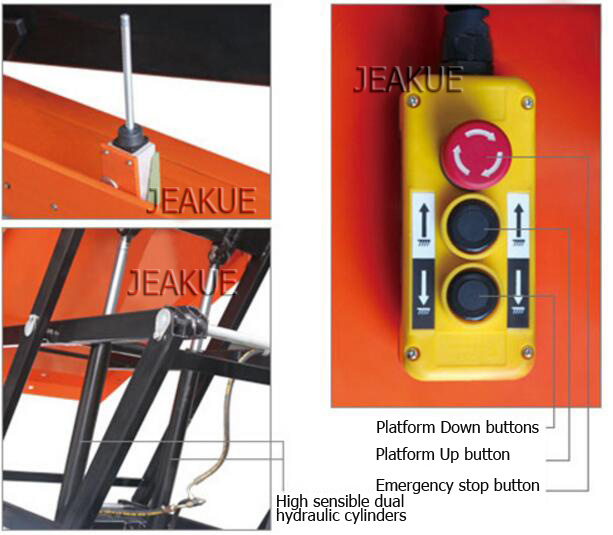

800kg Four-Scissor Immovable Electric Lift Table
800kg Four-Scissor Immovable Electric Lift Table800kg Four-Scissor Immovable Electric Lift Table800kg Four-Scissor Immovable Electric Lift Table

2.Company information:
Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the  past 10 years, we have been always adhering to the idea of "all service to meet customers' needs", breaking
 through technology, manufacturing the finest products, improving service with our globalization vision.

We have developed a variety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ABB, ZF, BOSCH, CAT, TEREX, and a variety of sophisticated
 products with independent intellectual property patents together with well-known Chinese universities in the area of
 machinery, electronics, physical mechanics etc.



3.Quality Certification:

CE,CQC,ISO9001,UL



4.Packing details

International Standard Packaging/ Three Wheels Driving Forklift



5.After-sales Service Provided

Engineers available to service machinery overseas



6.Delivery Details

Within 7 Days



7.Products Instruction:


Dynamical System :


The maturely disposed,powerful but economical Xinchai490,495,498BPG diesel engine and
WF491GP gasoline engine meet the demand for noise and discharge.C240,4TNE92,4TNV94L,4TNE98 diesel and
K21,K25,4G64 gasoline engine are for option. As for the transmission,with TCM technology ,function is reliable./
Counterbalanced Diesel Forklift


Hydraulic System:


1.Hydraulic System rationally adopts supple and stiff tubes to reduce pressure loss,accelerating the lift of mast. Hydraulic
 units employ the seal units imported from Japan and passing thousand of tests.
2.Heat Dissipation System:
3.Newly adopted advanced radiator improves the radiator cooling performance greatly .Advanced heat dissipation
technology improves heat dissipation channel,which enhances the truck heat dissipation capability further./ Counterbalanced
 Diesel Forklift


Electrical System:

Electric system adopts advanced wiring harness,waterproof parts and widespread multirun use to improve the circuits
security and stability.Without tool,the circuit integration can be maintained just by hand.



Comfort:

H series adopts advanced man-machine engineering design,including the engine collocated with floating shock-mitigating device ,the elastic linked steering axle,the redirector providing low tensional moment,the semi-floating bonnet with
built-in heat and sound insulation,and built-in cylinder design.All of those ensure the comfort of driving for this diesel forklit.


Clean:

The domestic engines all meet EPA emission control regulation.The imported engines come up to EU stage-3 emission
control regulation,and obtain EPA accreditation.
Efficiency:
Based on the safe principle,the high lifting speed of the mast improves working efficiency .Turing radius and width of right
angle stacking aisle are decreased through reducing the dimension of the whole truck,which raise the efficiency of storehouse,
and enable the truck to operate in limited space.



Safe:

A throttling device is set in pipe system,so the mast won't result in failing to control even some pipes broke. By using wide
vision design, the scope of the operator's vision has been greatly improved ,so as to make the operation faster and safer.





8.Contact Information:
Shenchuan(Shanghai) Heavy Industrial Machinery Co.,Ltd
Betty Tan

Shenchuan (Shanghai) Heavy  Industrial  Machinery  Co,Ltd
 Adr 1: (Shanghai Headquarters):Tiannashanghui Mansion, No.500 Jianyun Road, Pudong New District, Shanghai City, P.R.China.
Adr 2: (Hefei Branch): 2216 Room,Tower A Fushi Square,No.4Suzhou Road,Luyang District,Hefei,Anhui. P.R China.

Tel: +86-551-62844001        Mobile No.:+86-13083307326
Web: www.Jeakue.com

Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. Has been always adhering to the idea of "all service to meet customers' needs", breaking through technology, manufacturing the finest products, improving service with our globalization vision.

We have developed a variety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ZF, BOSCH, CAT, TEREX, and a variety of sophisticated products with independent intellectual property patents together with well-known Chinese universities in the area of machinery, electronics, physical mechanics etc.

Shenchuan Heavy Industrial has become one-stop storage and logistics solution leader and the most powerful supplier of material handling integrated systems. We have five divisions: Logistics Systems Division (sub-brand JEAKUE); Engineering Machinery Division (sub-brand JEADE); Agricultural Machinery Division (sub-brands JEATN); Construction Machinery Division (sub-brands JEADA); Mining Machinery Division (sub-brand JEAYO).

We will provide comprehensive and multidimensional supply chain service for global customers with our most optimized scheme, best quality products, most attentive service and most competitive price, to reduce the maximum supply chain cost for customers and increase the production efficiency.
