| Prod Model: |
HFC1061 |
| Overall Dimension: |
7440*2320*2300mm |
| Wheelbase: |
3815 mm |
| Engine Power: |
108HP |
| Tires: |
7.00-16 |
| Maximum Lifting Of Quality(Kg): |
4000 |
| Effective Length (mm): |
1700 |
| Telescopic Crane Travel(mm): |
1600 |
| Rated Traction Winch(Kg): |
3500 |
| The Rated Supporting Lead Quality(Kg): |
5790 |
| The Length Of Wire Rope(M): |
25 |
| Emission Standard: |
Euro 4 |
| Towing Tonnage: |
5T |
| Certification: |
CE |
| Engine Type: |
4 Stroke |
| Fuel: |
Diesel |
| Condition: |
New |
| Brand: |
JAC |
Product Description

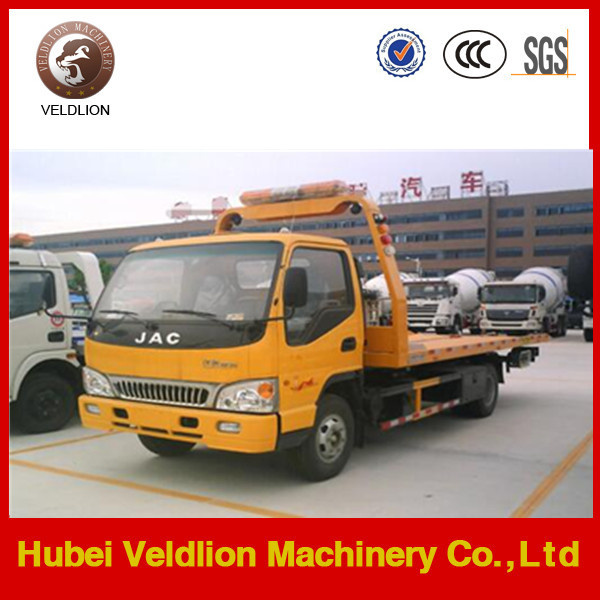

JAC 4X2 Wrecker Recovery Truck
1.Quick details:
1) Maximum lifting of quality(kg): 4000
2) The rated supporting lead quality(kg):5790
3)The length of wire rope(m):25
2.Main specification of JAC 4X2 Wrecker Recovery Truck
| Products Technical Specification |
| Type | 4*2 Flatbed Wrecker Truck |
| Brand | JAC |
| Cab | Single row |
| Vehicle Description |
| Overall dimensions(mm) | 7150*2300*2400 |
| G.V.W (kg) | 6215 |
| Curb weight(vehicle) (kg) | 4800 |
| Loading capacity (kg) | 3000 |
| Max speed (Km/h) | 95 |
| Engine Description |
| Engine model | CY4102-C3D |
| Maximum power | 80kw/108hp |
| Displacement (lit) | 3856 |
| Engine Manufacturer | Chaochai Diesel Manufacture |
| Chassis Description |
| Chassis Model | HFC1061K93 |
| Wheel base(mm) | 3815 |
| F/R track base(mm) | 1680/1535 |
| F/R overhang(mm) | 1160/2420 |
| Spring plate | 3/5+3 |
| Front axle / rear axle(t) | 2/4 |
| Type of fuel | Diesel |
| Brake system | Air braking |
| Operation control system | Power Steering |
| Electric system | 24V |
| Tyres&Tire quantity | 7.50-16 & 6+1 |
| Special performance&Equipment |
Payload 3000kg
Rated Pull Force of Winch 40 KN
Min. Inclination Angle 12°
UNDER-LIFT
Max. lift weight (retracted) 1600kg
Max. lift weight (extended) 1100 kg
Rated towing capacity 6400kg |
3. We could accept design ,developments and production of tanker truck :
1) Brand of chassis: could choose Dongfeng ,Foton ,JMC,JAC,Sinotruk,Shacman,FAW,ISUZU and so on ;
2)Drive type :4x2,4x4,6x4,6x6,8x4 and so on ;
3)Left hand drive or right hand drive
4)The flatbed tow truck is made of chassis, winch, wheel under lift equipment, hydraulic system, electric control system, truck body and the tool boxes. The road wrecker can hoist, lift, draw and be with other special functions, mainly used in highway and city road obstacle cleaning
5)Our flatbed tow truck who is also called one tow two wrecker truck can also deal with 2 sets of accident vehicles, upper back down tow, and mainly used within 3 tons of cars. Equipped with 4T lift equipment, bind belt, auxiliary wheel, J type of hook, winch, electronic lamp, 20M steel wire, megaphone, etc
4.Our warranty
1, one year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3, Regularly callback to know the vehicle's working status.
4, The overseas engineers are always ready to deal with unexpected needs.
5.Other services:
1. All trucks and trailers are new and be customized to meet all your requirement.
2. All trucks and trailers are with 12 months quality guarantee.
3. CKD and SKD are available.
4. Technical support are provided.
6.Packing & Shipping
1), Naked or waxed.
2), Delivery time: 30 days after receiving payment in advance.
3.) By RORO or Bulk ship.
7.FAQ
Q: What is your payment term?
A: We accept payment by T/T, L/C.
Q: How many trucks do you sell in 1 year?
A: Almost 2000sets
Q: Is your factory a manufacturer or trading company?
A: We are the manufacturer, we are the biggest special trucks factory in China special truck base.
8.Company Information
Our company is appointed by Ministry of Industry and Information Technology of China, We are a Professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks.
Our company cooperates with famous chassis manufactureer, such as DONGFENG, FAW, SINOTRUK, JAC, SHACMAN, FOTON and etc.
Creat value for customer is our sole . All of the trucks and semi-trailer sell to Africa, South-east Aisa, Australia, Middle-east and other place. They mainly from below country: Angola, Algeria, Kenya, Nigeria, Rwanda, Sudan, Zambia, Libya, Congo, Indonesia, Malaysia, Philippines, Vietnam, Turkey, Yemen, Syria.
We also provide products as follows:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
9.Contact Information
Sale Manager: Lotus wong
Tel/Fax: 0086-27-87585969
Mobile: +0086-135 5436 0907
HUBEI VELDLION MACHINERY Co., Ltd, is a high-tech enterprise approved by the Chinese government, specializing in the production of a variety of special-purpose vehicles. Our company possess legal import and export license and occupy large scales of foreign markets. The main productions of our company include more than 100 types of trucks, such as: Sprinkler Truck, Fecal suction truck, Garbage truck, Refuse compactor, Sewage suction truck, Fuel tank, High-altitude operation truck, Truck with crane, Dump truck, Instructional truck, Van truck, Semi-trailer, Fire engine, Spares, Refrigerator truck, Water wagon, Tractor, High-altitude water truck, Bulk cement truck, Chemical liquid truck, Concrete mixer truck, ect.
Our company VELDLION has strong technical force, professional QC process, advanced production equipment, stable product quality, and flexible operation modes. What's more, Production lines has roundly passed the ISO9001-2000 quality management system certification and the 3C(China Compulsory Certification).
Good quality and business reputation is guarantee of our success. We will do as we can that treating customers honestly, managing flexibly, guaranteeing high quality but low price, and keeping high efficiency.
We promise that all our products, will enjoy one year quality guarantee (for repair, replacement or compensation of faulty products) and free technical services lifetime.
Look forward to cooperate with you! Let's join hands and create a better tomorrow!
