| Prod Model: |
TN-901 |
| Packing: |
Assembled or Dis-Assembled |
| Logo: |
Silk Print, Aluminum Sticker, Rubber Sticker |
| Material: |
SPCC Cold Rolled Steel or Eg Steel |
| Color: |
Ral9004, Ral7044, Ral7039 etc |
| Static Loading: |
Over 800kgs |
| Type: |
Server Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Vertical |
| Certification: |
GS |
| Condition: |
New |
| Fan Number: |
2 or 3 or 4 |
| Capacity: |
6u~47u |
Product Description

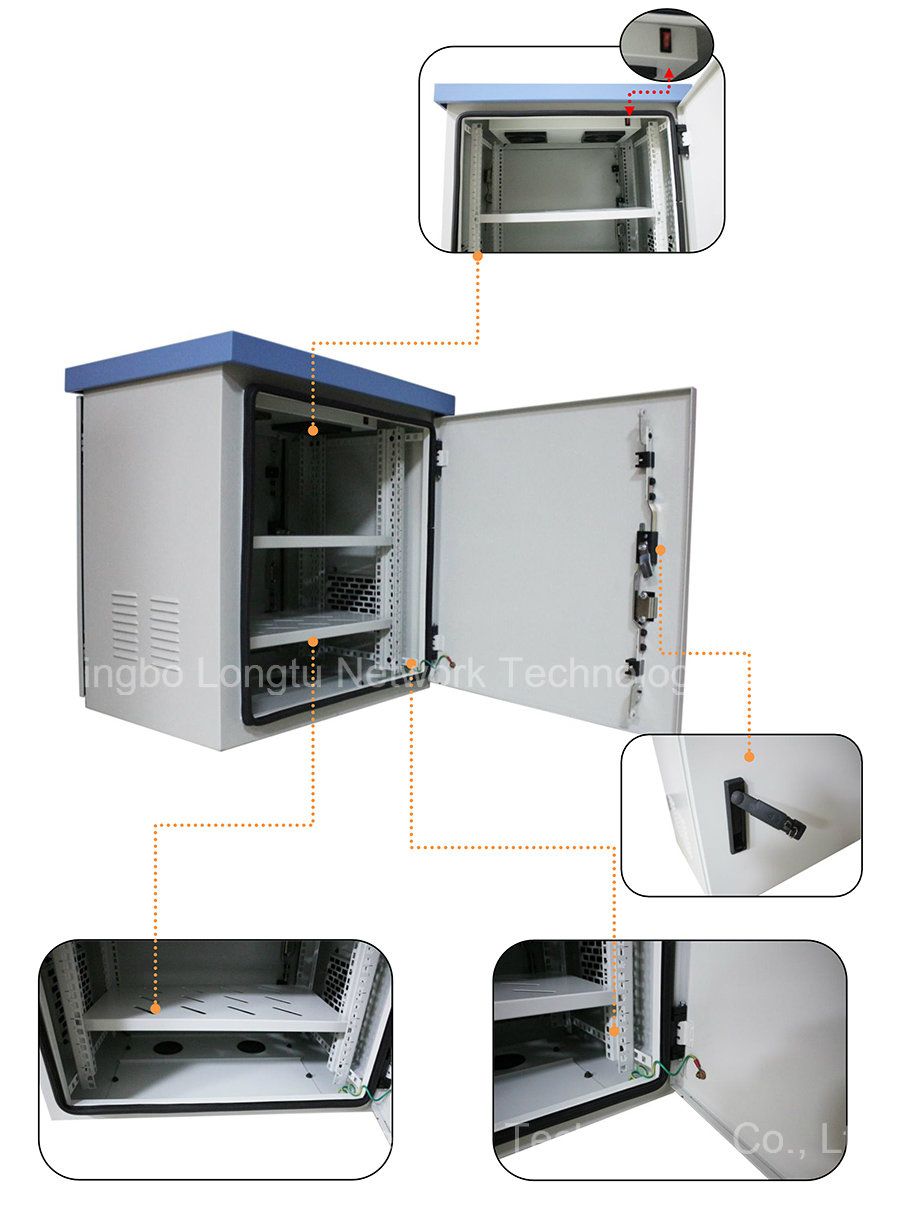

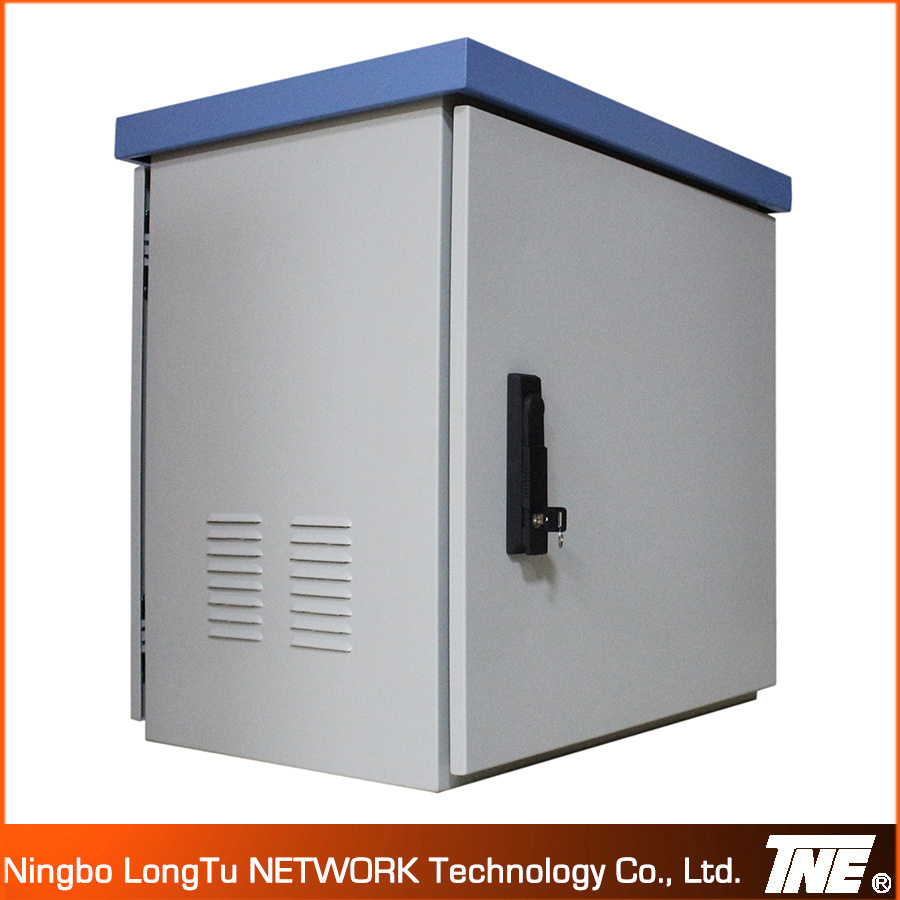

IP55 19′′ Outdoor Cabinets for Telecommunication
Description - 19 inch street cabinet,outdoor application
- Reliable 19" international structure, Double wall type
- Outdoor floor standing or fixed on poles
- Front single solid metal door with handle lock
- Enhance door hinges with 130 degrees operation angle
- Rear single solid metal panel
- Top with 2/8 fans for airflow&cooling, fan size: 120*120*38 mm
- Several lockable wiring holes on top/bottom, size of the large hole at the bottom adjustable
- Varies specification upon customers' special requirements
- with 1 pc of lighting system,smoke alarm,temperature sensor
Width: 600,800 mm
Depth: 600,800mm
Height: 6U,9U,12U, 15U, 18U,22U, 27U, 32U, 37U, 42U, 47U - Customized size is available
- Flexible packing methods allows for convenient stocking and end user delivery.
Standard and Material:
Comply with ANSI/EIA,RS-310-D;IEC297 2;DIN41491:PART1;DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
Surface Finish:
Degrease, acid pickling, rust prevention and parkerizing,pure water cleaning, static electricity powder coating
Material:
SPCC cold rolled steel or Zink-plated panel or stainless steel
Thickness:
Mounting profile:2.0mm,others: 1.50mm
IP degree:
IP-55
Color:Body color:
RAL5012(Top cover and base);RAL7035(The others)
NO. |
Item |
600 wide |
800wide |
Materials |
Treatment |
Note |
1 |
Frame |
2 |
2 |
1.5mm SPCC steel |
Powder coating |
|
2 |
Front Door |
1 |
1 |
solid metal |
\ |
double wall type |
3 |
Side Door |
0 |
0 |
\ |
\ |
|
4 |
Back Door |
1 |
1 |
solid metal |
\ |
double wall type |
5 |
Lock |
2 |
2 |
\ |
\ |
Handle Lock |
6 |
Top cover |
1 |
1 |
1.5mm SPCC steel |
Powder coating |
|
7 |
Rear door panel |
1 |
1 |
1.5mm SPCC steel |
Powder coating |
|
8 |
Fan unit |
1 |
1 |
1.2mm SPCC steel |
Powder coating |
|
9 |
Ac fan |
2-8 |
2-8 |
\ |
\ |
D>800,6-8pcs |
10 |
Bottom panel |
1 |
1 |
SPCC T=2.0 |
Powder coating |
|
11 |
Earthing bolts |
1 |
1 |
SPCC T=1.5 |
\ |
25 cm |
12 |
Castors tray |
\ |
\ |
SPCC T=2.5 |
Powder coating |
|
13 |
Castors |
\ |
\ |
\ |
\ |
|
14 |
Ajustable feet |
\ |
\ |
\ |
\ |
|
15 |
Mounting angle |
2 |
2 |
SPCC T=1.5 |
Powder coating |
|
16 |
19inch rails |
4 |
4 |
SPCC T=2.0 |
Powder coating |
|
17 |
Cable management |
\ |
2 |
SPCC T=1.5 |
Powder coating |
Only for 800 W |
Optional Accessory- Fixed/cantilever shelf, sliding shelf, for 600mm, 800mm, 900mm, 1000mm depth cabinet
- 19'' keyboard frame (350mm, 550mm, 650mm, 730mm)
- 1U, 2U support board
- Vertical Cable manager
- 19'' Power distribution unit(PDU)
- 19'' Blanking plate 1U, 2U, 4U
- Heavy duty castor, Heavy duty castor with braker
- Optional lock for side panels
- Earth kit
And so on...
