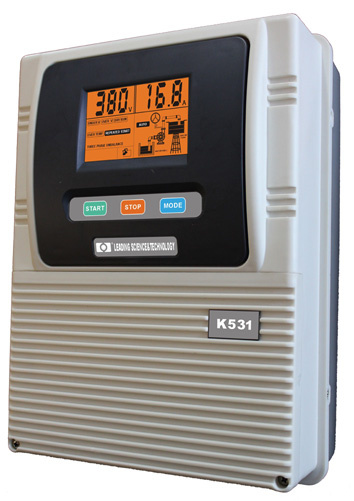

Intelligent Pump Control Cabinet K531
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
K531 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
From 0.75kw to 30kw (1HP-40HP) |
| Task: |
Program |
| Structure: |
Closed-Loop |
| Mathematical Model: |
Linear |
| Signal: |
Continuous |
| Function: |
Automatic Control |
| Certification: |
CE |
| Condition: |
New |
| Customized: |
Non-Customized |
| Material: |
Plastic |
Product Description
Intelligent Pump Controller model K531 is an easy to use, programmable controlling & protection device for direct start, three phase deep well submersible pump, centrifugal pump, pipeline pump etc with output power from 0.75KW to 30KW (1HP-40HP)
Model K531 has many operation modes by adopting different electric installations. An important feature that makes the difference between Model K531 and common On/Off pump control box is the probe / sensor free in the well. Our special design makes it a very reliable and sensitive protection against pump dry run without installation probe / sensor in the well.
Product application
Model K531 is useful in all cases we need to control and protect single pump managing its turn-on and turn off by different electric installations.
Typical usage scenarios include:
Houses
Flats
Holidays houses
Farms
Water supply from wells
Irrigations of greenhouses, gardens, agriculture
Rain water reuse
Industrial plants
Waste water tank / Sewage sink
Main features
. Built in pressure control or liquid level control switch:
Applied for water supply by liquid level control through float switch or liquid probe
Applied for water supply by pressure control through pressure switch and pressure tank
Applied for drainage by liquid level control through float switch or liquid probe
. Computer main board and module for industrial & civil pump
. Automatic stops the pump in the case of water shortage, protecting it from dry running without installing float switch or liquid probe in the well
. Auto / Manual switch
. Transient surge protection
. Over current (over load) protection
. Open phase protection
. Under voltage protection
. Over voltage protection
. Pump motor stalled protection
. Digital voltmeter/ampere meter real-time display
. Light alarm signals of malfunction
. Push button calibration
. Light signals prompt for uncompleted parameter calibrating
. Starts and stops the pump in accordance with the different liquid level
. Present liquid-level probe
. Pump accumulative running time displaying
. Pump last five fault record displaying
. User-friendly connection diagrams
. Water proof iron cabinet
Hunan Leading Science & Technology Development Co., Ltd is the professional manufacturer of intelligent pump control system applied for monitoring and protecting of pumps in home and industry use;
Leading Science & Technology has always been a leader in the production, research & development of intelligent pump control system and relative pump control products. Million of our prime products have been sold on the market for stable quality and reasonable price.
Leading Science & Technology has established stable relations with many pump producers and distributors from China and overseas.
Till now, Leading Science & Technology we have passed CE, ISO9001: 2008 certificate.
