Injection Liquid Silicone Rubber for Artificial Resin Jewelry Mold Making
| Price: |
US $ 8.9-13.55kilogram |
| Min Order: |
200kilogram |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
MJ2235 injection silicone rubber |
| Color: |
Translucent |
| Feature: |
Liquid |
| Sample: |
Available |
| Purity: |
100% |
| Certifications: |
RoHS, MSDS, SGS, ISO9001:2000 |
| Minimum Order Quantity: |
200 Kilogram |
| Brand Name: |
Hong Ye Silicone Rubber |
| Place Of Origin: |
Guangdong China |
| Application: |
Silicone Rubber for Mold Making |
| Material: |
Silicone Rubber |
| Appearance: |
Liquid |
Product Description
injection liquid silicone rubber for artificial resin jewelry mold making
Advantages of injection liquid silicone rubber :
* can be cured even with large molds
* High temperature resistance ,can reach to 300-500C ,
* Food Grade with FDA certificate
* High tear strength and tensile strength ,and large reproduction times
* Heat Temperature cured , Easy operated
Applications of injection liquid silicone rubber:
1. Applied for the molds making for Jewelry, such as zircon imitation, imitation precious stones, resin diamond, crystal facets drilling, drilling and drilling simulation class mold making
2. silicone products making,precision auto, models, mechanical parts and other products manufacturing model
3. furniture industry and the electronics industry mold the production of manufactured products
Datasheet of our injection liquid silicone rubber:
Model | Color | Mixing ratio (%) | Pot life | Conditions of vulcanization | Hardness ( Shore A ) | Tensile- strength (MPa) | Tear- strength (kN/m) | Viscosity (After A/B mixed ,mPa.s) | Shrinkage rate (%) | Elongation (%) |
MJ-2235 | high Transparent | 1:1 or 10:1 | >2-3hrs | 100-120ºC /30mins | 35±2 | ≥5.2 | ≥20 | 70000 | ≤0.1% | ≥320% |
Operation instruction of silicone rubber :
1. Pls clear the model and tool totally before operation to prevent cure inhibition.
2.Weigh the two part correctly by electronic weight in two separate container .
3. Mixing the two part in 1:1/10:1 and stir part A and part B evenly in 2-3 minutes .
4.And get the mixture for vacuum-pumping for de-air the bubble in around 2-3
minutes . (If there is no vacuum machine, pls pour the mixture carefully and slowly
down the side of the mold frame so that less bubbles caused)
5. Enclose the product (the original model) with four plastic plates or wooden plates.
6. Clean your products and brush a layer of release agent(detergent or soap water) on
your product.
7. Pour the vacuumed mixture into the model frame from the side of the mold frame .

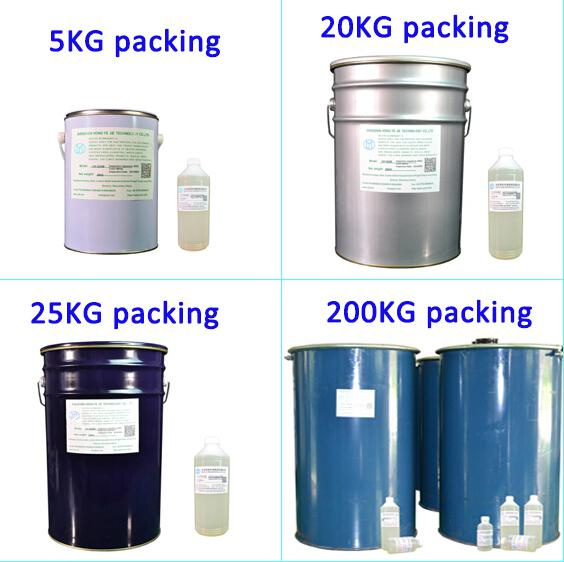

Package
More information , pls feel free to contact Mr Frank:
Mob:+8618938867580
We are manufacturer spcializing in silicon rubber material, such as silicone gel, pad printing silicon, RTV-2 silicone rubber, HTV, RTV-2 room temperature sulfurated silicon rubber, silicon, shoe molding silicon, silicon rubber, manul molding silicon, liquid silicon rubber, LSR, pad printing silicone rubber, mixed iron-smelting silicon rubber, solid silicone rubber, methyl-ethenyl silicone rubber, molding silicone rubber, mold duplicating rubber for resin craft makers, special silicon for manual molding, shoe mold rubber, pad printing silicon, silicon oil, 107 base, DMC etc. For plastic toys factories. With a product line of tens of categories, we can offer quick copying with precise contraction ratio (up to two thousandth) for mold making. To reach the internationally leading quality standard with competitive price is our best ambition that merits your trust.
RTV-2 Mold making silicone rubber
[1] RTV-2 silicone rubber for mold making
RTV-2 molding silicone rubber mainly applicable to make the silicone mould for cultural relic duplication, architectural decoration, resin crafts, lighting ornaments, candles, statues, model design, product exploitation, etc.
[2 ]RTV-2 silicone rubber for pad printing
Pad printing silicon rubber is specially designed for silicon pads which requires to be exquisite, without impurity or granules. Silicon pad is a carrier which transfer printing the patterns on the steel plate onto the toy products' Surface. Pad printing silicone rubber is mainly used for printing irregular patterns of plastic toys, electroplating products, electronic toys, trademarks.
[3] RTV-2 manual mold silicon rubber
RTV-2 manual mold silicon rubber is mainly applied in manual mold design, PVC plastic mould, cement product mould, melting-point alloy mould, alloy toy crafts, plastic toy, craftwork, gift and stationery, big statue, cultural relic duplication, shoe sole mould production, pad printing orientation, electronic appliances vibration resistance, etc.
[4] HTV-2 Silicone rubber
HTV-2 silicone rubber is applied in metal crafts, hot stamping silicone roller, hot stamping silicone plate, mobile phone keycap, PC keycap, telephone keycap, TV remote control keycap, electronic products, silicone rubber products field, etc.
[5] Disc silicone rubber
Disc silicone rubber is mainly applicable to zinc aluminum alloy arts and crafts, imitation of gold and silver ornaments, fishing tools, bracelets, hanging ornaments, furniture fittings, decoration accessories, toys and gifts, etc.
