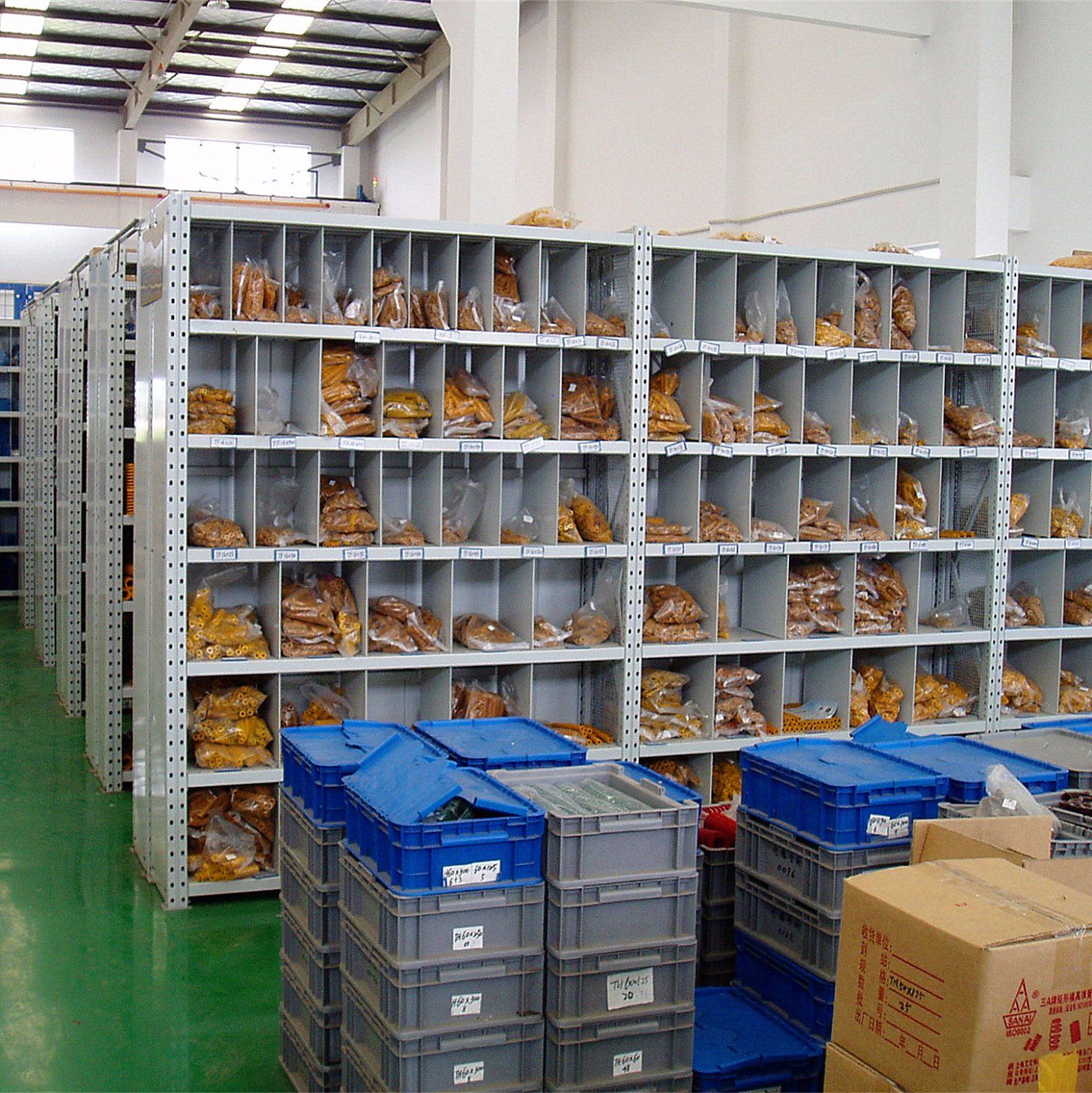

Industrial Storage Warehouse Light Duty Boltless Shelving

Industrial Storage Warehouse Light Duty Boltless Shelving
Price: US $ 1080-1160/Ton
Min Order: 10/Ton
Pay Type: L/C,T/T
Prod Model: LS 60
Shelf/Bin Depth: 400mm-600mm
Shelf Height: 30mm
Dividers: Available
Back And Side Cladding: Optional
Material: Steel
Structure: Shelf
Mobility: Adjustable
Height: 0-5m
Closed: Semi-closed
Development: Conventional
Serviceability: Common Use
Weight: 0-150kg

Product Description

1.    Product Description:
The light duty boltless shelving is suitable for the storage of manual hand pick small items, containers and transport containers. The shelving can be arranged in single run or double back-to-back, walkway width is approximately 900-1100mm(W). Each level of light duty shelves can take the load from 50kg-200kg. it is widely used in warehouses, distribution center, parts store and production line. It is easily adjusted without using special tool.

2.  Basic components
 Upright:
The upright is around 55-65mm width, which has the similar structure with pallet rack frames. Horizontal and diagonal braces are fitted to the lower and upper part to ensure frame rigidity. Bolted base plates are fitted to each frame, dependent on designed capacity.

Steel shelves
Cold rolled steel sheets are used to make the steel shelves. Normally the material thickness can be 0.7mm-1.0mm for SPCC. Underneath the shelves, reinforced bars are spot welded to offer more loading capacity. The shelves can be connectoed to the upright via adaptors/hooks.

The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.
The standard colors are  RAL 5015 (=blue) and RAL 7035 (=light gray). Shleves can also be galvanized finishing. Special colors are available on request.


3. The main components are uprights and shelves. Optional accessories can be applied such as side and back cladding, solid or mesh cladding. dividers, plastic bins, etc. The standard specifications are as follows:

Recomended Standard size for Light shelving:
Frame Height
(mm)
    Shelf Clear Width
(mm)
  Frame Depth (mm)
18001000
1300
400
500
600
800
1000
2000
2200
2400
2500


4. Advantages and Key benefits·
         Complies with international norms and regulations
·        Wide range of basic components for storage of all pallet sizes and weights.
·        Many standard accessories to meet every storage need you can imagine
·        Computer aided design ensuring the best solution for every application, including static calculations
·        Rigid and stable construction
·        High quality of finish
·        Easy and quick installation
·        Mass volume production to offer very cost effective products


5. RFQ documents:  Before you send us your Requirement For Quotation, please prepare the following information:
Warehouse layout CAD drawings if available.
Carton box size, width, depth and height.
Loading weight per box.
Clear height of the warehouse
Required line items to be stored.
Your intra logistic flow within the warehouse.
mateail handling equipment informaiton such as picking trolley, mobile ladders, etc.

6. FAQ
Q: What is the trade commercial terms?
1) Payment terms: T/T 35% deposit with order confirmed, 65% balance paid against bill of lading. L/C is available as well.
2) Lead time: normally in 25-30 days after down payment received.
3) Sample policy: We can offer samples within 10-15 days once payment received. Samples are usually available for standard model. For special specs, an order need to be placed..
4) Shipping port: Shanghai, China.
5) Discounts: we offer good discount for large volume.

Q: How I can deliver my goods?
We can offer FOB Shanghai, or CIF terms.
1) Sea freight: we can update the sea freight once we know your sea port.
2) Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.

Q: What's the procedure of trading?
Design racking layout proposal →Confirm layout drawing→ Offer Quotation→ PI →Confirm PI →Arrange 35% deposit→ Manufacture→ QC inspect→ Pay balance→ Shipping

Q: What's your competitive advantage?
1) Professional in racking solution proposal and special rack design.
2) Quick Lead time: for rush order we can deliver fast.
3) Factory price: factory direct sale competitive price.
4) Warranty: Two years warranty. Free offer of the broken parts during warranty period.

Q: Do you have MOQ (minimum order quantity) limitation?
A: No. You can order small quantity as well. However, large quantity always have better price. We recommend the order quantity for regular products at least one 20ft. container, which is about 15 tons.



Shanghai Calin Logistic Equipment Co. Ltd. Is one of the professional suppliers for storage and logistic equipment with the specialty of racking design, manufacturing, sales and services. The company is located in Changning District, Shanghai. Our main business is to provide racking systems for the storage of palletized or small goods and longer items.

The company's Motto is Credibility, Specialty, Innovation and Win-win. Calin provide storage solutions to improve the warehouse usage and logistic efficiency, which creates value for the clients, this is also the mission for the company development.

There are two racking manufacturing plants in Kunshan and Zhenjiang, Jiangsu province, covering the total area of 20, 000 M2 with 150 employees. The factory is equipped with high precision roll forming machine, cold formed and sheet cutting, metal structural components welding and automatic epoxy painting line. The factory has been awarded ISO9001 since 2007. The experienced sales engineers and designers are able to provide "tailor-made" proposals for the clients, so as to provide rapid and most suitable storage solutions.

Our main products are conventional pallet racking, compact storage systems (Mobile pallet rack and Pallet shuttle system), Long span shelving systems and ASRS racking systems total integration. The products are widely used in food industry, auto parts storage, e-commerce logistics, manufacture industry, pharmaceutical, commercial distribution, etc. Our clients include FAW, BMW, Amazon, Siemens, Philips, Emerson, and also include many local developing private companies, as well as the products exported to South East Asia, Middle East, Australia and Europe, etc.
