| Prod Model: |
XGQ-15F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Hotel, School |
| Capacity: |
15kg |
| Drum Diameter: |
1200mm |
| Drum Depth: |
890mm |
| Volume Load Ratio: |
>10L/Kg |
| Washing Speed: |
50rpm |
| Medium Spin: |
450rpm |
| High Spin: |
780rpm |
| Motor Rating: |
2.2kw |
| Machine Weight: |
700kg |
| Washing Capacity: |
15kg |
| Brand: |
Baiqiang |
Product Description

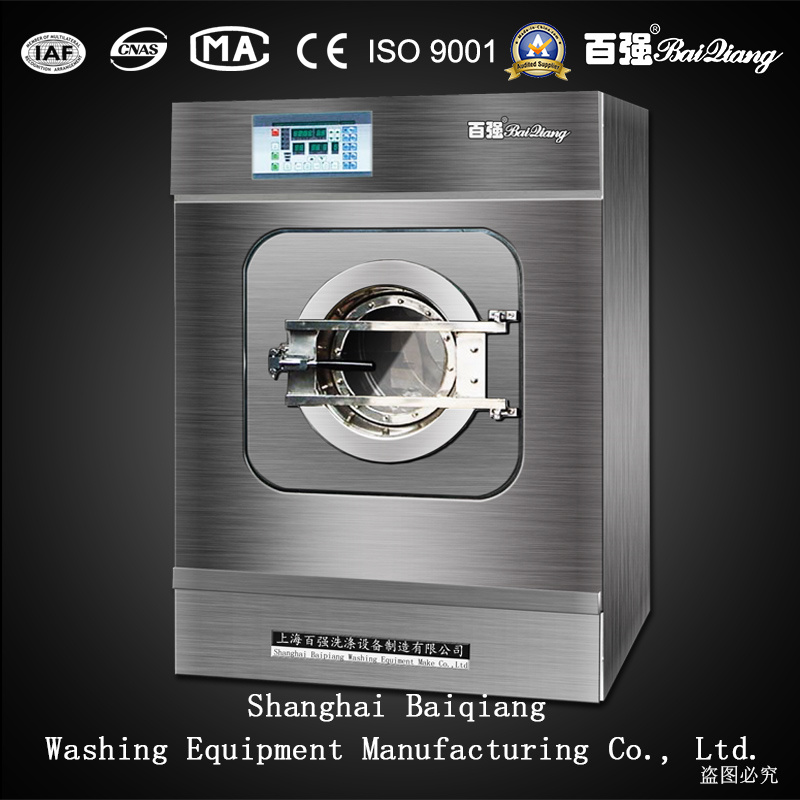

15kg Industrial Converting Washer Extractor
1. Features
Fully Automatic
Multiple Functions
CE Approved
Microcomputer Control
Over 30 Procedures
High Grade Damping Device
International-brand Bearing
Stainless Steel Material
Acid&Corrosion Resistance
Standard Capacity
350G-Force High Extract
Safety Door Locking System
Emergency Stop
Energy Saving
No Air Compressor Needed
2. Performance Specification
This is a fully automatic industrial washer extractor with multiple functions. It has been tested by the national authority organization and has got the international CE certification. It is safe and reliable and can be used without risk.
The whole washing procedure is controlled by the computer which can set over 30 washing procedures to meet almost any requirements of the operators.
With good damping device, it can be directly put in the floor or ship without any special foundation.
The adoption of high grade international-brand bearing, unique water seal and oil seal will ensure no water leakage, no oil leakage.
With high grade international-brand converter, the converter motor will run smooth and durable.
The liner, shell, out cylinder and sink are all made of stainless steel, and the liquid soap box is made of stainless steel or plastic which will thoroughly eliminate the corrosion from strong acid and alkali.
The clothes door with lock can achieve joint control. The machine will run only when the door lock is in its place.
There are two types for choose: steam heating and electricity heating.
3. Technical Specification
| Model No. | Unit | XGQ-15F |
| Capacity | kg | 15 |
| Drum diameter | mm | 1200 |
| Drum depth | mm | 890 |
| Volume load ratio | l/kg | >10 |
| Washing speed | rpm | 50 |
| Medium spin | rpm | 450 |
| High spin | rpm | 780 |
| Work cycle | min | 45 |
| Motor rating | kw | 2.2 |
| Steam pressure | mpa | 0.4~0.6 |
| Water pressure | mpa | 0.2~0.4 |
| Compressed air | mpa | --- |
| Heater rating | kw | 12 |
| Cold water tube diameter | mm | 15 |
| Hot water tube diameter | mm | 15 |
| Steam tube diameter | mm | 15 |
| Drainage diameter | mm | Φ40 |
| Width | mm | 1120 |
| Depth | mm | 1000 |
| Height | mm | 1600 |
| Machine weight | kg | 700 |
4. Service System
Pre-Sale Service
Before the order is confirmed, we will provide free laundry layout and all the consultation about the product.
Sale Service
1). In-depth Design
When the order is confirmed, we will communicate with the professional staff from the buyer's part and discuss the in-depth drawing design. Besides, we will provide the whole laundry factory layout design for free. The design scheme will be including equipment installation drawing about foundation, water inlet, drainage, air input and output, compressed air and electricity.
2). Installation
When the equipment arrive to the buyer, we will send our technical staffs to provide field installation guidance and any other necessary help to ensure proper and standard installation.
3). Testing
After installation, our staff will help our customer to test the machine and check all the technical index, function, specification of the machine. Also we will comprehensively eliminate all the possible human-caused damage or troubles during installation to make sure the machine will operate in its best condition.
4). Operation Training
Before the machine is put into use, we will provide operation training to ensure the operators from the buyer's part can work independently. The training includes proper operation, safe startup, smooth operation, proper washing, linen check and categorization and machine maintenance. Also we will help operators to learn the right way to save water, energy and emergent stop operation.
5). Service Fees
Above all, the first step, the in-depth laundry layout design is for free. From the second step to the forth step, we provide free labor and service, while the buyer will need to pay for our technicians' transportation and accommodation during maintaining period.
After-Sale Service
Within one year since the machine was put into use, we will provide spare and accessory parts for free, shipment included. If the buyer part needs our technicians to come to maintain, we will send our staffs to help maintenance for free labor and the buyer part will pay for the transportation and accommodation during maintenance.
One year after the machine was put into use, we will charge a little fee for the spare and accessory parts we provide, while the buyer should pay for the shipment. If the buyer's part requires our part to send technicians, we will charge for $200 per day for each technician, and the buyer also need to pay for the transportation, accommodation and other relevant costs.
We reserve all the right to explain the service system.
Shanghai Baiqiang Washing Equipment Manufacturing Co., Ltd.
5. Other Details
MOQ: 1pcs
Price: $2900-$3100
Shipment: By Sea
Payment Terms: L/C, T/T, Paypal, Western Union, Cash (Negotiable)
Lead Time: Within 15 Days After the Order Is Placed
Packing: Wooden Case Package
6. Why Choose Us
1). Leading Manufacturer, Real factory
Our company was established in 2002 and has many years of experience, now we are one of the leading manufacturers in our industry. We have real big factory workshop and advanced processing equipment.
2). Advanced Technology Research, High Quality Products.
We have professional research team and advanced technology, we put a lot on developing new products with good quality. Our main products are: Tunnel Washing System, Laundry Washer Extractor, Converting Washing Machine, Tumble Dryer, Multi-Roller Ironing Machine. Slot Ironing Machine, Sheets&Towels Folding Machine, Dry Cleaning Machine, Industrial Hydro Dehydrator, Horizontal Washing Machine and other industrial laundry equipment.
3). Professional Service System
We have professional service system to provide you the reasonable and transparent service with high quality. We will ensure you the best service and make you surprisingly satisfied.
4). Experienced Sales Team
We have experienced sales team specialized in oversea market to make the most convenience for you.
5). Immediate Inquiry Reply
Our team will be 24 hours online so you can feel free to contact us anytime you want. And we promise we will reply your inquiry within 3 hours.
6). Long-term Cooperation
We have built long-term relationships with our distributors all over the world and we sincerely look forward to starting excellent partnership with you ! If you want to join us, please don't hesitate to contact us !
For more information, always feel free to contact us, we will be waiting for you all the time! We are looking forward to build a long-term relationship with you!
Contact: Miss. Fiona Wang
Mobile: +86 17701686526
Tel: +86 21 34510301
Shanghai Baiqiang Washing Equipment Manufacturing Limited Company, located in Fengcheng Industrial Zone, Fengxian District, Shanghai City, is one of the leading enterprises in China's washing machinery industry. The company has a registered capital of 30, 500, 000 RMB and a processing plant of 30, 000 m2 with more than 200 staffs. Possessing a series of most advanced modern equipments which include laser cutting machine, multi-functional turret punch, CNC shearing machine and CNC bending machine, and the most excellent researching and managing team, the company achieved an output value of nearly one billion. It has also passed ISO9000 Quality Management System Certification, ISO14000 Environment Management System Certification and OHSAS18001Occupation Health Safety Management System Certification. All its products have passed China National Light Industrial Apparel & Laundry Machinery Quality Supervision & Inspection Center test and have got the CE Certification.
Shanghai Baiqiang Washing Equipment Manufacturing Limited Company processes 5 series products including washing, drying, ironing, folding and dry cleaning. The high-end products we made such as folding machine for sheets, folding machine for towels, through-type dryer and tunnel washer gain the first place in our industry. And our products have a big domestic market share. Baiqiang washing equipments are now widely used in hotel, laundry and hospital. The brand of Baiqiang has been recognized by our customers as an excellent national brand with best quality, perfect service, innovative vigor and huge development potential.
After 14 years of efforts, our products have been spread all over the country, and have been exported to South America, Africa, Southeast Asia and Russia, etc. We have a best team working on oversea market development and provide you comprehensive service including site planning, equipment layout, installation design, equipment testing, operation training and after-sale maintenance.
