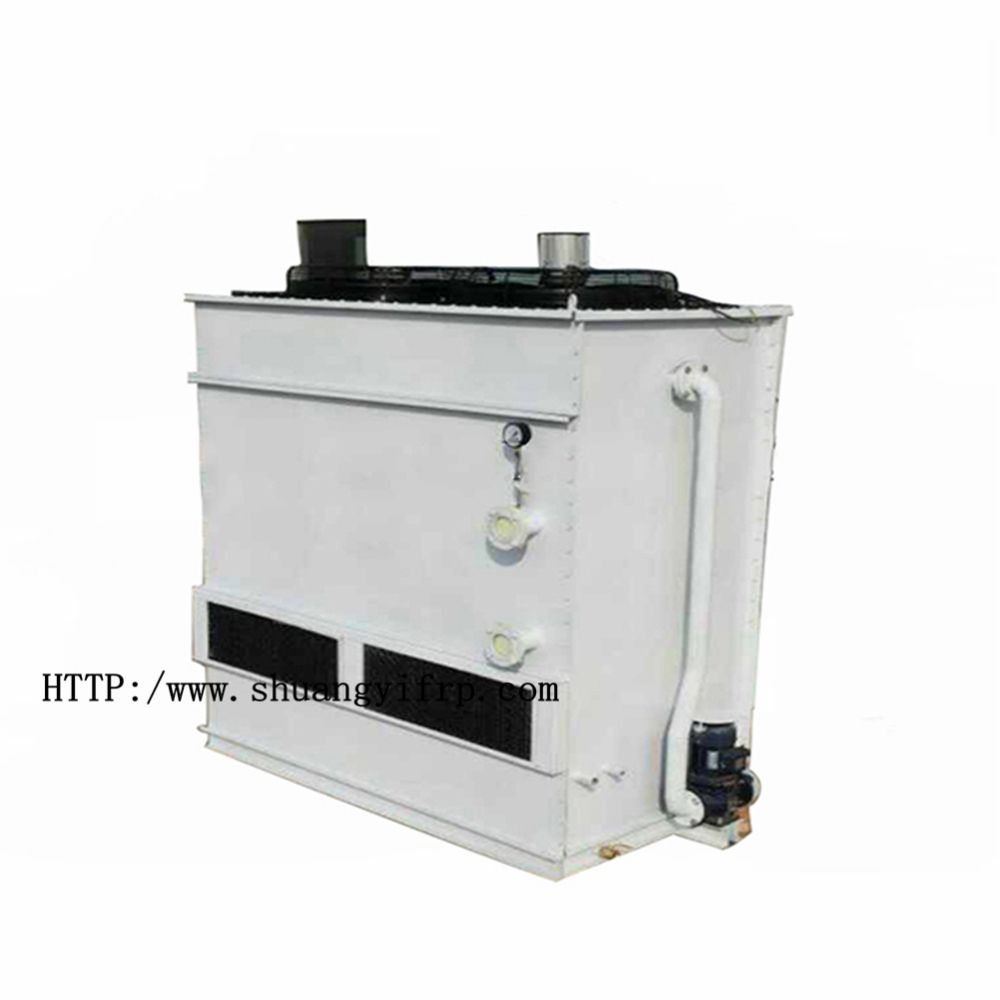

Industrial Closed Type Cooling Tower for Thermal Energy
| Price: |
US $ 600-6000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
YDFB |
| Usage: |
Industrial |
| Warranty: |
12 Months |
| Voltage: |
380V,50Hz |
| Filler: |
PVC |
| Fan: |
FRP,Aluminium |
| Cooling: |
Cooling Coil |
| Weight: |
Depends on Cooling Tower Capacity |
| Delivery: |
20-25days After Receiving Deposit |
| Packing: |
Wooden Case |
| Name: |
Industrial Closed Type Cooling Tower |
| Cooling Method: |
Counter Flow |
| Material: |
FRP |
| Certification: |
CCC |
| Condition: |
New |
Product Description
Industrial Closed Type Cooling Tower
Closed Cooling Tower Character1.The totally enclosed circulating cooling, ceases the line clogging which the sundry goods
2.Uses the soft water circulating cooling, the non-boiler scale production can prevent from causing electron tube, silicon-controlled rectifier, IGBT power source, water cooling reactor, induction coil and so on overheated damage.
3.Does not need basin, occupying land area is slightly, moving conveniently.
4.Controlling warm temperature by automatic number shown system, energy conservation, operating simplicity.
5.Same like European and American developed country mature closed type water cooling way.
Good performance:
DFB close type is designed by Shuangyi group and Shandong Construction College, adopt COSMOSFLOWORKS to make the air flow and water flow optimization design, make it excellent heat performance, make sure higher running efficiency, the whole effect reached to the best effect.
High efficiency cooling twist pipe:
Adopt high quality seamless steel tube, the whole body hot dip galvanized corrosion prevent solved; twist pipe all in the water to make the gas tightness test, make sure no leakage; Twist pipe lean flow the cooling water flow direction for the liquid discharge, pressure lost is low. And we can according to the need of customer make it use the copper or stainless steel pipe.
Low noise fan:
Patent technology designed low running speed, wide blade fan. Used wing type medium cavity blade, the angel of the blade is adjustable, low noise, high efficiency. They have two kinds material aluminum alloy and FRP composite material.
Motor:
Adopt the cooling tower specially used total sealing motor. Protection grade IP 55, can running for long time in wet and hot environment. And can according to customer's need to choose double speed motor.
Spray pump:
Adopt the outdoor type total seal pipe pump, large flow, low rotate speed, low noise.
High efficiency water baffle:
Made from good quality PVC, drift water loss less than one over ten thousand, plate installed, easy for dismantle.
Water plate and panel:
Adopt the FRP composite material, vivid color, bright and clean surface, anti corrosion, no fade. We can according customer's need to choose the stainless steel and HDG plate.
Silencing blanket:
In the water plate installed the PVC silencing blanket for effectively reduce the drip water noise.
Quality guarantee:
DFB close type cooling tower obtain the ISO9001 quality certificate and the ISO14001 environment certificate.Closed Cooling Tower Parameter| Ambient wet bulb temperature | 28° C | 27° C |
| The difference of inlet and outlet water temperature | 5° C | 8° C | 10° C | 15° C | 18° C | 5° C | 8° C | 10° C | 15° C | 18° C |
| Inlet and outlet temperature | 37-32 | 40-32 | 42-32 | 48-33 | 52-34 | 37-32 | 40-32 | 42-32 | 48-33 | 52-34 |
| Model | Combination way | Cooling volume(m 3 /h) |
| YDFB-25 | YDFB-25-1 | 25 | 19 | 17 | 16 | 14 | 27 | 20 | 18 | 17 | 15 |
| YDFB-50 | YDFB-50-1 | 50 | 38 | 34 | 32 | 29 | 54 | 41 | 37 | 34 | 31 |
| YDFB-75 | YDFB-75-1 | 75 | 57 | 51 | 48 | 44 | 81 | 61 | 55 | 51 | 46 |
| YDFB-100 | YDFB-100-1 | 100 | 76 | 68 | 65 | 59 | 108 | 80 | 73 | 68 | 62 |
| YDFB-125 | YDFB-125-1 | 125 | 95 | 85 | 81 | 73 | 135 | 100 | 92 | 85 | 77 |
| YDFB-150 | YDFB-150-1 | 150 | 114 | 102 | 97 | 88 | 162 | 122 | 110 | 102 | 92 |
| YDFB-175 | YDFB-175-1 | 175 | 133 | 119 | 113 | 103 | 190 | 142 | 129 | 120 | 108 |
| YDFB-200 | YDFB-200-1 | 200 | 152 | 136 | 130 | 118 | 217 | 163 | 147 | 137 | 123 |
| YDFB-250 | YDFB-125-2 | 250 | 190 | 170 | 162 | 147 | 271 | 203 | 184 | 171 | 154 |
| YDFB-300 | YDFB-150-2 | 300 | 228 | 204 | 195 | 177 | 325 | 243 | 221 | 205 | 185 |
| YDFB-350 | YDFB-175-2 | 350 | 266 | 238 | 227 | 206 | 380 | 285 | 258 | 239 | 217 |
| YDFB-400 | YDFB-200-2 | 400 | 304 | 272 | 260 | 236 | 434 | 325 | 295 | 273 | 247 |
| YDFB-500 | YDFB-125-4 | 500 | 380 | 340 | 325 | 295 | 542 | 406 | 368 | 341 | 309 |
| YDFB-600 | YDFB-200-3 | 600 | 456 | 408 | 390 | 354 | 650 | 487 | 442 | 410 | 370 |
| YDFB-700 | YDFB-175-4 | 700 | 532 | 476 | 455 | 413 | 760 | 570 | 416 | 360 | 433 |
| YDFB-800 | YDFB-200-4 | 800 | 608 | 544 | 520 | 472 | 867 | 650 | 590 | 546 | 494 |
| Ambient wet bulb temperature | 26° C | 25° C |
| The difference of inlet and outlet water temperature | 5° C | 8° C | 10° C | 15° C | 18° C | 5° C | 8° C | 10° C | 15° C | 18° C |
| Inlet and outlet temperature | 37-32 | 40-32 | 42-32 | 48-33 | 52-34 | 37-32 | 40-32 | 42-32 | 48-33 | 52-34 |
| Model | Combination way | Cooling volume(m 3 /h) |
| YDFB-25 | YDFB-25-1 | 30 | 23 | 20 | 18 | 16 | 32 | 23 | 21 | 19 | 17 |
| YDFB-50 | YDFB-50-1 | 59 | 44 | 40 | 36 | 33 | 64 | 47 | 43 | 37 | 34 |
| YDFB-75 | YDFB-75-1 | 88 | 66 | 60 | 55 | 49 | 96 | 71 | 64 | 56 | 52 |
| YDFB-100 | YDFB-100-1 | 118 | 87 | 80 | 73 | 66 | 128 | 94 | 86 | 75 | 69 |
| YDFB-125 | YDFB-125-1 | 148 | 110 | 100 | 92 | 83 | 160 | 118 | 107 | 94 | 86 |
| YDFB-150 | YDFB-150-1 | 177 | 132 | 120 | 110 | 100 | 192 | 142 | 129 | 113 | 104 |
| YDFB-175 | YDFB-175-1 | 207 | 154 | 140 | 128 | 116 | 224 | 165 | 150 | 132 | 121 |
| YDFB-200 | YDFB-200-1 | 237 | 178 | 161 | 147 | 132 | 256 | 190 | 171 | 151 | 138 |
| YDFB-250 | YDFB-125-2 | 296 | 221 | 200 | 183 | 165 | 320 | 237 | 214 | 189 | 173 |
| YDFB-300 | YDFB-150-2 | 355 | 267 | 241 | 220 | 199 | 385 | 285 | 258 | 227 | 208 |
| YDFB-350 | YDFB-175-2 | 418 | 313 | 284 | 259 | 234 | 449 | 332 | 300 | 265 | 242 |
| YDFB-400 | YDFB-200-2 | 474 | 356 | 322 | 294 | 265 | 513 | 380 | 348 | 302 | 277 |
| YDFB-500 | YDFB-125-4 | 592 | 444 | 402 | 367 | 332 | 641 | 474 | 429 | 378 | 346 |
| YDFB-600 | YDFB-200-3 | 711 | 532 | 483 | 440 | 398 | 770 | 570 | 516 | 454 | 416 |
| YDFB-700 | YDFB-175-4 | 829 | 621 | 563 | 513 | 464 | 898 | 665 | 602 | 530 | 485 |
| YDFB-800 | YDFB-200-4 | 948 | 711 | 645 | 587 | 530 | 1025 | 758 | 687 | 605 | 554 |

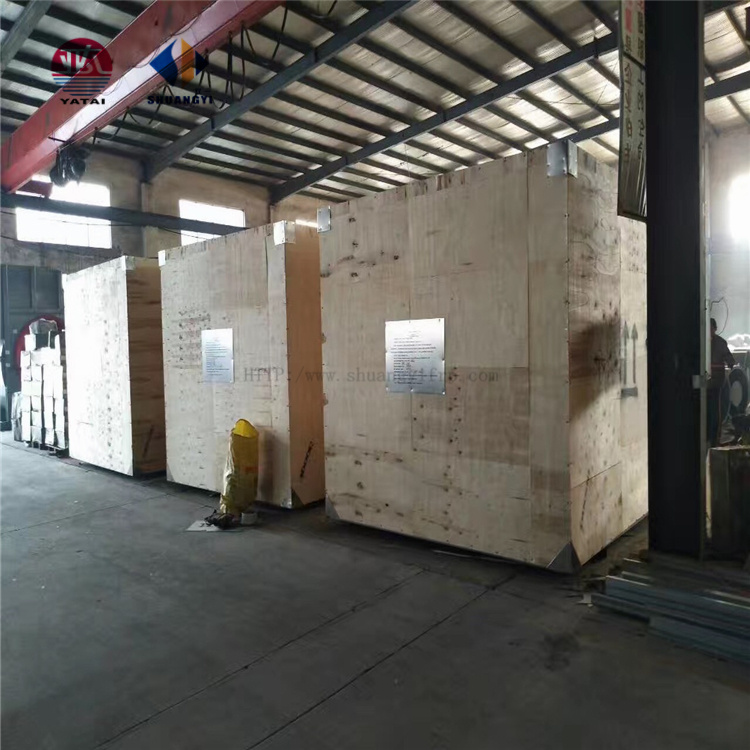

Package Picture
