| Prod Model: |
P3.91 |
| Cabinet Material: |
Die-Casting Cabinets |
| Best View Distance: |
3~150m |
| LED Chip Spec: |
SMD2121 |
| Shipment Terms: |
by Sea or by Air |
| Control System: |
Linsn or Nova |
| Price: |
Factory Direct Sale |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| IP Rating: |
IP43 |
| Certification: |
CCC |
| Pixel Density: |
65536 DOT/M2 |
Product Description

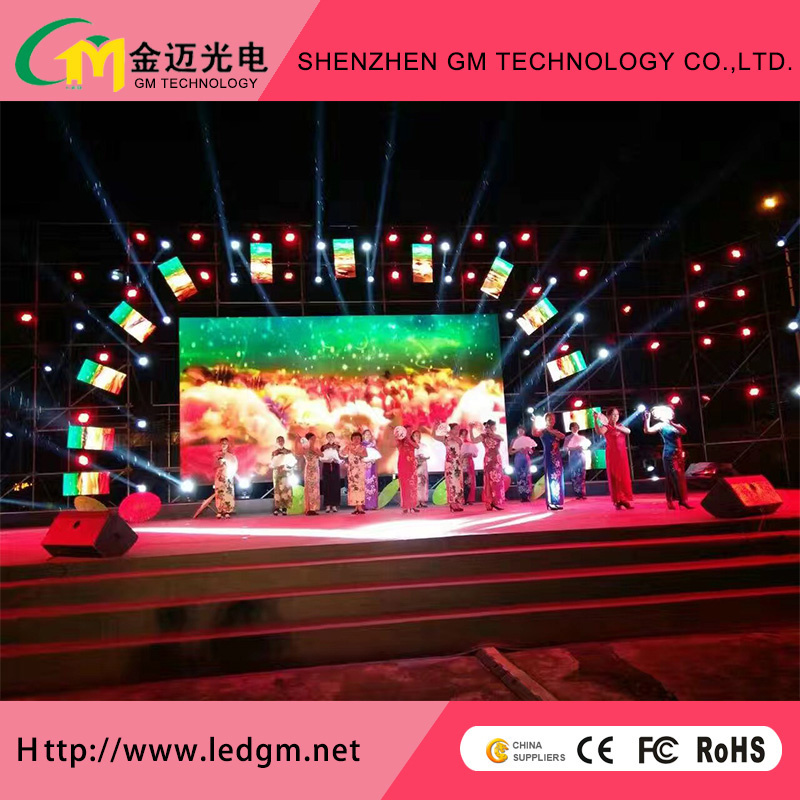

Indoor LED Cabinet for Rental LED Wall P3.91 Die-Cast Aluminum Cabinet
Product Description
Hot Sale P3.91 LED Display/ LED Sign with 500mm*500mm
1) It is extremely easy to calculate the area of LED screen because it is consist of 500*500mm cabinet.
2) 16 bit color, 65536 gray scale, refresh rate over 3840HZ/S so the video or images on the LED screen are very vivid and fresh. People who see it will get shocked by this amazing viewing experience.
3) The appearance is very elegant, it looks very high end. Quality is very stable
4) It is die-casting aluminum cabinet, very strong and precision is very high, tolerance can be controlled in 0.1mm so the surface is very smooth, almost no gap between cabinets
5) The side locks is spring locks, this is unique among all die-casting aluminum cabinets, especially popular in European market and North American market
6) With power and signal connectors, Neutrik or Seetronic brand, very easy to install and dismantle
7) High contrast rate up to 5000:1 by using black LED
8) The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
9) Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost
10). Good thermal design, excellent heat dissipation even no fan installation,
11) The same cabinet size can be compatible with different pixel pitches such as P3.125, P3.91,P4.81, and P6.25.If you want to update the product, you only need to change the module.
12).It is low noise, can be installed in office and meeting room.
Currently, GM Technology LED display is already exported to Asia, Europe, South America, North America, Africa and Middle East and other regions.For more details, please feel free to contact us. We will give you best service and timely reply.
| Product Model | Rental Indoor ZS3.91 | Rental Indoor ZS4.81 | Rental Indoor ZS5.68 | Rental Indoor ZS6.25 |
| Pixel Pitch | 3.91mm | 4.81 mm | 5.68 mm | 6.25 mm |
| Module Size | 250x250 mm | 250x250 mm | 250x250 mm | 250x250 mm |
| Module Resolution | 64x64 pixels | 52x52 pixels | 44x44 pixels | 40x40 pixels |
| LED | SMD 2020 | SMD 2020 | SMD 3528 | SMD 3528 |
| Standard Cabinet Size | 500x1000 mm | 500x1000 mm | 500x1000 mm | 500x1000 mm |
| Standard Cabinet Resolution | 128x256 pixels | 104x208 pixels | 88x176 pixels | 80x160 pixels |
| Standard Cabinet | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Physical Density | 65536 Pixels/m2 | 43200 Pixels/m2 | 30976 Pixels/m2 | 25600 Pixels/m2 |
| White Balance Luminance | ≥1200 nits | ≥1200 nits | ≥1800 nits | ≥1800 nits |
| Gray Scale per Color | 65536 grades gray(16 bit) | 65536 grades gray(16 bit) | 65536 grades gray(16 bit) | 65536 grades gray(16 bit) |
| Contrast | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Refresh Frequency | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz | ≥3840 Hz |
| Visual Angle(Horizontal/Vertical) | 140/140° | 140/140° | 140/140° | 140/140° |
| Max Power | 650 W/m2 | 650 W/m2 | 750 W/m2 | 750 W/m2 |
| Average Power | 200 W/m2 | 200 W/m2 | 220 W/m2 | 220 W/m2 |
| Input Voltage(AC) | 110 V -240 V | 110 V -240 V | 110 V -240 V | 110 V -240 V |
| Working Environment Temperature | -20ºC~50ºC | -20ºC~50ºC | -20ºC~50ºC | -20ºC~50ºC |
| Operating Humidity | 10%RH~95%RH | 10%RH~95%RH | 10%RH~95%RH | 10%RH~95%RH |
| Control System | AV,Video,VGA,DVI,HDMI,SDI,DP | AV,Video,VGA,DVI,HDMI,SDI,DP | AV,Video,VGA,DVI,HDMI,SDI,DP | AV,Video,VGA,DVI,HDMI,SDI,DP |
Why GM LED Display
1. Competitive Price
We are middle-sized Chinese local factory, maybe you can see that from our so Chinese name of "(GM) Meaning:Manufacturing golden quality , Towards the world ", unlike the internationalized name of foreign trade company. Besides, we control our cost very well and don't have huge management cost like top companies, so that we can give the real benefits to our customers.
2. Close Relationships with Raw Material Providers
For our bosses have been in the key positions at the top led display factory since 2006, we have very close and strategic relationship with the raw material providers, which support the stable quality of our products.
3. Quality Control
From raw materials to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability.
4. Professional services
We have 5-6 in the LED display industry more than 12 years of professional and technical personnel, hope to be able to better provide customers with the best solution. Let customers use the rest assured.
Services:
1.Your inquiry related to our products or price will be replied in 12hrs.
2.OEM&ODM,any your customized lightings we can help you to design and put into product.
3.Distributoership are offered for your unique design and some our current models.
4.Protection of your sales area,ideas of design and all your private information.
5.Best cost performance and perfect service before and after sales.
Other products:
Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED screen: P5, P6, P8, P10
Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED screen: P1.6, P1.9
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P8, P10
LED poster player: P2.5,P3, P4, P5, P6, P8, P10
Packing>>>
For iron cabinet led display screen of indoor or outdoor,we usually use wooden case to packing
For aluminum cabinet of led rental stage display,we usuallu use flight case to packing
One wooden case including 2 cabinets,one flight case including 6 cabinets
Shippment>>>
By air or sea,FOB shenzhen
UPS/DHL/Fedex/Express(door to door)and so on
Delivery time>>>
within 20 days counting from 30% prepayment arrived at GM account.
Payment term>>>
T/T(30% deposit,the remained 70% payment made before factory shipment )
Western union/paypal/L/C and so on
Quality assurance>>>
We offer 5 years warranty,and our products have passd CE,RoHS,FCC certificate ,All products have Age testing,shaking testing,waterproof testing,In generally,Module test is 24h,entire screen test is 72h,A series of testing before delivery can ensure transportation and quality products.
FAQ
1:What is the warranty of your led display?
A:We offer 5 years warranty.and more than 100000 hours screen life span
2:what is your payment term?How long it takes to delivery?
A:We usually accapt the T/T or L/C.both of them will at least 30% deposit in advance,and the rest of 70% will paid before delivery.The lead time is usually 20 day
3:How can you ensure the led display product quality?
A:Before shippment,all the screens have aging test.and then we also have waterproof test and shake test,ensure products can transportation safety and normal use.
4:What is your pre-sale and post-sale service?
A:For pre-sale service,we have professional sales team and technical team,who are willing to answer your question within 24 hours.
For post-sale service,we will instruct you how toinstallation,how to use,how to change the broken moudles,and we can also send the technicals to your country,in general,our led display will not have a big problem,you can rest assured to buy.
