Imported Configuration Model Operating Table SUS#304 Stainless Steel No Rust Electric Table
| Price: |
US $ 3750/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
MT2000 |
| Length: |
2000 ± 50mm |
| Width: |
555mm |
| Lowest And Highest Height Of Table Board: |
(750-1000) ± 50mm |
| Forward/Backward Tilt: |
≥32° |
| Left/Right Tilt: |
≥22° |
| Head Board Up/Down: |
≥90° |
| Waist Bridge Lift Up: |
≥130mm |
| Back Board Up: |
≥80° |
| Back Board Down: |
≥40° |
| Type: |
Operating Light |
| Certification: |
ISO9001 |
Product Description

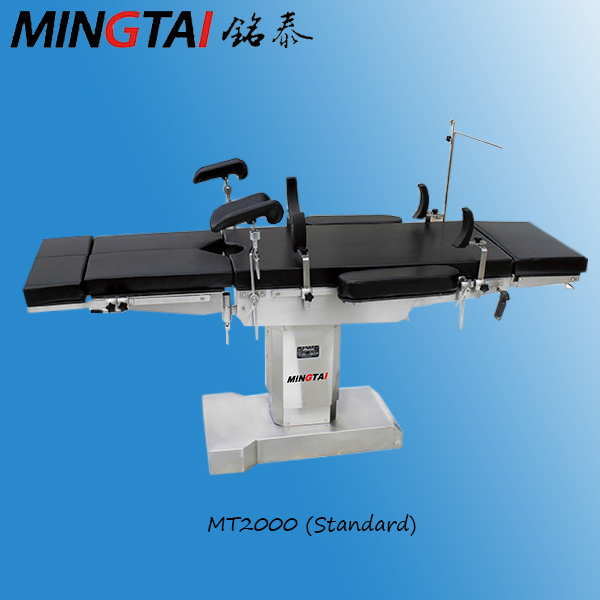

Mingtai-MT2000 (Imported Configuration) Comprehensive Electric Operating Table
Imported configuration Model operating table SUS#304 stainless steel no rust Electric table
Configuration:
Multi-function 5 motors comprehensive electric operating table
SUS304# Stainless steel from Korea
Imported high quality Linak linear motor from Denmark
Superior wide of operating table: 555mm
2 motors rise the back board, double controlling pattern, "T" shaped base design
Memory sponge mattress which can prevent acne + use high grade material
Electric waist bridge (optional), electric braking (optional)
Technical parameters:| Length | 2000±50mm |
| Width | 555mm |
| Chinese standard lowest and highest height | (750-1000) ± 50mm |
| Optional table width | (480-600) mm |
| Optional table height of lifting up and down | (200-450) mm |
| Optional lowest height | 600mm |
| Forward/ backward tilt | ≥32° |
| Left/right tilt | ≥22° |
| Head board up | ≥90° |
| Head board down | ≥90° |
| Waist bridge lift up | ≥130mm |
| Leg board down | ≥90° |
| Leg evagination | ≥90° |
| Back board up | ≥80° |
| Back board down | ≥40° |
| Power | AC 220V 50Hz |
| Input power | 500VA |
Main Feature:
1.
Electric motor driving system: imported the Danish LINAK brand motor, 5 motors work, 2 of them rise the back board up and down, with low noise and smooth motion. Move stably and is durable.
2.

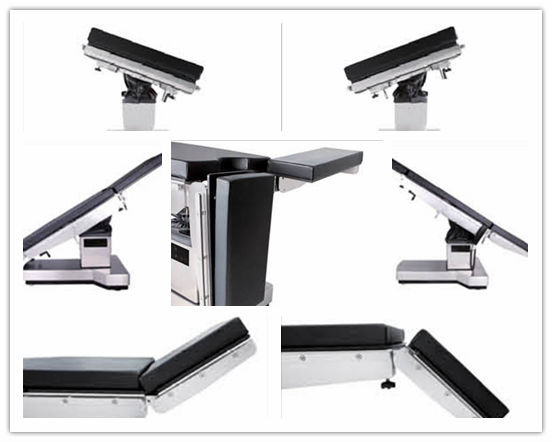

The whole bed is made of high quality SUS304# stainless steel, super thick≥4mm (not stainless steel cover). The whole surgery bed, cover and accessories are all made of high-quality nickel chromium alloy stainless steel, not rusting within 15 years, excellent sealing, polishing surface treatment, impact resistance, prevent scratch resistance, wear resistance, disinfection, easy to clean, fully meeting disinfection after operation.3. Fairily "T" shape base design supple excellent shock resistance and stability, easy for clear and disinfection. 5 sections board design: head board, back board, built-in kidney elevator and leg board.
4.
Stable: Adopt the patent design of three lifting column. Pipe fitting column section: Square lifting column with patent design is made by Germany, which has 4 times safety factor and 8 fasteners which can make it stable
5.
Braking system with patent design is specialized for operating table, pedal-braking, once braking, the operating table position will not change, to ensure table keeping stable and safe in operation.
6.

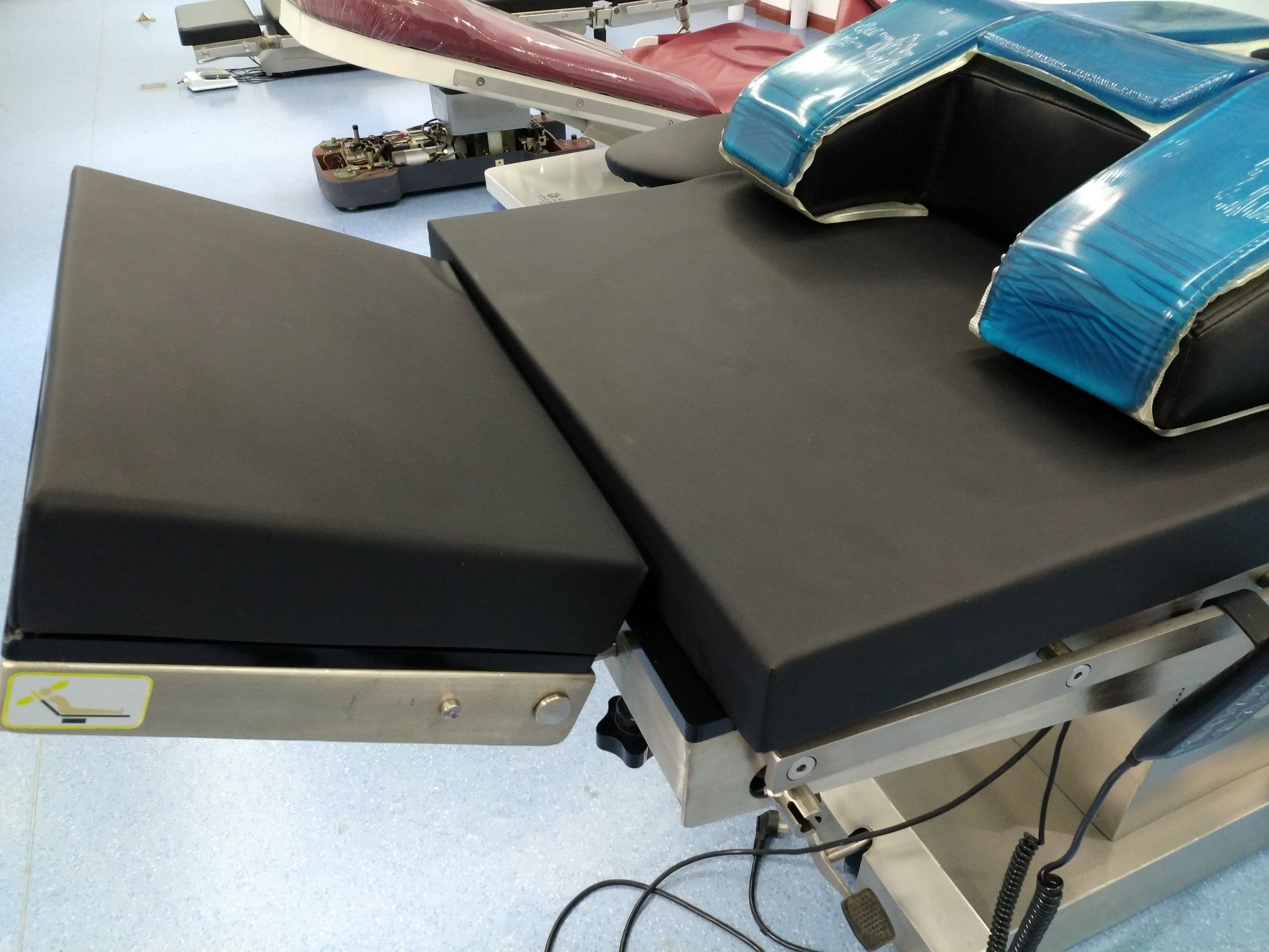

The operation table has excellent function, elegant appearance, easy to operate. Mattress: Memory sponge mattress which can prevent acne + use high grade material, thickness is 70mm, effectively relieve patients pressure point, prevent postoperative bedsore occurred; mattress material is conformed with the safety standard, the surface is antibacterial, easy to clean, meeting the operating room disinfection requirements.
7.
Leg board can be replication, outreach and removable, convenient for adjusting and urinary surgery.
8.

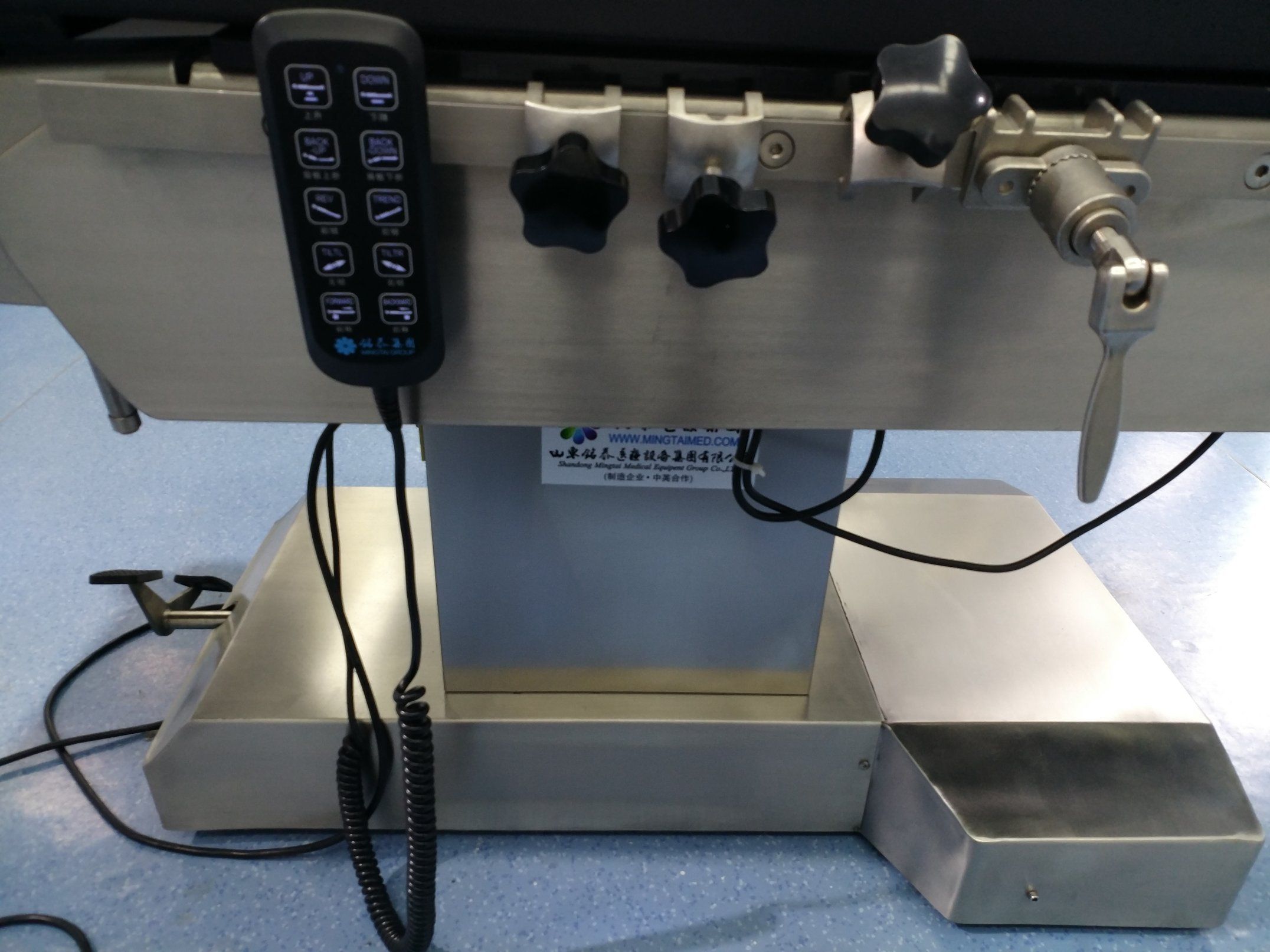

Operation table base has fix or movement function, flexible movement and stable fix, different function accessories can be provided for different surgery needed.
Product Details:
MINGTAI--Expert of Medical Devices for OR&ICU
Mingtai, as a well-known medical equipment manufacturer of China, since its establishment, continues to develop, enterprising constantly, with better quality, better service, make it easy for public enjoy the health future of medical science.
Mingtai Medical Group was founded in 2 0 0 0, Is a global leading supplier of OR & ICU Products. Mingtai Medical adhere the technological innovation to create value for customers. She has a close strategic cooperative relations with the famous Germany medical company brand "Draeger"(Germany Draeger Medical GmbH) Wellknown Hydraulic System "HOERBIGER"(Germany HOERBIGER Automation Technology GmbH), Germany medical suspension system supplier "Ondal"(Germany Ondal Medical Technology GmbH).
Mingtai won the trust and cooperation of global customers by the increasing innovation ability, prominent flexible customization capabilities and the gradually perfected delivery ability.
All the products passed I S O 13485, I S O 9001, CE Certificate & SFDA. The company have a number of invention patents. Utility model patents and design patents. The Mingtai medical have the most complete end-product lines of industry, integration solutions and International brands MINGTAI MEDICAL series Surgical lamp, Operation table, Medical pendant, Electric care nursing bed. Flexibility to meet different global distributors and end customers' different needs, As well as the pursuit of rapid innovation.
In 2012, the company won the financial and technical support from UK WINDER WILSON medicine holding company. In many countries and regions in the world and the Chinese market to establish a perfect sales and service network, with scientific, professional service system quickly and timely to meet the diverse needs of customers, become their most valuable partners. In more than 88 countries and regions in the world, there are more than 8000 medical establishments bring health life to public by mingtai medical products.
Quality is the life of the product, the service is the continuation of life, from the first time shaking your hands, you will feel the most sincere service of mingtai person. All Mingtai colleagues will return your trust by the most enthusiastic service!
