| Prod Model: |
BS-868-5 |
| Load Capacity: |
250kg |
| Lifetime: |
More Than 10 Years |
| Motor Warranty: |
5 Years |
| Castor Warranty: |
2 Years |
| Spare Part Warranty: |
1 Year |
| Motor: |
Denmark Linak Medical Motor System |
| Siderail: |
ABS Handrails with Screen |
| Material: |
Metal |
| Type Of Hospital Bed: |
Electric Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Certification: |
ISO13485 |
| Numbers Of Function: |
Multi-Functions |
Product Description
Overall Size : 2330*1050*530/710mm
Material :
1.ABS head and foot board,antisepsis,anti-oxidation,generous in appearance.
2.The bed platform is made of cold roll steel sheet,shaped at one time;
3.The frame is welded by steel tube,stable and reliable;Surface treatment:Electrostatic powder coating;
4.PP tuck away siderails,generous in appearance,stable and easily operated.
5.The system uses Taiwan Timotion ,the safety voltage motor
Standard Configuration :
1) Denmark LINAK medical motor system
2) Urine hooks,I.V drip
3) Side rails touch keypad
4) Foot panel touch keypad
5) With UPS
Function:
1 Height adjustable from 530 to 710mm
2 Back-rest lifting angle is 0-65°(±5°)
3 Knee-rest lifting angle is 0-43°(±5°)
4 Trendelenburg are 0-10°
5 Rev.Trendelenburg are 0-10°
6 All achieved by electrically controlled ,with indicator light to show the work status.
7 Bed position data could be stored and data could be callout
8 Function of weight scale ,weight data could be stored and managed Off-bed alarming
9 Alarm for patient leave the bed
10 "Reset" function , bed could back to "Zero" position quickly

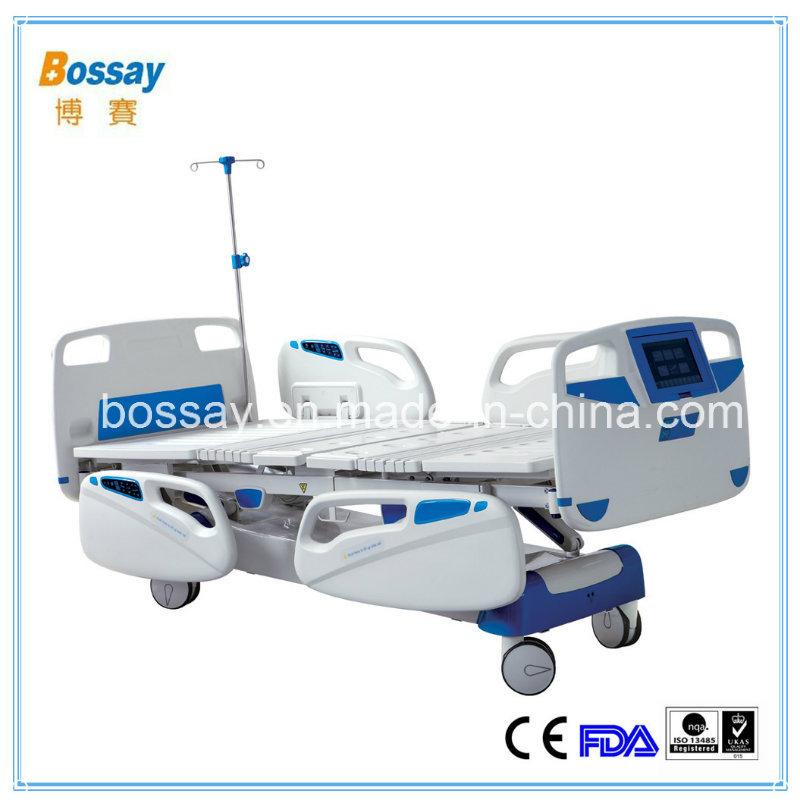

| Item No. | BS-868-5 HOT SALE Multi-Function Electric Hospital Bed Prices ICU Bed |
| Dimensions | 2120*900*500/700mm |
| Package | 1PC/CTN |
| Carton Size | 2080*1000*480mm |
| CBM/per ctn | 0.998m³ |
| Weight/per Ctn | N.W: 145KGS G.W:150KGS |
| Lading Qty | 25 | Pcs/20''GP | 55 | Pcs/40''GP | 70 | Pcs/40''HQ |
| Guarantee | Motor:5 Years, Other Parts:1 year |
| Certification | ISO13485:2003 |
| Lead Time | 20-25 days after receipt of deposit |
| Loading Port | ShenZhen/GuangZhou/FoShan,CHINA |
| Payment Terms | T/T with 30% deposit,and 70% balance before delivery |
| MOQ | 10 pcs |
FAQ:
If you have any proble,please contact with me.
1) We attenend fair:CMEF
2) We bring in advanced technology,equipment and experience from domestic and aboard
3) We can do the designs according to the customers'requirement
4) We can offer you the high quality & reasionalble price
Bossy Medical Appliance Co., Ltd is a professional manufacturer of hospital bed, children bed, operation bed, hospital trolley, bedside cabinet, hospital cabinet and etc. It was established in the year of 2009, locates at LeLiu Zone. Plant a beautiful environment, various ancillary facilities and convenient transportation. The company is a high-grade Hospital equipment R&D, production, sales and service for the integrated enterprise. Under the management tactic of integrity, lawful (business) operation, quality first, service foremost, we not only improved a lot on technic and quality but also after-sales service.
The products are registered in USA FDA, reach CE Standard and passed ISO13485: 2003. Our products are sold throughout the country and exported to America, Australia, Japan, Southeast-Asia, Africa and many other countries and regions. We gain market share through high quality. We make long time cooperation with customers through customer services We are walking on a sustainable development path with good faith.
Control from inspection:
- Process inspections after cold working, acid washing, powder coating and assembling
Final inspection before loading in random checking
- SGS third party inspection available if required
The Service We Provide - We Take Care Of Your Order
Punctual delivery time:
- We put your order into our tight production schedule, ensure your punctual delivery time.
- Production / inspection report before your order packed.
- Shipping notice / insurance to you as soon as your order is shipped
After sales service:
- We respect your feed back after receive the goods.
- We provide 12 - 24 months warranty after goods arrive.
- We promise all spare parts available in lifetime use.
- We large your complain within 48hours.
