Product Description

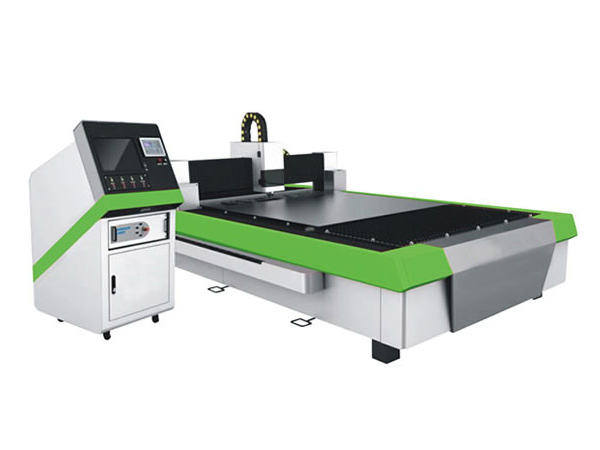

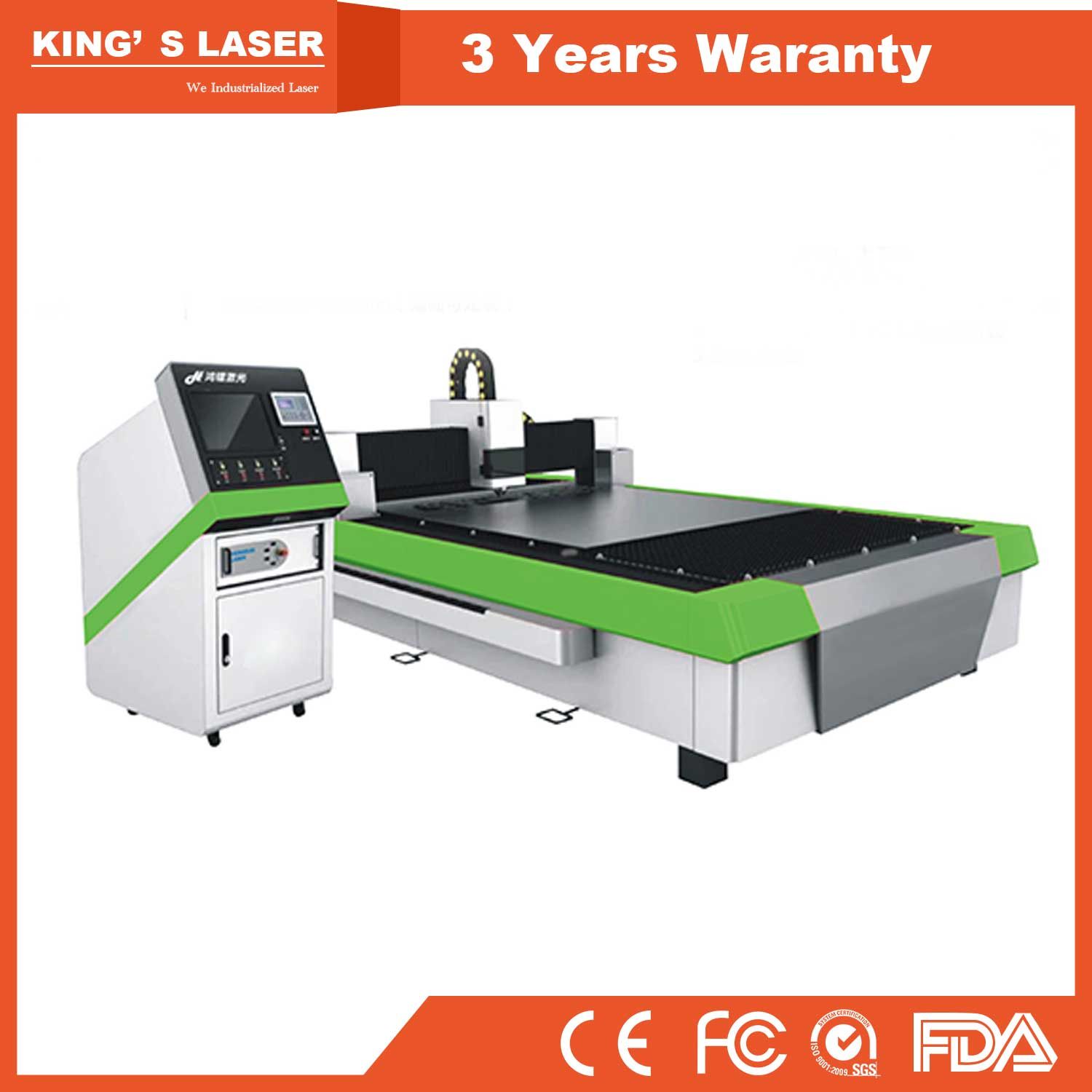

HOT sale 2000w 3d cuts fiber laser cutter laser cutting tableGermany laser source | Germany Cutting head | Fast delivery | 3 warranty years
Features:1.Adopts laser CNC system, ensure high precision, high efficiency under high running speed.
2.Imported laser cutting head, Non-contact capacitance sensor, strong security measures, high stability.
3.Provide auxiliary gas auto changing system (pressure-air, nitrogen, oxygen) for processing different type of materials
4.Cutting bed equipped gathering unit for recollecting and processing metal powder.
5.Advanced programming jacking software (including material management,cutting optimization functions), profound performance for punching, sharp point processing, sophisticated laser cutting processing database, operator only need to match the cutting parameters according to the materials which makes the operation smarter and easier.
6.Optimized optical lens, special designed nozzle and sensing technology, ensure the cutting process more smoothly and steadily.
7.Adopts IPG Germany fiber laser source
Specification: | Laser type: | Fiber laser |
| Laser output power | 500W-3000W |
| Laser safety class | class 4 |
| Wave length: | 1064nm |
| X,Y axis positioning accuracy: | ±0.03mm |
| Repeated positioning accuracy: | ±0.05mm |
| Servo type: | AC servo |
| Acceleration | 1.5G |
| Max.travelling speed: | 80-150m/min |
| X axis travel: | 3000mm |
| Y axis travel: | 1500mm |
| Z axis travel: | 100mm |
| Protection level: | IP65 |
| Continuous working hrs: | 24hrs |
| Working size: | <1500mm×3000mm |
| Power supply: | 380V?50Hz/50A |
Application:Capable for cutting a variety of sheet metals pipes ( By adding a pipe clamping device ) mainly for stainless steel carbon steel galvanized sheet electrolytic plate brass plate aluminum manganese steel various alloy plates rare metal and other materials
Materials:
Mild steel
Aluminum
Stainless steel
Copper
Brass
Titanium
Zinc
Coated steel
