| Price: | US $ 0.1-7/Meter |
|---|---|
| Min Order: | 100/Meter |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | air water hose |
|---|---|
| Type: | Flexible Water Hose |
| Medium: | Water/Air/Oil |
| Reinforcement: | High Tensile Textile Braided |
| Surface: | Smooth or Clothed |
| Temperature: | -40°c to +70°c |
| Material: | Natural Rubber |
| Capability: | Water Rubber Hose |
| Color: | Customized |
Contact
Export sales
Name : Joanna Zhang
Wetchat/ Kakao Talk: JoannaZ4
Cell/whatsapp/imo: +86 15922288368
ICQ: 720664199
Office: +86 22 58283351

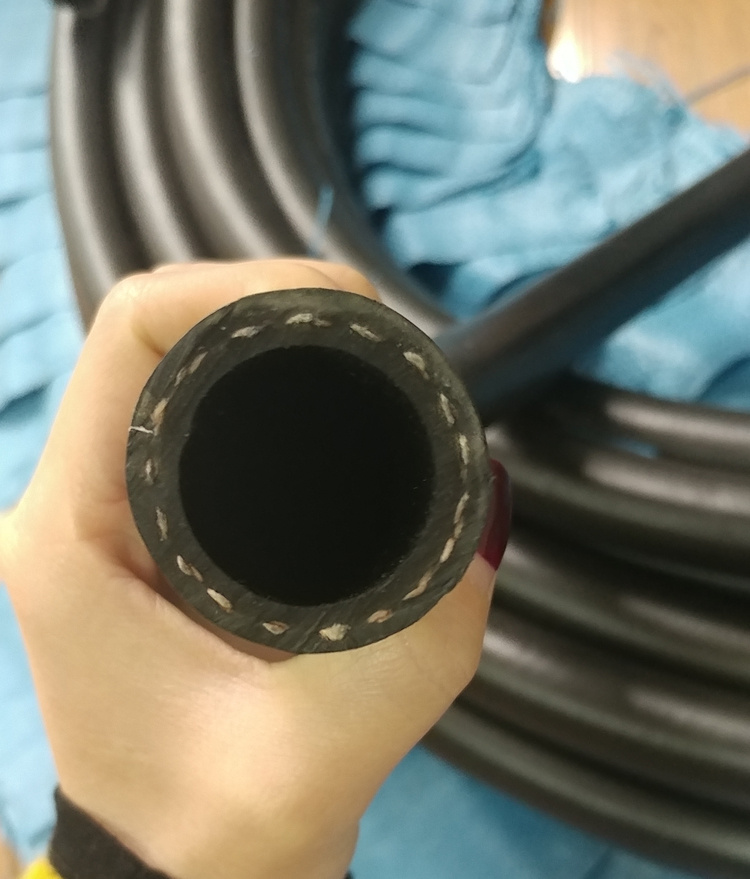

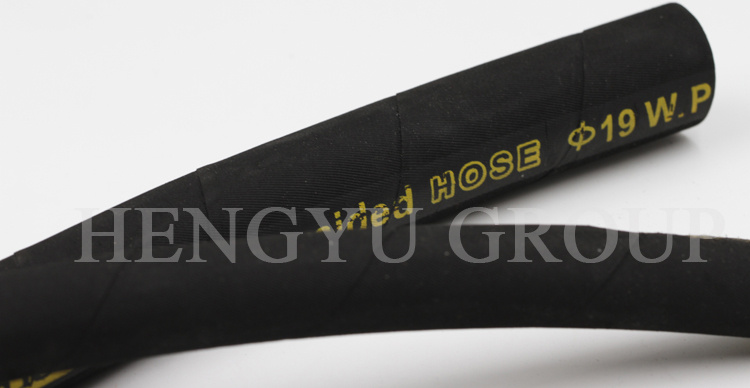

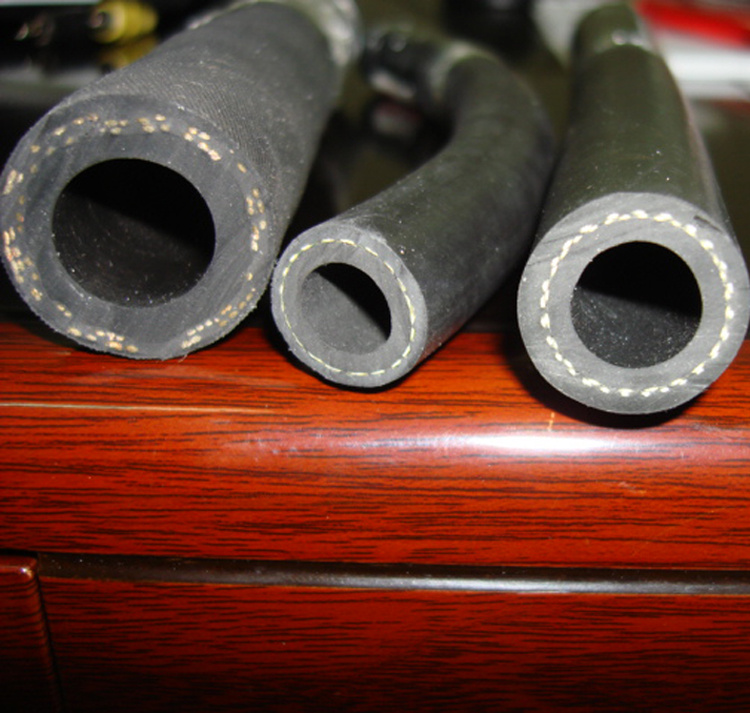

| Air/Water hose | |||||||||
| MAIN APPLICATION: | For air and water transfer | ||||||||
| TEMPERATURE RANGE: | -40°F / +158°F -40°C / +70°C | ||||||||
| INNER TUBE: | synthetic rubber | ||||||||
| REINFORCEMENT: | High tensile textile braids | ||||||||
| COVER: | Synthetic rubber with high abrasion, ozone and weather resistance | ||||||||
| Optional Feathers: | Pin-pricked for air transfer application | ||||||||
| I.D | O.D | MAX W.P. | MIN B.P. | WEIGHT | Constr. | ||||
| DN | inch | mm | inch | bar | psi | bar | psi | kg/m | |
| 6 | 1/4'' | 13.0 | 0.51 | 20 | 300 | 80 | 1160 | 0.18 | 2B |
| 8 | 5/16'' | 15.0 | 0.59 | 20 | 300 | 80 | 1160 | 0.2 | |
| 10 | 3/8'' | 17.0 | 0.67 | 20 | 300 | 80 | 1160 | 0.26 | |
| 12 | 1/2'' | 20.0 | 0.79 | 20 | 300 | 80 | 1160 | 0.36 | |
| 16 | 5/8'' | 24.8 | 0.98 | 12 | 174 | 48 | 696 | 0.42 | |
| 20 | 3/4'' | 26.8 | 1.06 | 12 | 174 | 48 | 696 | 0.45 | |
| 22 | 7/8'' | 29.8 | 1.17 | 12 | 174 | 48 | 696 | 0.6 | |
| 25 | 1'' | 33.5 | 1.32 | 12 | 174 | 48 | 696 | 0.7 | |
| 27 | 1 1/8'' | 35.5 | 1.40 | 12 | 174 | 48 | 696 | 0.8 | |
| 32 | 1 1/4'' | 41.5 | 1.63 | 12 | 174 | 48 | 696 | 0.95 | 4S |
| 35 | 1 3/8'' | 44.5 | 1.75 | 12 | 174 | 48 | 696 | 1.04 | |
| 38 | 1 1/2'' | 47.5 | 1.87 | 12 | 174 | 48 | 696 | 1.16 | |
| 40 | 1 5/8'' | 50.0 | 1.97 | 12 | 174 | 48 | 696 | 1.29 | |
| 42 | 1 2/3'' | 51.5 | 2.03 | 12 | 174 | 48 | 696 | 1.5 | |
| 45 | 1 3/4'' | 54.5 | 2.15 | 12 | 174 | 48 | 696 | 1.63 | |
| 51 | 2'' | 61.5 | 2.42 | 12 | 174 | 48 | 696 | 1.75 | |
| 57 | 2 1/4'' | 67.5 | 2.66 | 12 | 174 | 48 | 696 | 1.96 | |
| 60 | 2 3/8'' | 70.5 | 2.78 | 12 | 174 | 48 | 696 | 2.09 | |
| 64 | 2 1/2'' | 75.0 | 2.95 | 12 | 174 | 48 | 696 | 2.33 | |
| 76 | 3'' | 88.0 | 3.46 | 12 | 174 | 48 | 696 | 2.79 | |
| 89 | 3 1/2'' | 102.5 | 4.04 | 12 | 174 | 48 | 696 | 3.35 | |
| 102 | 4'' | 115.5 | 4.55 | 12 | 174 | 48 | 696 | 3.75 | |
Our company
Hebei Hengyu Rubber Product Group Co., Ltd, founded in 1999, is a manufacturer dedicated to the design, production, and distribution of all types of flexible hoses, fittings, adapters, quick couplings and assembly machines with excellent quality standard.
After 20 years of development, today the plants of Hengyu Group has expended to occupy an area of 130,000 square meters, owns over 300 well-trained staffs and over 10 million meters production capacity per year, in order to meet high demand of both local and oversea market. Until now, Hengyu Group has been awarded as 'The well-known trademark enterprises" and "The best top 10 enterprises" in China.
1. SAE 100 R1AT, R2AT, R5, R6, R7, R8, R12, R13, R14,R15
2. DIN EN 853 1SN, 2SN,2ST; EN 856 4SP, 4SH
3. SAE100 R14 Teflon hose
4. Jack hose, washing hose, sewer hose
5. SAE100 R4 Air/Water/Oil Suction & Discharge Rubber Hose
6. LPG(gas) HOSE, twin welding hose,Steam hose
7. Sandblast Hose,Concrete pump hose
8. Rotary Drilling and Vibrator Hoses, Cement Hoses, and Mud Delivery Hoses
9. Fiber glass fire sleeve(Pyrojacket), Plastic Spiral Guard for Hydraulic Hose
10. Hydraulic fittings and adaptor
11. Crimping machine,Skiving machine, cutting machine
Q1. Are your company a manufacturer or trading company?
A: Our company is a manufacturing company.
Q2. Can your products be customized?
A: Sure, we can provide the customized design and customized production for metal connectors, hose assembly and steel pipe assembly as your requirements.
Q3. Do you produce smooth or cloth wrapped cover?
A: Yes,we can produce both cover.
Q4. Can you produce products with my own brand?
A: Yes,we can offer OEM services.
Q5. Can I get free samples?
A: yes, send your address,your telephone number,post code,and express account number to us,and tell us which samples you need and samples specification.
Q6. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q7.What is your port of loading?
A: Xingang port

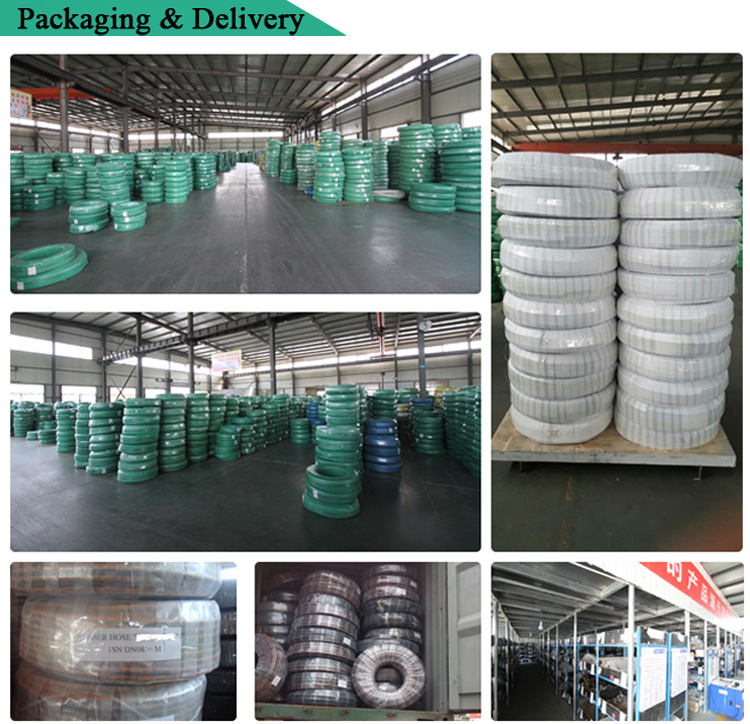

Q8. What is your terms of packing?
A: Generally, we pack our goods in fiber cloth or woven bag. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q9. How about your delivery time?
A: It usually takes 15 to 30 days,which generally depends on the quantity of your order and our storage.
