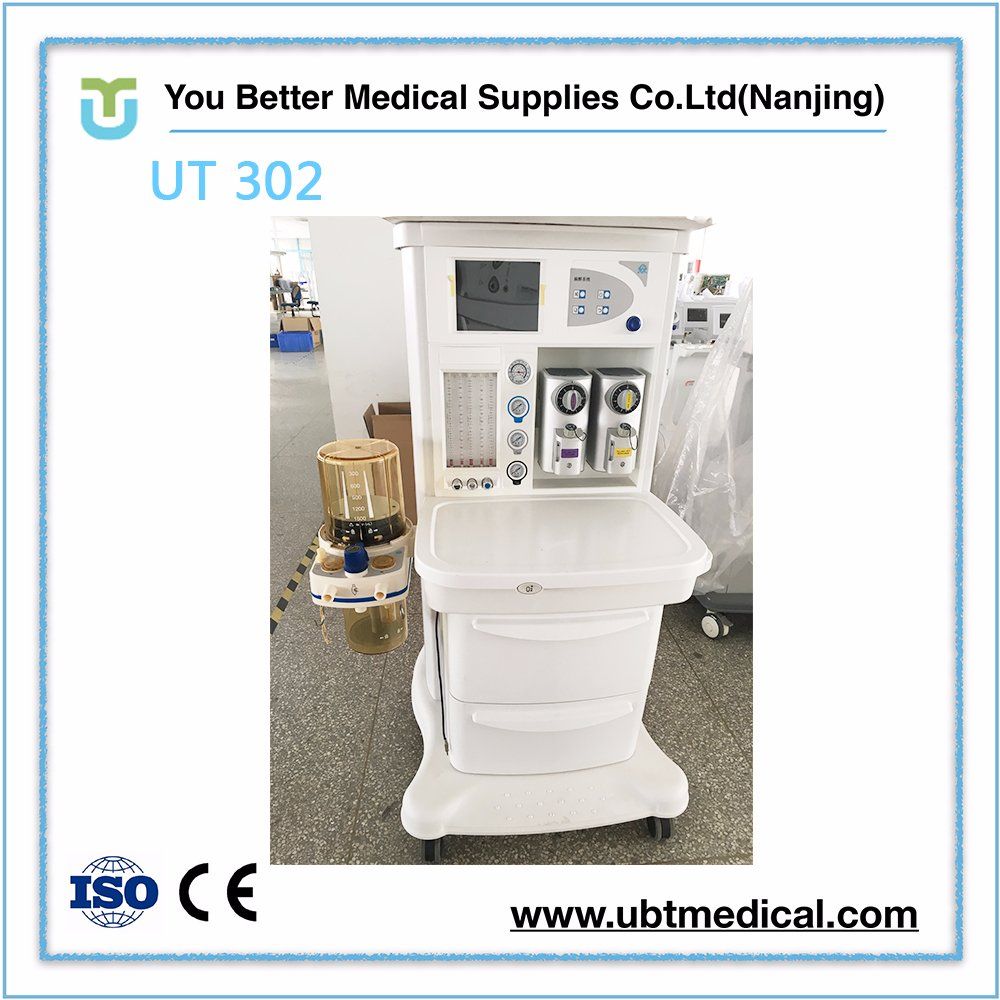

| Prod Model: |
UT 302 |
| Dimensions: |
70*85*140cm |
| Weight: |
65kg |
| Casters: |
Central Brake with Lock |
| Screen: |
LCD |
| Display: |
8.4 Inch |
| Power: |
AC 220V |
| Output Pressure: |
0.4MPa |
| Current: |
500mA Max |
| Working Type: |
Electronically Controlled, Pneumatic Driven |
| Tidal Volume Range: |
20-1500ml |
Product Description
Item Name
hospital surgical room equipments electric medical clinical trolley anesthesia
Description
Packing details: 870*940*1420mm, NW: 90KG, GW: 130KG.
Extraordinary performance points
8.4 inch colour LCD screen
Compact Anesthesia ventilation system with the standard of ISO 9001:13485
Easy to operate, user friendly
Ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring
Support adult and pediatric
Applied for closed, semi-closed, semi open inhalation anesthesia controlled or assisted ventilation
3 gas sources
Technique Specifications
Physical specifications
Dimensions: 70*85*140cm
Weight: 65kg
Casters: Central brake with lock
Screen: LCD
Display: 8.4 inch
Display graphics: Waveforms of P-T, F-T, V-T, loops of P-V, V-F, F-P
Monitoring: VT, MV, BPM, Paw, Lung compliance, Inspiratory Platform, FiO2
Working specifications
Power: AC 220V±10%, 50Hz±2%
Output pressure: 0.4±0.1Mpa
Current: 500mA max
Ventilator Specifications
Modes of ventilation: VCV, SIMV, MANUAL, SIPPV(A/C), PCV STAND-BY
Working type: Electronically controlled, pneumatic driven
Tidal Volume range: 20-1500ml
Pressure range: 5-80 mbar
Rispriation Rate Range: 1-99bpm (1-40bpm under SIMV)
I:E Range: 4:1-1:8
Ptrigger Range: -20-20cmH2O
Minute volume range: >18L/Min
SIGH range: 0-5/100
System Standard
Hypoxic guard system: N2O cut-off valve, O2 concentration <25%
Safety valve: <12.5kPa
Fresh gas compensation: 25-75L/min
Flow meter: 5 tubes, Cascade, 0-10L/min O2, 0.1-10L/min N2O, 1-10L-min air
Volume of CO2 absorber: 1.5L
Vaporizer: 2 Selectetac, maximum 2 mounts (Isoflurane/Enflurane/Sevoflurane/Halothane)
Alarm Limits
Audio/Visual: No tidal volume, MV,Paw, FiO2 limitation O2. Air failure, AC power failure, backup low
Gas configuration: O2, N2O, Air
Battery: Lead-acid 12V, 4Ah, Typical 30 mins+, up to 2 hrs
Language: English
Calibration: Automatic
Applications
Patient range: Audlt/ Peadiatric
Type: Integrated, Electronic control
PEEP:
Range: OFF, 3-20cmH2O
Optional: ACGO, Vaporizer, Yoke system (Pin-index), AGSS
