Price: | US $ 3000-4000/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | L/C,T/T |
Prod Model: | SSC-E-231 |
---|---|
Power Source: | Electricity |
Power And Plug: | as Per Your Country |
OEM Service: | Available |
Warranty: | 12 Months |
Accessories: | 1% for Free |
Structure: | Safe, Stable and Durable |
Driving: | Motor |
Type: | Operating Table |
Certification: | ISO13485 |
LCD Display: | With LCD Display |
Source: | Air |
Anesthesia: | Closed Circuit |
Type Of Operating Light: | Double Operating Light |
Kind: | for General Operation |
Group: | All |

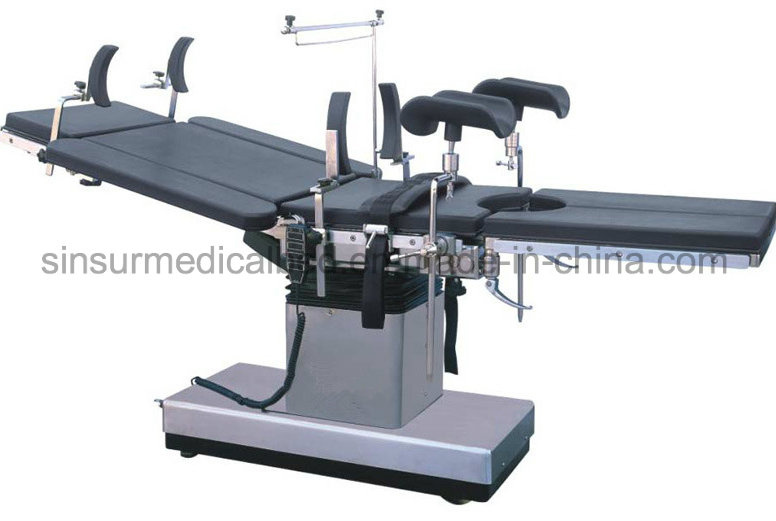

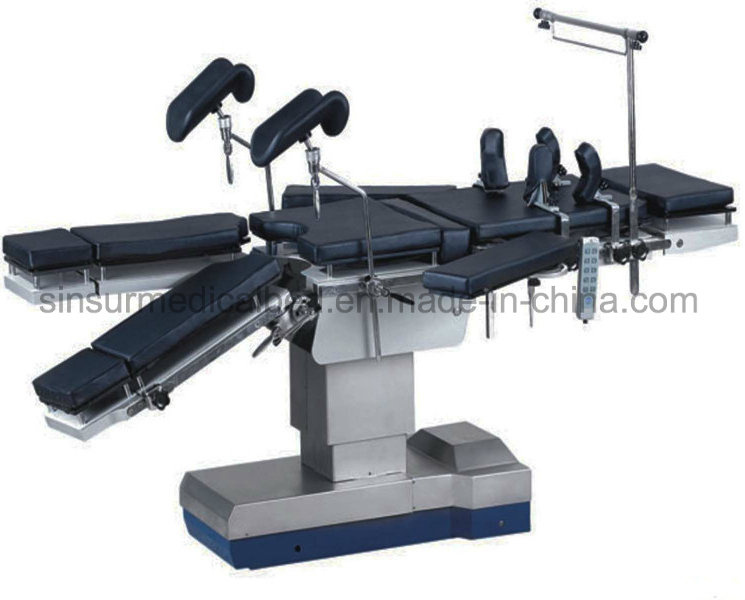

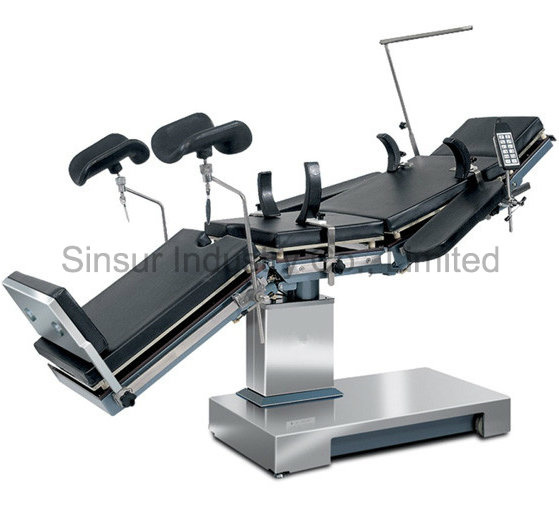

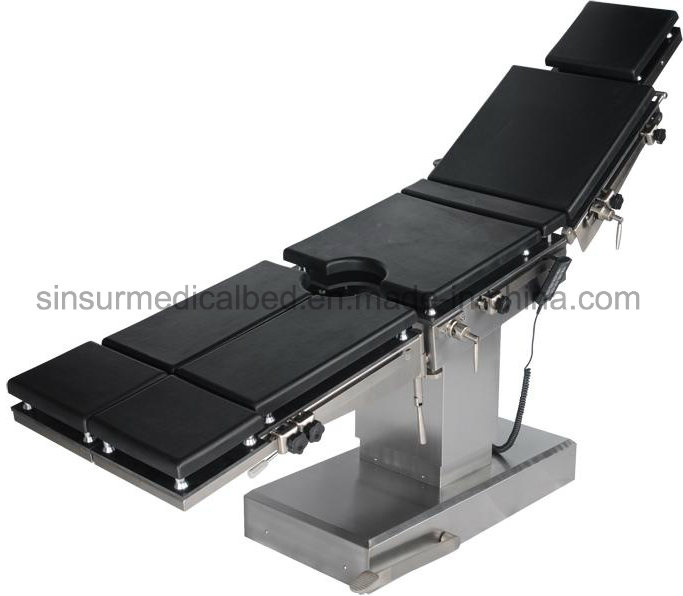

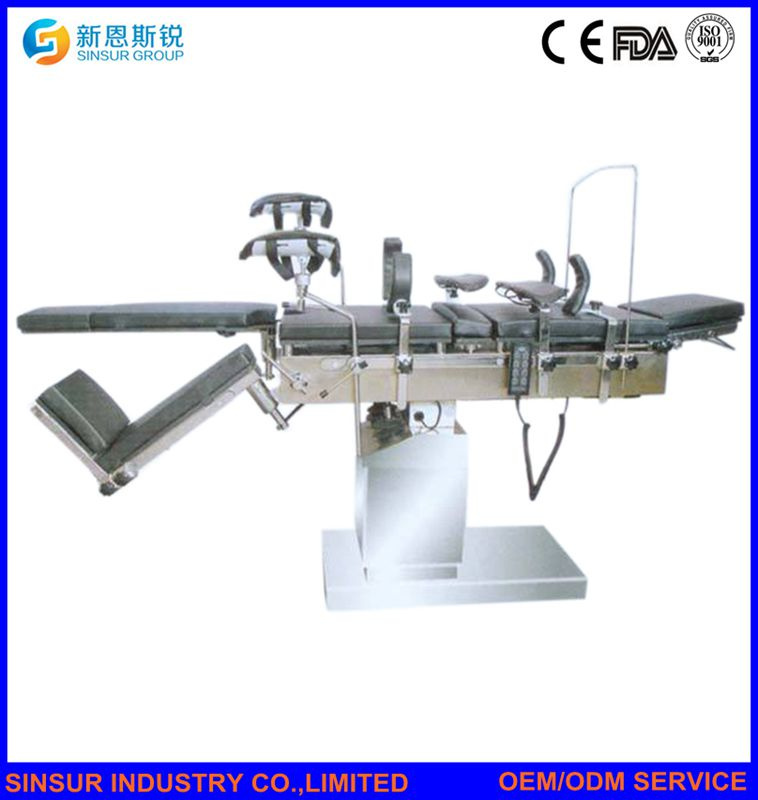

This operating table is designed for surgical procedures of the head, neck, thorax, abdomen perineum and extremities as well as gynecological, obstetrical, urological, otorhinolaryngology and cranial operations.
Our advantage
• Leg section can be rotated, opened, disassembled and adjusted easily
• The bed surface is made of high strength plastic plate, which can move forward and backward and is suitable for X-ray examination
• With 24V direct supply, the table is safe and reliable. All the adjustment of the table, like elevation, lowering, reversed Trendelenburg, lateral tilt, etc, are all effected by electric button
• Metal piece made from stainless steel, anti-rust, and easy to clean
• Integrated with rechargeable battery which can support 15 days operations
Dimension
Overall length | 2100mm |
Width | 500mm |
Head rest | 280*325mm |
Back section | 480*530mm |
Kidney bridge | 100*480mm |
Seat section | 480*530mm |
Leg section | 236*510mm |
Foot rest | 180*273mm |
Table top from floor | 750mm Min. |
Table top from floor | 1000mm Max. |
Range of movement
Max. reversed Trendelenburg | ≥15º |
Max. Trendelenburg | ≥20º |
Max. Lateral Tilt | ≥15º |
Adjustment of sections
Head rest-raised from horizon | ≥45º |
Head rest-lowered from horizon | ≥90º |
Back section-raised from horizon | ≥45º |
Leg section-lowered from horizon | ≥90º |
Leg section-opened | ≥90º |
Backward and Forward movements | ≥400mm |
Kidney Bridge elevation | ≥80mm |
Safe working load capacity | ≤135kg |
