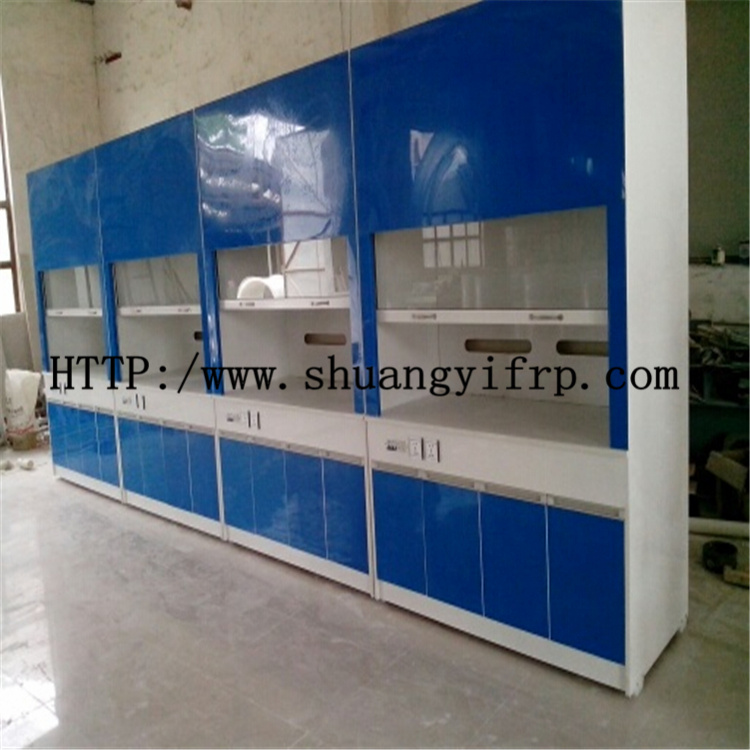

Hospital, Pharmacy Furniture, Medicine Cabinet (different materials)
| Price: |
US $ 860-1689/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
BTF-A |
| Exhaust Air Rate: |
690~1830 |
| Operation Mouth Wind Speed (M/S): |
0.3~0.7 |
| Resistance Force (mm H2O): |
5~12 |
| Operation Mouth Size (mm): |
900 X 900,1500 X 1000... |
| Boundary Dimension (mm): |
1200 X 800 X2350,1500 X 800 X 2350... |
| Material: |
Steel Wood |
Product Description
Clinic furniture,Medicine cabinet (Different material)Applicability:Shuangyi fume extraction hood system is a kind of high efficiency device specially designed for using in laboratories frequently. It is applicable to environment that has close contact with volatile corrosive substances, can remove harmful gas, smoke and dust, ensure the ideal and safe air quality, keep away hazardous substances from the human body effectively, and protect health of the user. It has been widely used in various experiment and production fields, such as electronic engineering, laser technology, chemistry, medical treatments, pharmacy, food industry, laboratories, production factories, schools and the like, which promotes the preoductivity and working performance effectively.Material Description:Tubes and joints of the system are made of polypropylene(PP), which has excellent chemical stableness, and is highly endurable to the corrosion and contamination of chemical agents;The front cover is made of polycarbonate(PC), which is good at anti-erode, and anti-heating, high strength, and can maintain the shape in high temperature(110°) smoke environment and has good transparence.Adjusting exhausting capacityMovable valve is installed inside the joint, fitting tightly with inner cavity of the joint;Stepless regulation with straight adjusting knob, which can guarantee the maximum efficiency of the exhaust system at suitable place.
Parameters:| Overall dimensions | L1200mm/1500mm/1800mm*W850mm/950mm*H2350mm |
| Color | White or white with blue on the top plate or customized
Color |
| Worktop | 20mm thickness ceramic panel
20mm thickness American DURCON epoxy resins panel
12.7mm thickness American FORMICA solid physical and chemical plate
12.7mm thickness American Wilsonart Chemsurf chemical resistant laminate
12.7mm thickness Trespa worktop |
| Body&Cabinet: | Drawer/Cupboard Cabinet/Hanging cabinet. Using 1.2~2mm thick of cold-rolled steel sheet production.
The steel parts by acid washing, phosphating and static electrical spraying with epoxy resin powder for erosion resistance. |
| Window glass | 5 mm thick glass with tempered processing |
| Inner Design | Conventional phenolic resin compact lining plate with three-level diversion design |
| Illumination | Fluorescent lamp, LED light is optional |
| Power configuration | One 30 mA electric leakage protector
Two 220 v - 10A universal socket
One 220 v - 16A socket |
| Main control panel | The LCD control panel |
| Optional configuration items | Remote control tap/ Fume hood cup slot/ Gas corker |
