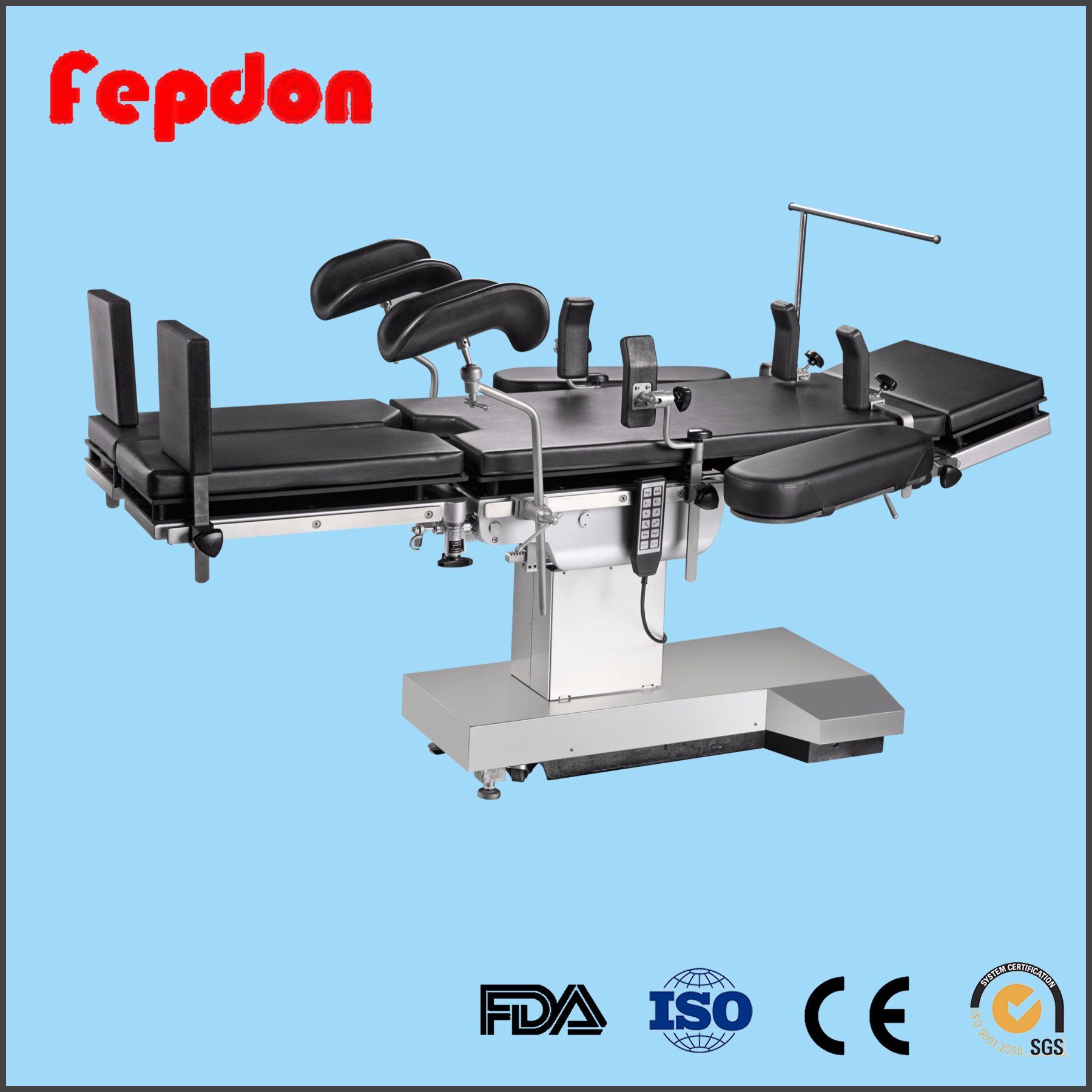

Hospital Orthopaedic Hospital Table with FDA (HFEOT99D)
Price: |
US $ 4000-4060/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Paypal,Money Gram |
Prod Model: |
HFEOT99D |
Lenth/Width: |
1970mm/500m |
Elevation(up/Down): |
690mm/1100mm |
Trendelenburg: |
30deg; |
Reverse Trendelenburg: |
30deg; |
Head Rest(up/Down): |
60deg;/90deg; |
Back Plate(up/Down): |
75deg;/35deg; |
Lateral Tilt(Left/Right): |
18deg/18deg |
Footplate(up/Down/Horizontal Positioning: |
15deg/90deg/ 90deg |
Longitudinal Sliding: |
350mm |
Power: |
220V,50Hz,1.0kw |
Type: |
Operating Table |
Kind: |
Orthopedics |
Certification: |
ISO13485 |
Group: |
Adult |
LCD Display: |
Without LCD Display |
Source: |
Oxygen |
Anesthesia: |
Semi Open Suction |
Type Of Operating Light: |
Double Operating Light |
Product Description
Hospital Orthopaedic Hospital Table With FDA(HFEOT99D)Description:This multi function operating table has the high loading capacity, stability and safety, with the new module design, it can meet nearly all the surgical demands.Features:1.With the electric hydraulic transmission mechanism, it replaces the traditional electromotive handspike, which makes the operation table moving accurately and steadily compared with other similar products.
2.Key parts of the hydraulic system are imported from abroad.
3.Elevating, moving, inclining, etc are driven by the individual power systems.
4.High-precision linear guide, it can guarantee the stable moving;
rational design can provide enough space for the doctor or C arm, it can also stabilize the operation table.
5.All of the surgical table and the accessories are made of 304 stainless steel, easy for cleaning and sterilization.

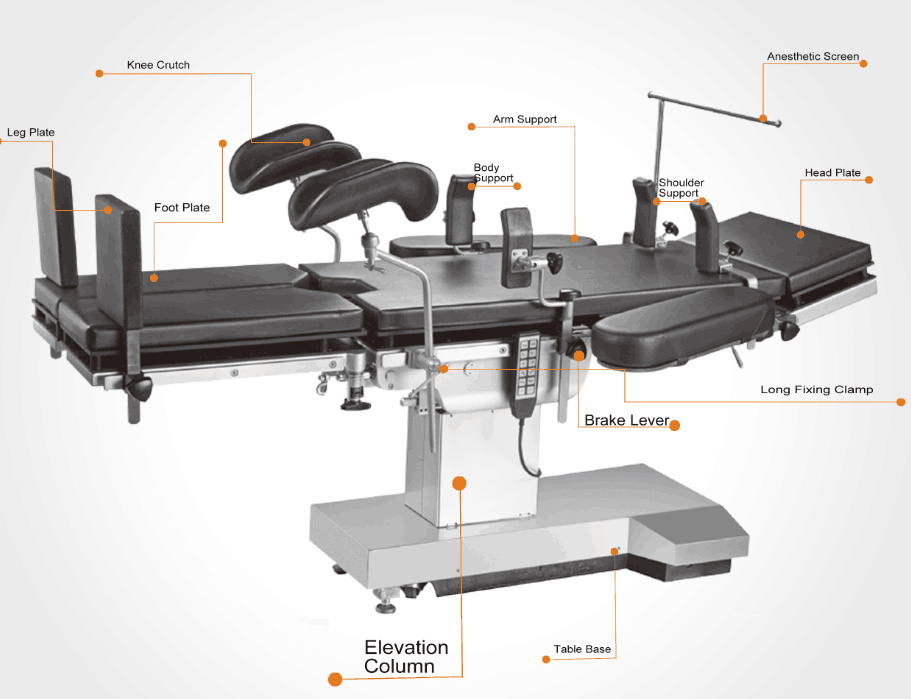

Mattress is made of high density memory sponge Product components:Head plate, kidney bridge handle, remote control, elevation column, body support, leg support, detachable plate, fixing clamp, optional panel controller, brake system, etc.![](/proimages/44f3j00JzVTmIwdQrcn/hospital-orthopaedic-hospital-table-with-fda-hfeot99d-.jpg)
![](/proimages/44f3j00duitmVAJGzcO/hospital-orthopaedic-hospital-table-with-fda-hfeot99d-.jpg)

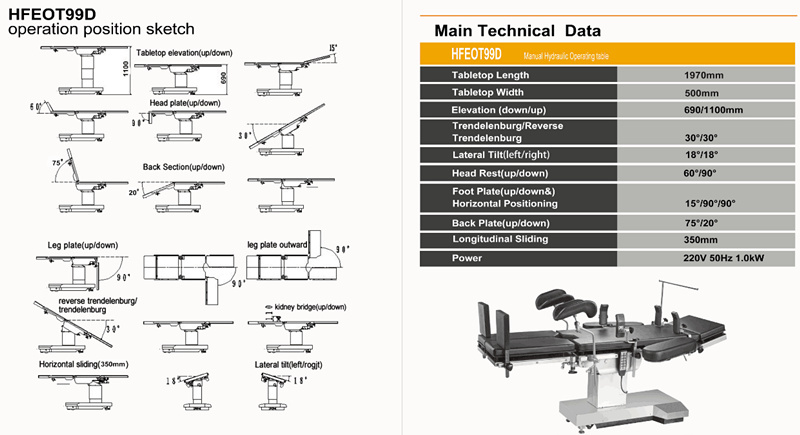

Technical parameters: Type : | OPT FPD-700 |
Length : | 1960mm |
Width : | 500mm |
Height adjust scope : | 690-1100mm |
Customized lowest height : | 500-750mm |
Customized rising height : | 200-500mm |
Forward/Backward tilt : | ≥30° |
Table longitudinal scope : | 350±50mm |
Left tilt/right tilt angle : | ≥18° |
Head board up/down : | 40°/ 90° |
Kidney Elevator : | ≥110mm |
Leg Board up : | ≥15° |
Leg Board down : | ≥90° |
Leg evagination : | ≥90° |
Back board up : | ≥90° |
Back board down : | ≥40° |
Power: | 220V 50Hz |

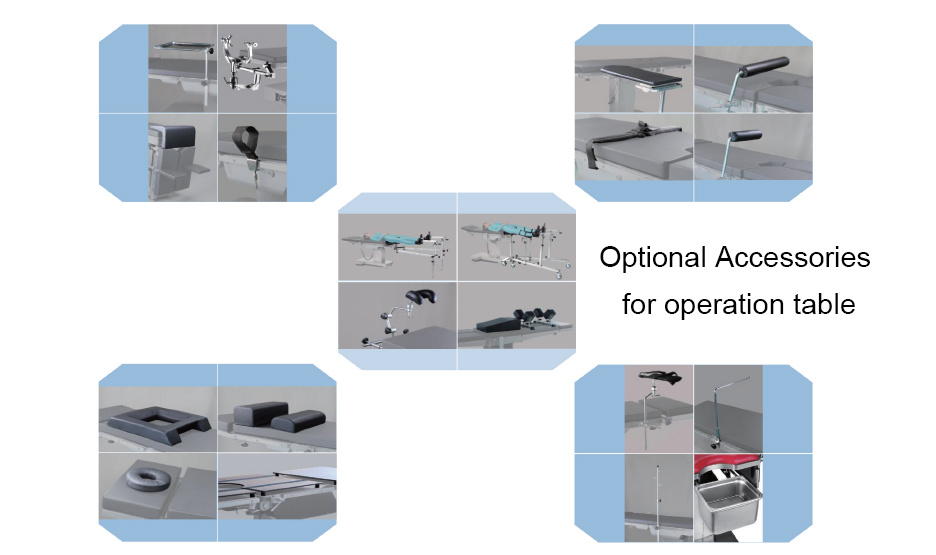

Standard Accessories |
Anaesthesia screen : | 1 piece |
Shoulder support : | 1 pair |
Body support : | 1 pair |
Arm support : | 1 pair |
Leg support : | 1 pair |
Foot plate : | 1 pair |
![](/proimages/44f3j00TrWadUwgHucm/hospital-orthopaedic-hospital-table-with-fda-hfeot99d-.jpg)
![](/proimages/44f3j00TgVtArmzhuqd/hospital-orthopaedic-hospital-table-with-fda-hfeot99d-.jpg)
FAQ1. What is the mode of payment? TT,Western Union,L/C2. How do you ensure the products quality? Production / inspection report before your order packed.we have obtained CE and ISO Certificate.3. Whether provides OEM of operating bed,surgicla lamp, medical pendant? Yes4. How long is the delivery time? 3-7days5. What are the certificates of products? CE,FDA,ISO, free sale6. Can you put our logo on products?
Yes, please tell us your detail information, before packing will put your logo on the product and show you pictures.
7. How about your after-sale service?
We have a professioanl team to responsible for your after- sale service.
Once the order confirmed, we have professional servier follow this order, will take photo for you every step. will take pictures before packing and shipping. you still supervise order for every step although you are not in the spot.

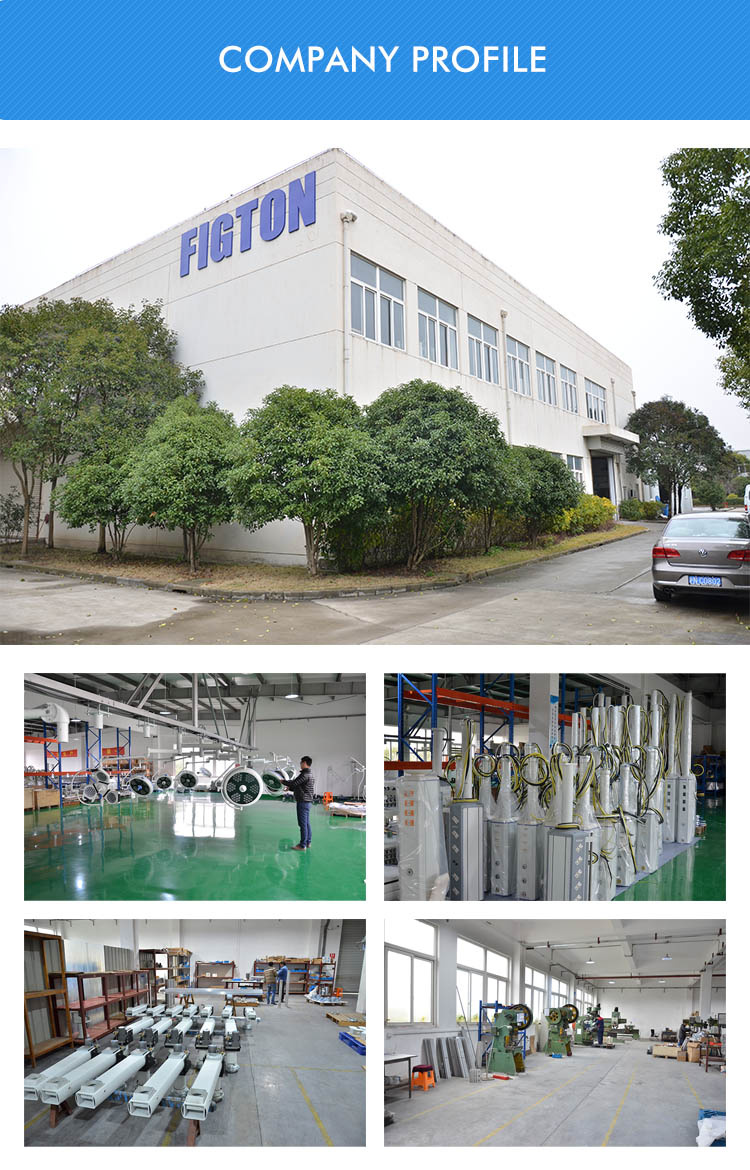

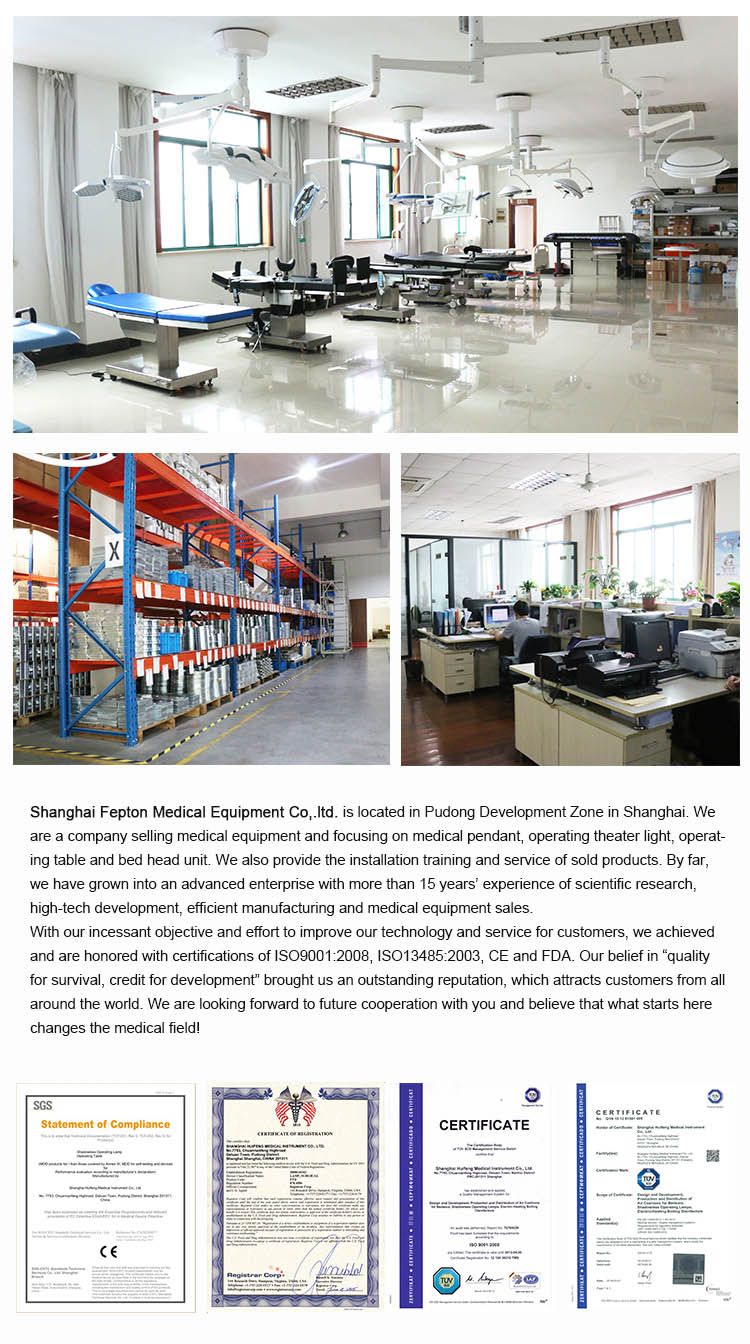

Founded in 2009, FEPDON is a medical equipment manufacturer and our mainly products including the medical pendant, ICU pendant, shadowless operating lamp, operation table, medical IT power supply system, medical airtight door, laminar flow ceiling, transferring windows, etc and the clean room engineering fitting parts. Our factory is located in Heqing industrial park, Shanghai Pudong new area, our factory occupies 20000m2, with 100 workers and 10 senior engineers, it has the welding workshop, mechanical processing workshop, assembly workshop, warehouse workshop, etc. Our company has the R&D center, production center and quality testing center to ensure our product with good quality, reasonable design and the competitively price. High quality materials and parts are used which makes our products with high performance, and we can also fabricated according customers' requirements. We are one of the top 3 suppliers in China in both the products and the clean room project engineering, and our products has been exported to Middle East, Russia, Southeast Asia, Africa, etc, and warmly welcomed by our customers.
We are a subsidiary company of FEPDON group, our headquarters is in Hubei Province, China, and is a top group in the clean room project engineering area, it has more than 200 technology workers, 26 sensor engineers, 62 intermediate engineers, 35 1st National certified architects, 22 2ND National certified architects, 8 National clean room engineers, 2 International clean room engineers. Not only the medical gas system products, we can also provide the turnkey projects of the medical clean room project engineering, such as the medical building design and layout, surgery room cleaning project, laboratory cleaning engineering, medical building decoration engineering, medical central air conditioning project, building electrical engineering, building intelligent system project, medical gas project, etc. The medical clean room engineering projects includes the operating room, ICU (intensive care unit), central sterile supply department, biosafety laboratory, reproduction medicine center, hospital clean sterile ward, clinical laboratory, laminar air flow ward, medical gas supply system, ect.
We have the lots of experiences in both of the products design, manufacturing and the engineering projects, we can provide the good quality products and the turnkey projects of the clean room engineering for hospital, and it also includes the project hosting services.
