| Prod Model: |
OB. DL. B |
| Application: |
Electrical Operating Bed |
| Feature: |
X-ray Compatible |
| Color: |
Black |
| Length: |
2000±50mm |
| Width: |
480±20mm |
| Min-Max Height:(: |
750-950)±50mm |
| Certification: |
ISO13485 |
Product Description

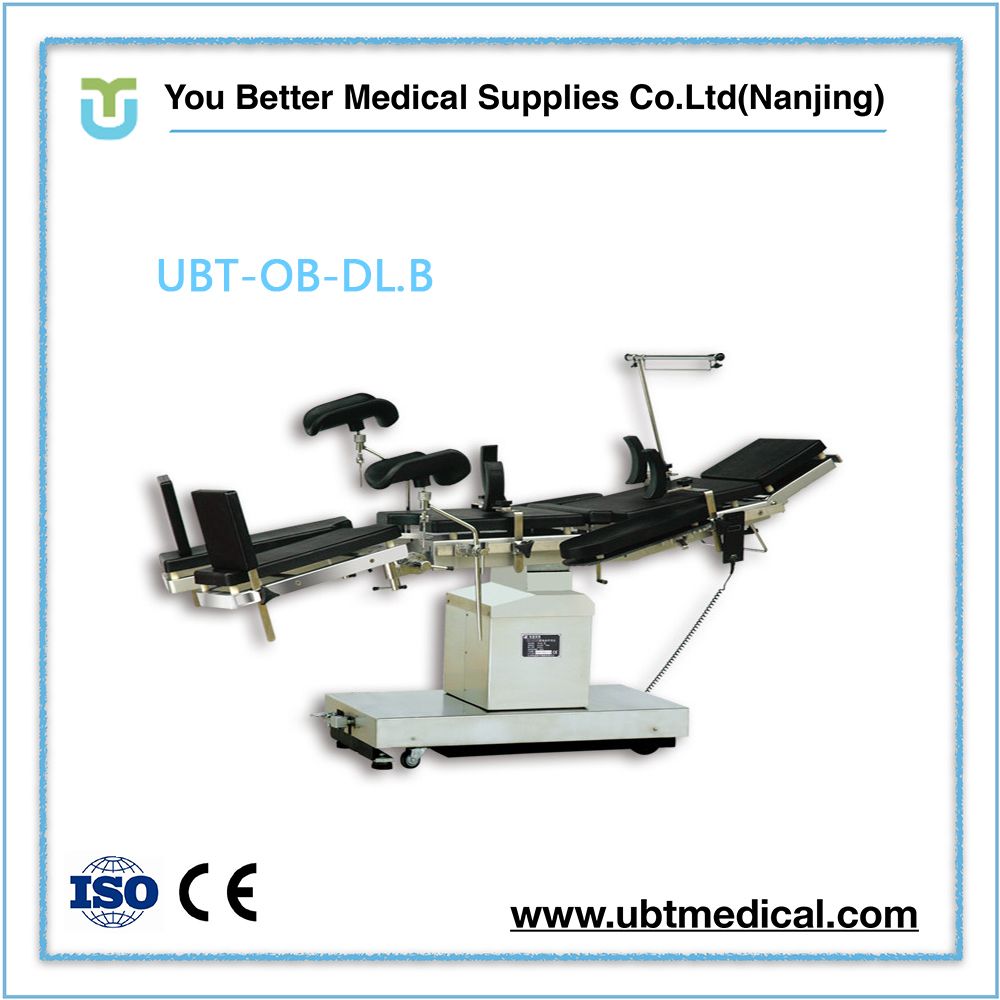

New style c-arm interventional radiology operation bed
Features
The bed surface adopts imported carbon plastic plate which is easily for conducting X-ray examination.
The elevating of operating table is controlled according to electric hydraulic working principle by remote controller, other actions are pneumatic and mechanical controlled.
The mattress is once foam molded by polyurethane with homogeneous force,
easily cleaned and sterilized.
Imported brand motor without noise and with long life-span.
The base adopts high quality 304 stainless steel which can be easily cleaned and sterilized.
Foot treadle brake device which is easy for moving operating table.
TECHNICAL SPECIFICATION:
| Length:2000±50mm |
| Width:480±20mm |
| min-max height:(750-950)±50mm |
| forward ≥25° backward ≥35° |
| leftward≥20° rightward≥20° |
| head board fold upward:≥40° fold downward:≥90° |
| leg board fold downward:≥90° fold outward:≥90° |
| back board fold upward:≥45° fold downward:≥20° |
| waist board lifting: ≥100mm |
| mains voltage:AC 220V±10% 50Hz |
| input power:≤150VA |
PRODUCT ADVANTAGE:
| 1.Imported Denmark Linak gear engine |
| |
| 2.Do X-ray |
| |
| 3.Up and down movement performed electric |
| |
| 4.Other movements performed manual |
