| Prod Model: |
THR-DC510 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
L1880mm*W920mm* H560mm |
| Leg Segment Angle: |
-80°-10° |
| Caster: |
Dia.100mm |
| Electric Donnation Chair OEM: |
Available |
| Back Segment Angle: |
-10°-80° |
| Height Adjustment: |
290mm |
| Function Control Way: |
Electric Motors Control Adjustment |
| Maximum Safe Load: |
240kg |
| Seat Segment Angle: |
0°-30° |
| Motors: |
3 PCS |
Product Description
Product Description

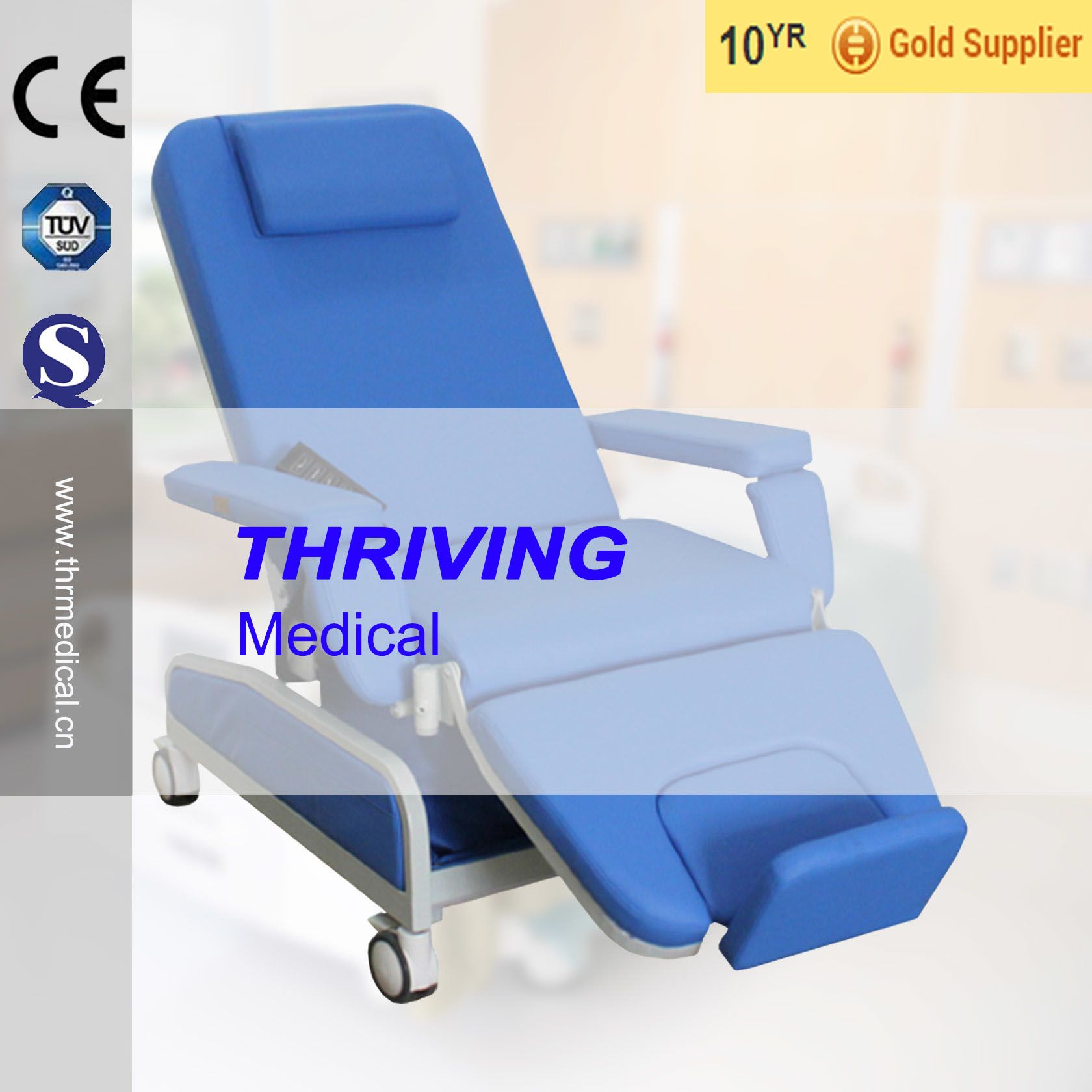

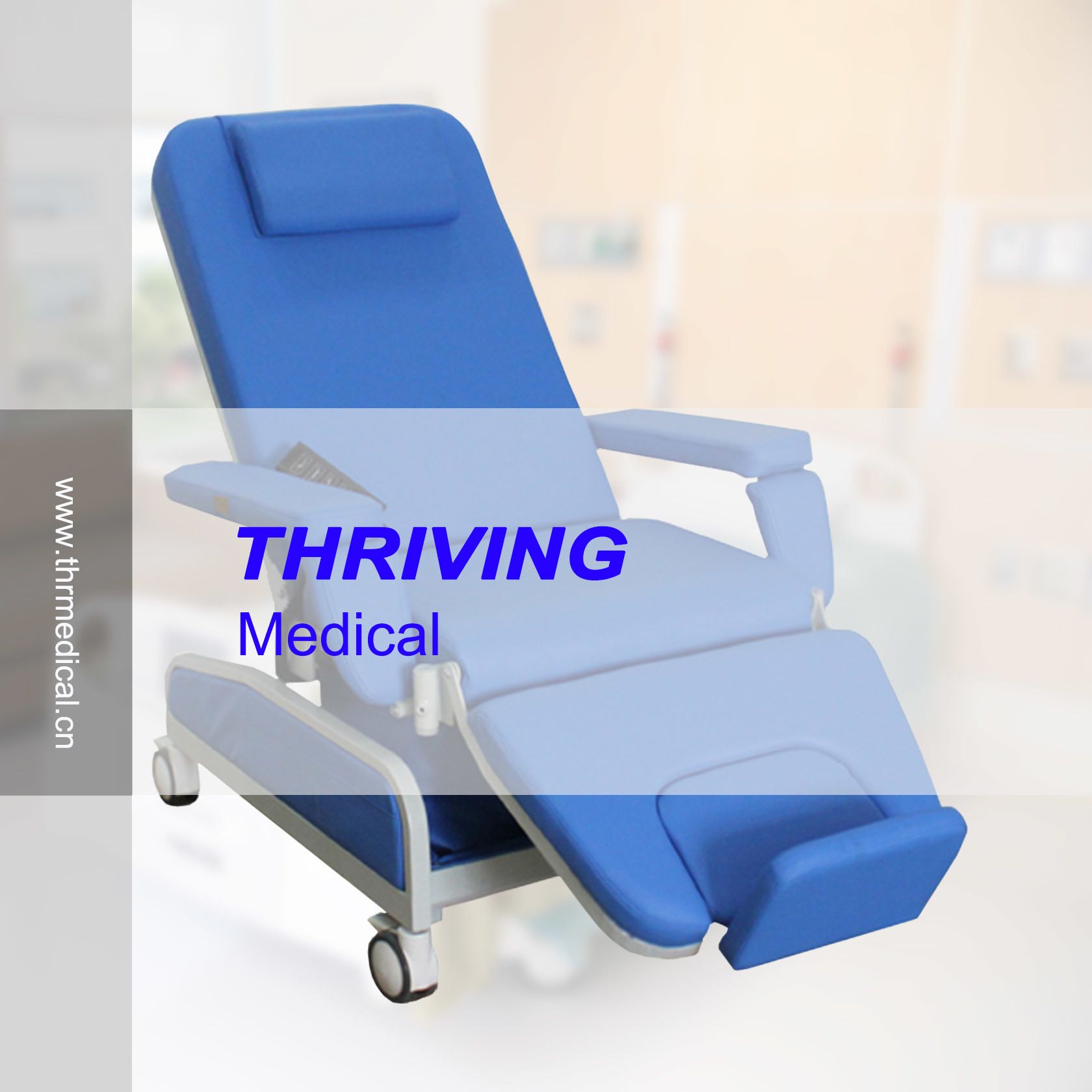

THR-DC510 Medical electrical dialysis chair
Modern design, high quality materials and detailed finishing of the upholstery,
As well as mechnical and electrical parts underline the high standard of the comfort-line.
Continuous adjustment to all sitting and lying positions.
A 3-dimensional adjustable armrest,
An electrically adjustable footrest,
As well as a height adjustable headrest provide comfort for your patients.
The base frame with a maximum safe load of 240kg,
Offers a high stability also in the horizontal position.
-Humanization and Comfortable design
Taking the aero seat as the prototype improvement, upholstery with polyurethane, luxurious, comfortable and durability. We've designed the chair to work with a patient's body.
-Multi-position adjustment:
Adjusting backrest and legrest, the overall increase and full trendelenburg position by electromotion through reliable static motor.
Saving Space:
-Only 1.2 Square Meters. Space required, saving about 40% space than the tradition medical bed.
Dimension | Adjustments |
| Seat segment width | 600mm | Back segment angle | -10° -80° |
| Chair width, including armrests | 920mm | Seat segment angle | 0° -30° |
| Total length | 1880mm | Leg segment angle | -80° -10° |
| Total weight | 85kg | Height adjustment | 290mm |
| Ground clearance | 120mm | | |
| Caster | dia. 100mm | Electrical specifications |
| Back cushion | 190*490*120mm | Power supply | AV220± 20V/50HZ 100VA |
| Cushion | PU foam | Motors | 3 |
| Upholstery | PVC leather | | |
| Frame | Q235 steel | Safe maximum load | 240kg
|
