Shanghai FEPDON Medical Equipment Co., Ltd. >> Hospital Mechanical Surgery Orthopedic Tables with Kidney Bridge

Hospital Mechanical Surgery Orthopedic Tables with Kidney Bridge

Hospital Mechanical Surgery Orthopedic Tables with Kidney Bridge
Price: US $ 1650-1720/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Money Gram
Prod Model: HFMH3008AB
Lenth/Width: 2010mm/500mm
Elevation(up/Down): 760mm/1010mm
Trendelenburg: 22deg;
Reverse Trendelenburg: 22deg;
Head Rest(up/Down): 60deg;/70deg;
Back Plate(up/Down): 75deg;/15deg;
Lateral Tilt: 20deg /20deg
Brand: Fepdon
Gross Weight: 247kg
Warranty: 1 Year
Type: Operating Table
Kind: Orthopedics
Certification: ISO13485
Group: Adult
LCD Display: Without LCD Display
Source: Air
Type Of Operating Light: Single Operating Light

Product Description

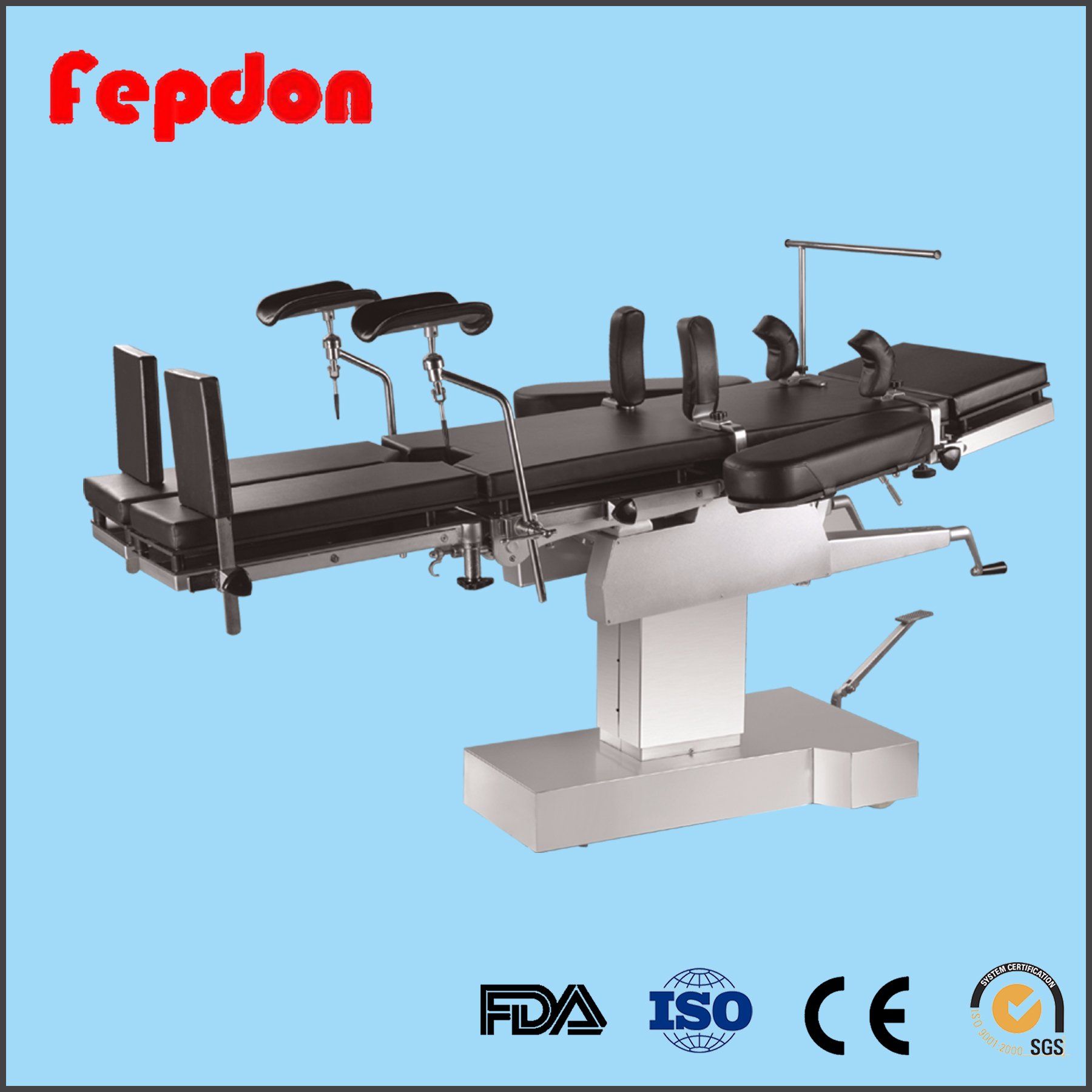

Hospital Mechanical Surgery Orthopedic Tables With Kidney Bridge


Description:

HFMH3008AB is all mechanically head operated, hydraulic pressure increase or decrease It adopts full stainless steel as its material with nice appearance and compact structure,tabletop can be X-raying available.


Aavantage:

1.This table are compactly designed and sturdily constructed, and may be raised or lowered hydraulically by means of an oil pump.

2.They are suitable for surgical procedures of the head, neck, thorax, abdomen, perineum and extremities as well as for gynaecological, obstetrical, urological and oto-rhino-laryngological operations.

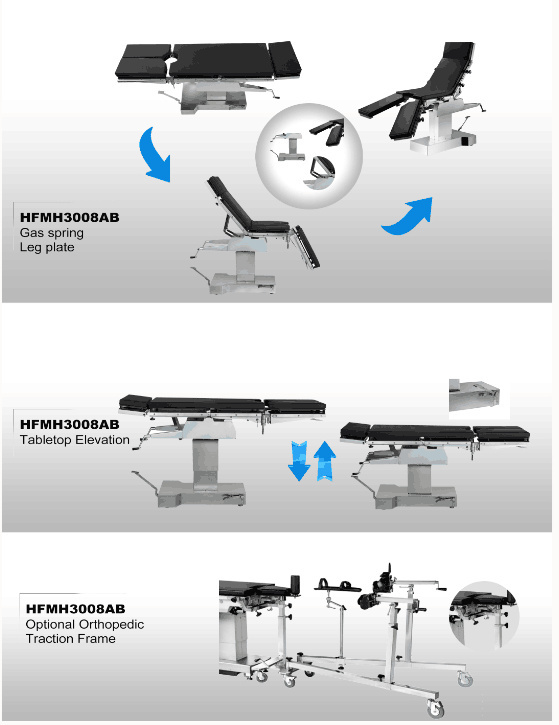

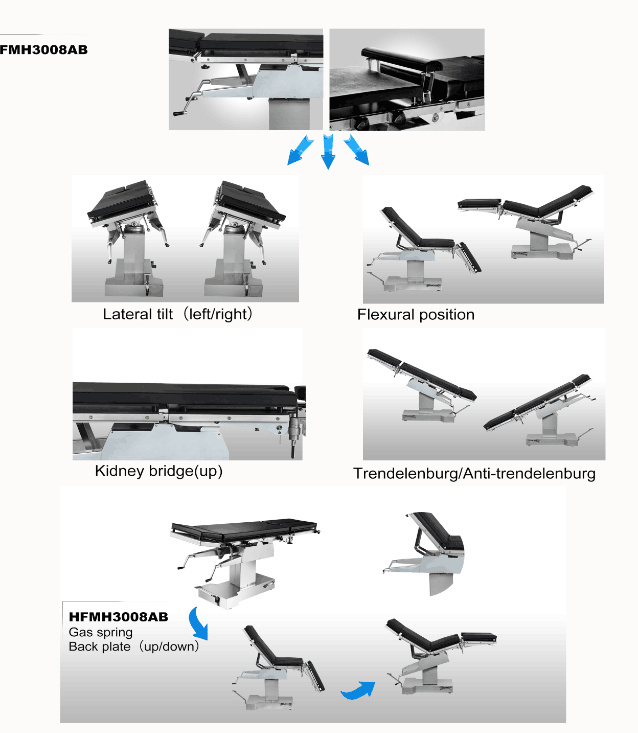

3.Various positions can be quickly and safely adjusted.

4.The controlling devices, hand wheels and crank handles are mounted at the headend of the table.

5.All positions of the table are controlled entirely from the head-end.

6.The table is double dimensions. Chassis inside & outside cover of model 3008AB are stainless steel .

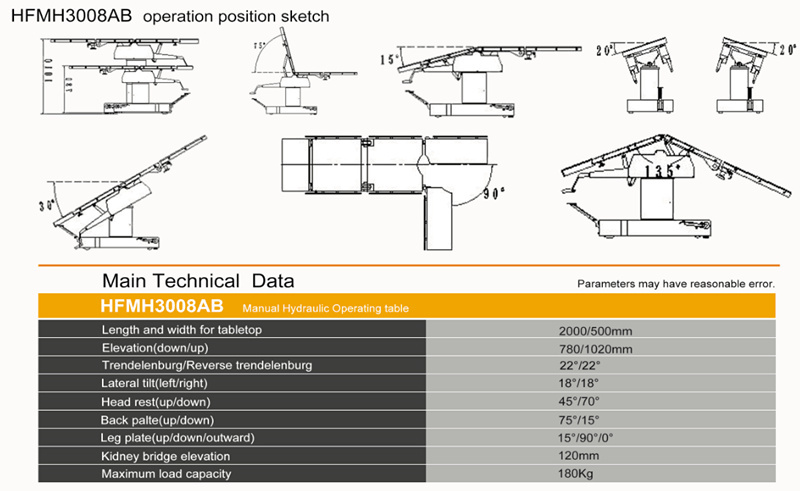

Main Technical Data:

TypeHFMH3008AB (With kidney Bridge)
Lenth/width2010mm/500mm
Elevation(up/down)760mm/1010mm
Trendelenburg22°
Reverse Trendelenburg22°
Lateral Tilt(left/right)20/°20°
Head Rest(up/down)60°/70°
Leg Plate(up/down)85°/ 90°
Back plate(up/down)75°/15°
Warranty1 year
Delivery time7 workingdays

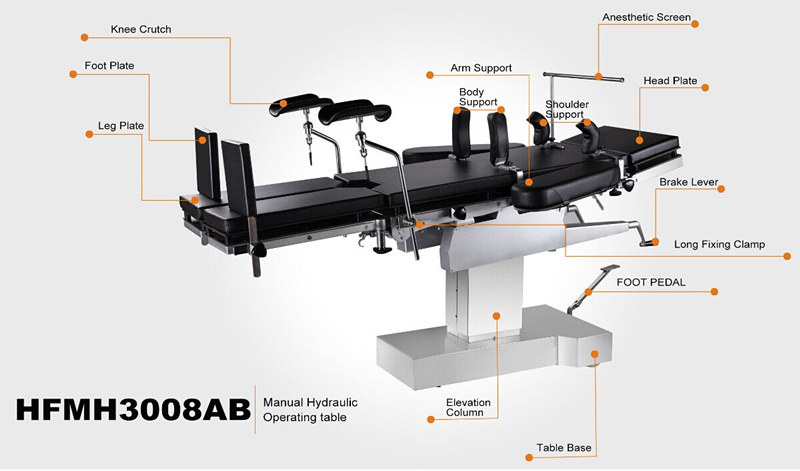

Standard accessories:
Accessories Quantity
Anaesthetic Screen1
Shoulder Rest  2
Arm Support2
Waist Support2
Knee Crutch2
Foot Plate2
Long Slider2






FAQ

1. What is the mode of payment?
  TT,Western Union,L/C

2. How do you ensure the products quality?
  Production / inspection report before your order packed.we have obtained CE and ISO Certificate.

3. Whether provides OEM of operating bed, surgical lamp, medical pendant?
  Yes

4. How long is the delivery time?
  3-7days

5. What are the certificates of products?
  CE,FDA,ISO, free sale

6. Can you put our logo on products?
   Yes, please tell us your detail information, before packing will put your logo on the product and show you pictures.


7. How about your after-sale service?
We have a professioanl team to responsible for your after- sale service.
Once the order confirmed, we have professional servier follow this order, will take photo for you every step. will take pictures before packing and shipping. you still supervise order for every step although you are not in the spot.

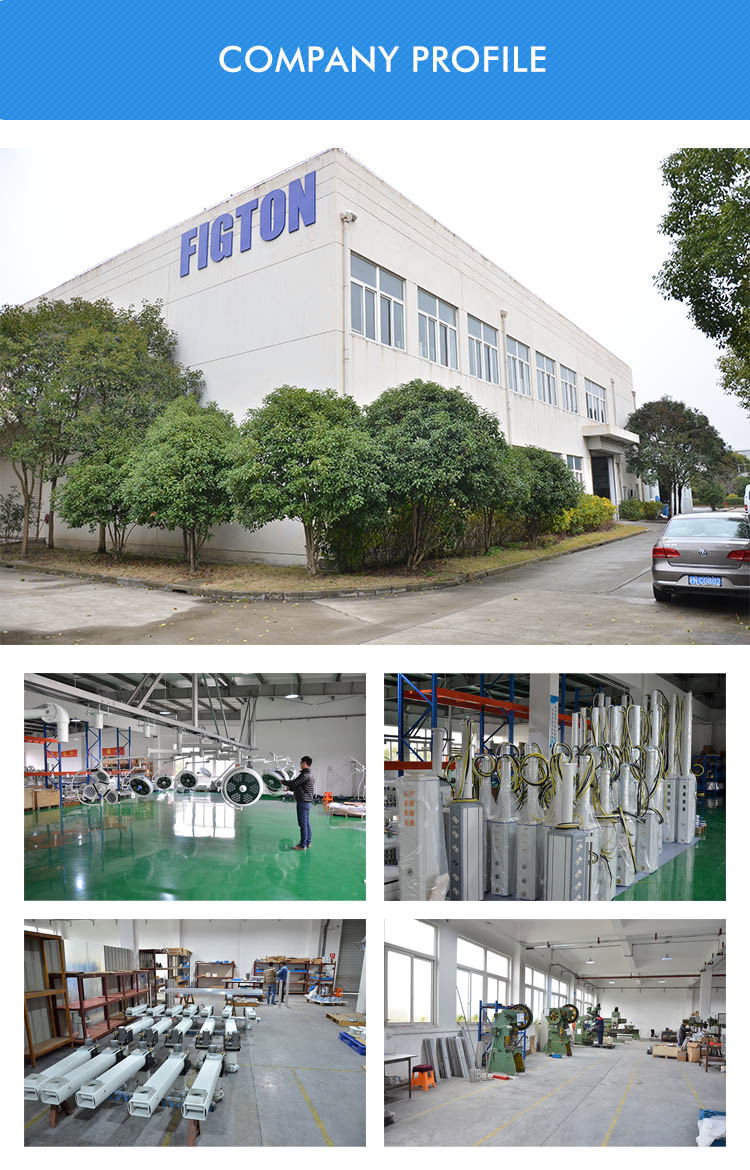

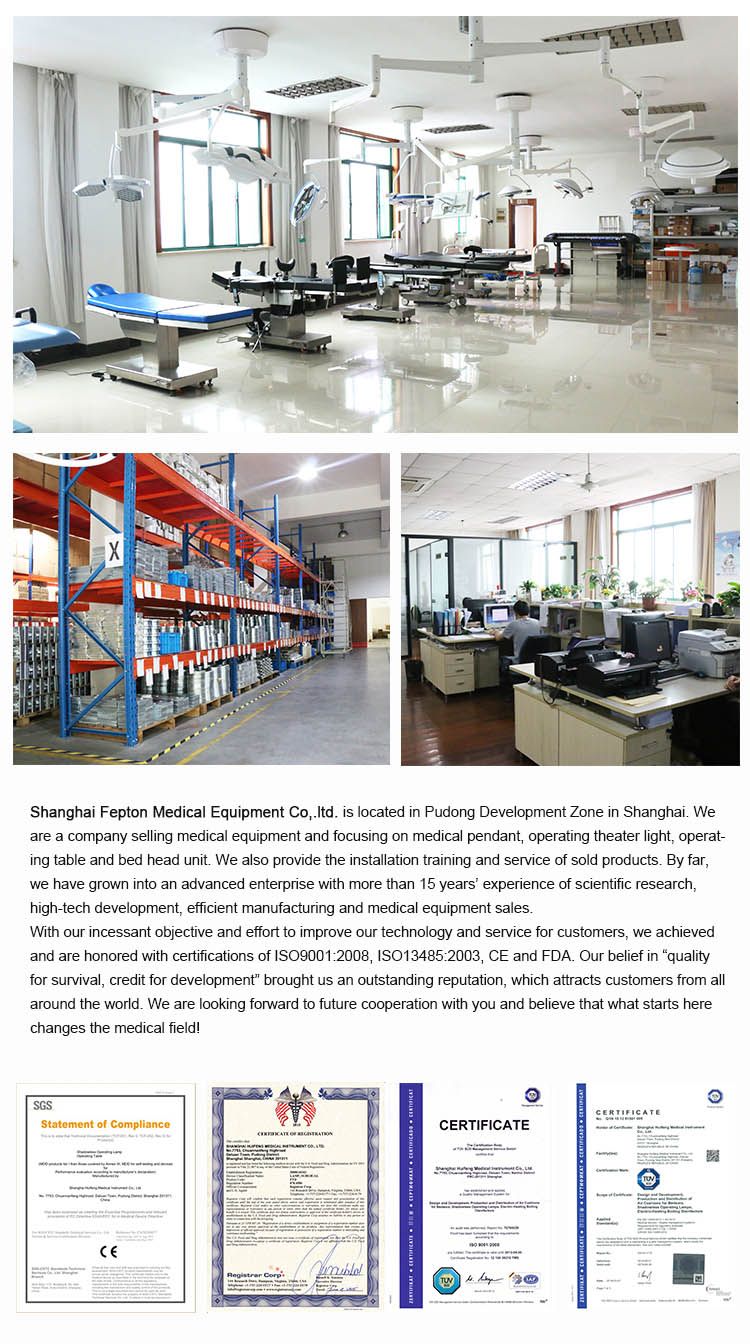

Founded in 2009, FEPDON is a medical equipment manufacturer and our mainly products including the medical pendant, ICU pendant, shadowless operating lamp, operation table, medical IT power supply system, medical airtight door, laminar flow ceiling, transferring windows, etc and the clean room engineering fitting parts. Our factory is located in Heqing industrial park, Shanghai Pudong new area, our factory occupies 20000m2, with 100 workers and 10 senior engineers, it has the welding workshop, mechanical processing workshop, assembly workshop, warehouse workshop, etc. Our company has the R&D center, production center and quality testing center to ensure our product with good quality, reasonable design and the competitively price. High quality materials and parts are used which makes our products with high performance, and we can also fabricated according customers' requirements. We are one of the top 3 suppliers in China in both the products and the clean room project engineering, and our products has been exported to Middle East, Russia, Southeast Asia, Africa, etc, and warmly welcomed by our customers.

We are a subsidiary company of FEPDON group, our headquarters is in Hubei Province, China, and is a top group in the clean room project engineering area, it has more than 200 technology workers, 26 sensor engineers, 62 intermediate engineers, 35 1st National certified architects, 22 2ND National certified architects, 8 National clean room engineers, 2 International clean room engineers. Not only the medical gas system products, we can also provide the turnkey projects of the medical clean room project engineering, such as the medical building design and layout, surgery room cleaning project, laboratory cleaning engineering, medical building decoration engineering, medical central air conditioning project, building electrical engineering, building intelligent system project, medical gas project, etc. The medical clean room engineering projects includes the operating room, ICU (intensive care unit), central sterile supply department, biosafety laboratory, reproduction medicine center, hospital clean sterile ward, clinical laboratory, laminar air flow ward, medical gas supply system, ect.

We have the lots of experiences in both of the products design, manufacturing and the engineering projects, we can provide the good quality products and the turnkey projects of the clean room engineering for hospital, and it also includes the project hosting services.
