| Prod Model: |
THR-C101A02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bumper Device: |
Available |
| Castors: |
Dia.125mm |
| Size: |
2050*980*580-880mm |
| OEM: |
Available |
| Factory Location: |
Two-Hour Away From Shanghai |
| Material: |
Metal |
| Type Of Hospital Bed: |
Manual Bed |
| Folded: |
Unfolded |
| Using Ambient: |
Hospital |
| Numbers Of Function: |
Five-function |
| Certification: |
ISO13485 |
Product Description

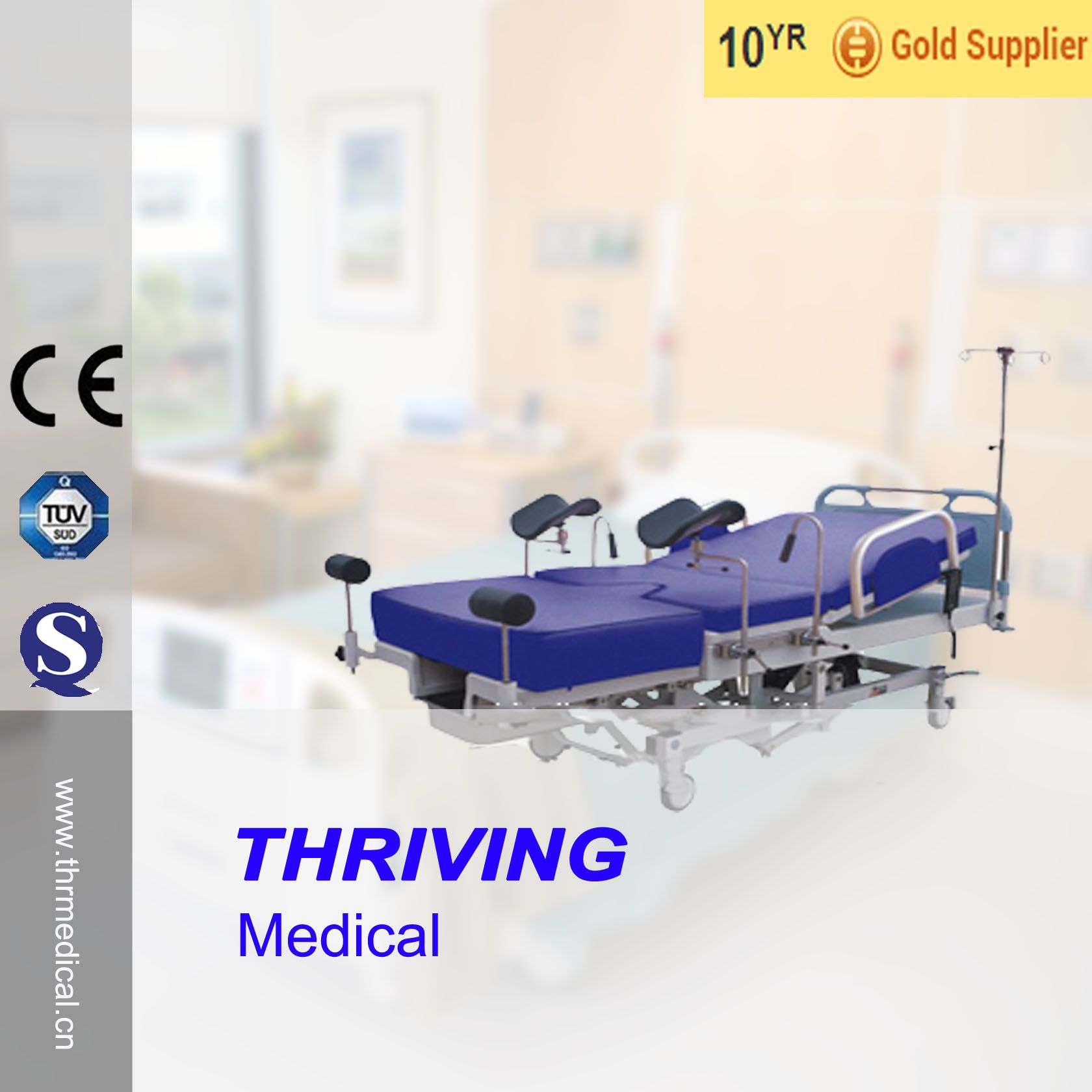

Gynecology Operation Table(THR-C101A02)
---THR-C101A02 Operating Table (comfortable) nursing the lying-in woman through all stages of parturition, including labor, delivery and recovery stage.
---It can be easily changed into chair position to protect lying-in women from transfer from one bed to another.
---Electric controlled height adjustment, tilt adjustment and back section adjustment greatly enhance the work efficiency of the nurses.
Descriptions:
A. Use imported European brand of motor and driven system.
B. Centre brake and swivel system make the bed stable.
C. Rotating side rails are easily operated.
D. Minimum height enables patient get on the bed easily.
E. Leg holder lockable, can turn forward & backward, left & right, height also adjustable.
F. I. V. Stand, height adjustable.
G. Head board, LED board moveable...
H. Cushion for newborn baby used during parturition.
J. Stainless steel basin and flume moveable for washing.
K. Grab handle for lying-in woman to exert her strength.
L. Cushion ventilating, water proof, soft and three different colors available, i. E. Rose, pink and blue.
M. Foot switch and hand control optional.
Technicial Parameter:
1. Bed dimension including bed end and bumper wheel:
2. Length2050mm, width 980mm
3. Bed dimension: Length 1815mm, width 880mm
4. Bed height: Lowest≤ 580mm, highest≥ 950mm (exclude the cushion)
5. Back section turning: ≥ 70°
6. Trendelenburg and reverse trendelenburg: Reverse trend≥ 5° , trend≥ 12°
7. Leg section telescope: 550mm
8. Castor dia.: 125mm
Standard accessories
L Leg holder 1pair
L Clamp 1 pair
L Grab handle 1 pair
L Foot rest 1 pair
L Basin 1 PC
L Water proof cushion 1 set
L I. V. Stand 1 PC
L Cushion for newborn baby 1 set
L Cushion 1 set
(includes back cushion, seat cushion and assist platform cushion)
L Electric wire 1 PC
L Foot switch (or hand control) 1 PC (optional)
