| Prod Model: |
HS840, HS1300 |
| Style: |
Horizontal |
| Advantage: |
Without Noise |
| Warranty: |
1 Year |
| Type: |
Separation Type |
Product Description

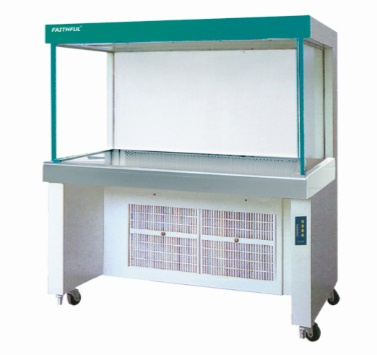

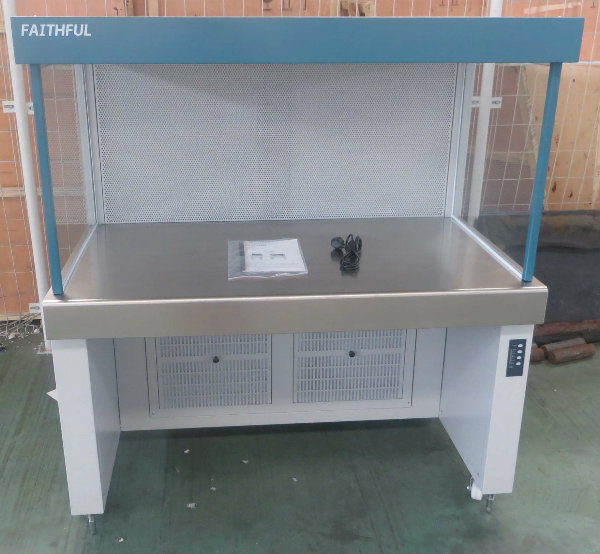

Horizontal Type Laminar Flow Cabinet (HS840, HS1300)Uses:Laminar Flow Cabinet is widely used in the field of electron, national defense, precise instrument, meter, pharmacy and chemical experiment etc.
Characteristics:1. Horizontal laminar flow, open bench board.
2. Stainless steel bench board and tempered glass side-boar; Slim filter without division-plate.
3. Pre-filtering blowing rate is freely adjustable.
| Model | HS840 | HS1300 |
| Applicable Station | one person one side | two persons one side |
| Airflow Direction | Horizontal |
| Function | Cleanliness | Class 100 |
| Collection Efficiency | ≥99.9% of 0.5um particle |
| Colony Count | ≤0.5/vessel (petri dish is φ90mm ) |
| Wind Speed | initial:0.6(m/s), final:0.2 (m/s) |
| Wind Speed Range | 0.2-0.6 (m/s) |
| Noise Level | ≤62db |
| Vibration Semi-Peak Value | ≤3um |
| Illumination Intensity (Lx) | ≥300LX(Activity Center) |
| Work Surface Bearing | 50kg |
| Composition | Inner Chamber | Stainless steel plate |
| Outer Shell | Cold rolling steel electrostatic spraying exterior |
| Operation door | No |
| HEPA Filter(mm) | 760*610*50 one piece | 610*610*50 two pieces |
| Pre-Filter (mm) | 760*610*5 one piece | 610*610*5 two pieces |
| Fluorescent Lamp | 20W*1 | 30W*1 |
| UV Lamp | 20W*1 | 30W*1 |
| Bottom Fan | 300W one piece | 300W two pieces |
| Controller | Display | LED |
| Wind Speed Control | Intelligent multi-level adjustable |
| Additional Function | The bottom horizontal adjustment, one key to open and close lighting sterilization |
| Specification | Inner Size (W*L*H)(mm) | 660*650*570 | 1210*660*570 |
| Exterior Size (W*L*H)(mm) | 840*825*1340 | 1300*810*1440 |
| Packing Size (W*L*H)(mm) | 1040*1020*1620 | 1460*990*1570 |
| Max Power | 0.4kW | 0.8kW |
| Current Rating(50/60Hz) | AC220V/1.8A | AC220V/3.6A |
| NW/GW kg | 120/170 | 170/235 |

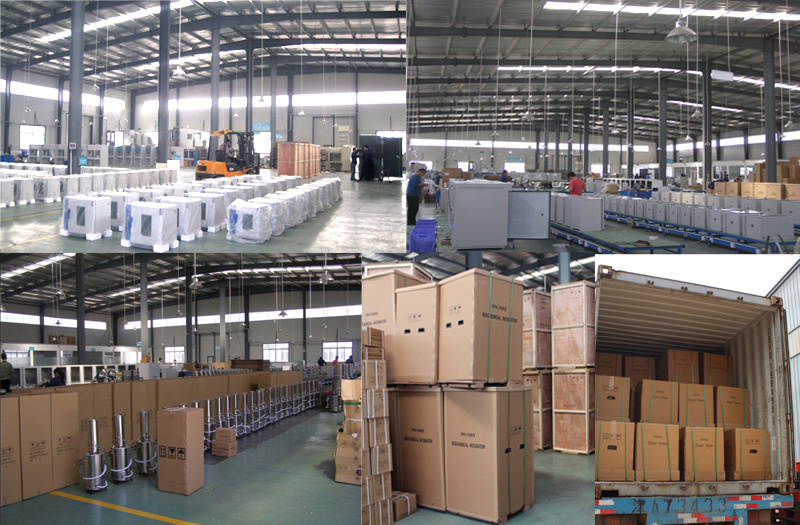

Huanghua Faithful Instrument Co., Ltd, founded in 90s and located in coastal city-HuangHua, our factory covered 40, 000 square meters, with more than 200 employees. Huanghua Faithful Instrument Co., Ltd is a specialized supplier of scientific and laboratory instruments. Faithful has established enviable reputation for its ability to design and manufacture high quality products, now we are dedicated to developing and manufacturing instruments as well as distributing world-renowned products and offering unmatched scientific performance and proven value.
We have obtained ISO9001 and passed the CE Certificate. Presented as a high level of instruments manufacture, our products cover more than 20 series of Instruments for Laboratory, including 120 categories. We provide a wide range instruments which include Drying Oven, Incubator, Magnetic Stirrer, Heating Mantle, Stainless Steel Water Still, Growth Chamber with Humidity Control, Furnace, Water Bath, Laminar Flow Cabinet, Disintegrator, Vortex Mixer etc. Designed in compliance with the international norms, these products meet the application requirements of research institutes, laboratories and other sectors
Our excellent quality combine with our competitive pricing structure has made us continuous research and development of high quality products to fit the various needs of each customer. Based on our excellent service quality, professional enterprise image and united team, now we are the renowned supplier for worldwide customers.
We thanks for the concerns and supports from all over the wide customers, we are keep on striving to offer quality product and complete service for our customers, and we are looking forward to seeking long-time cooperation with old and new friends.
