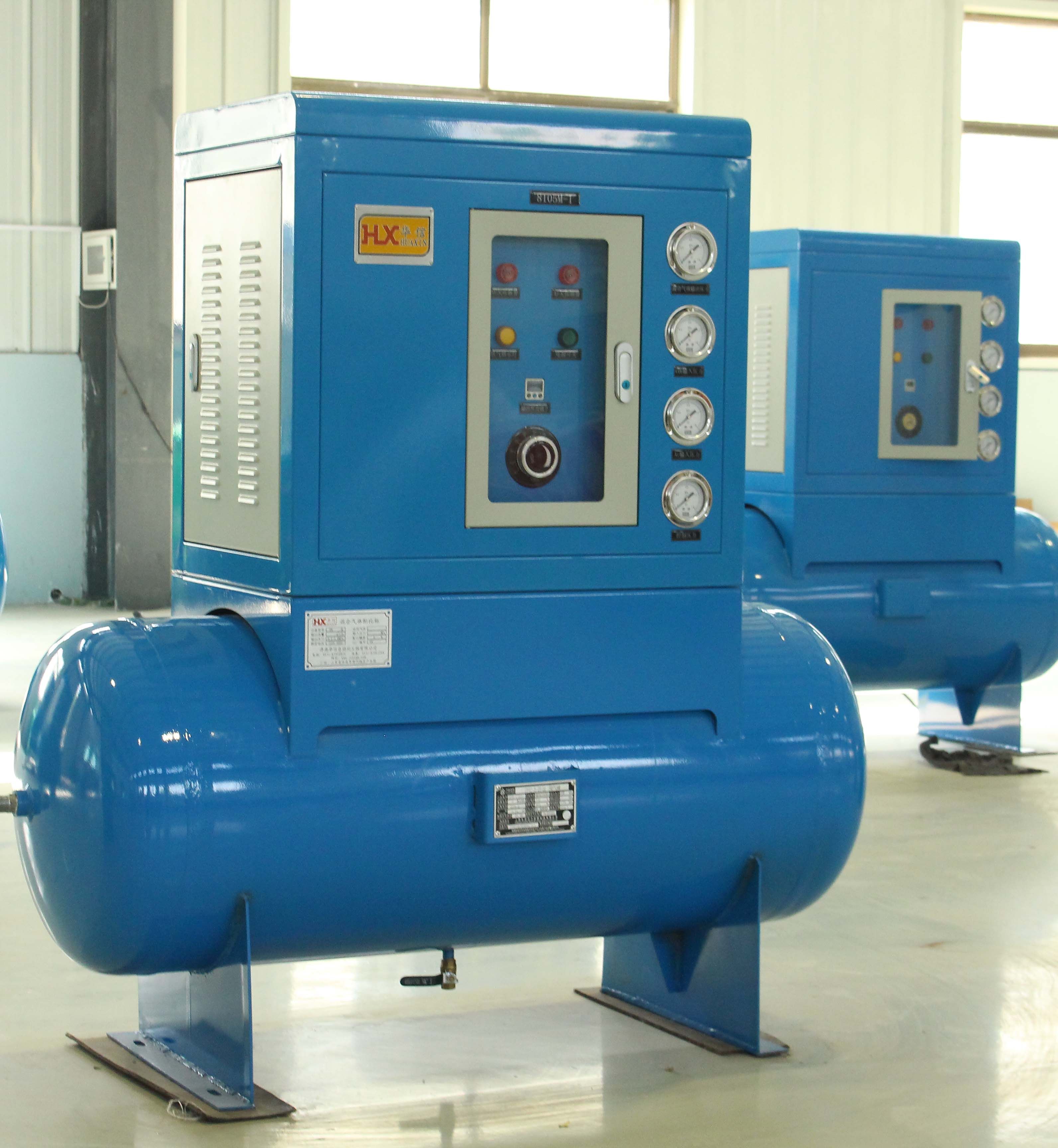

Horizontal Type Gas Mixture Proportion Cabinet From Manufactory

Name: Horizontal Type Gas Mixture Proportion Cabinet From Manufactory
Brand: thisfurniture.com
SKU: 722495842
Availability: InStock
Rating: 4.4 (118 reviews)

Price:	US $ 5500-6500/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	8200
Color:	Blue
Task:	Adjust
Structure:	Combination
Mathematical Model:	Non-Linear
Signal:	Continuous
Function:	Measurement
Certification:	CE
Condition:	New
Customized:	Customized
Material:	Stainless Steel

Product Description

Design Features:
The series of gas mixture proportioning cabinet is specially designed for medium and small flow high precision two-element or multi-element gas proportioning. Input and output pressure of the product is adjustable and settable by itself. Thus, it can realize automatic control. It is equipped with an infrared analyzer. Consequently, the digital display of the proportioning content is more visualized and proportioning precision is higher.

Technical parameters:
8200M series
Output Flow: 50-300m3/h
Inlet Pressure: 0.6-1.0MPa
Outlet Pressure: 0.3-0.6MPa
Applicable Gas: (Ar+CO2/ Ar+O2/ Ar+CO2+O2/ Ar+H2/Ar+He/N2+CO2 and other two-element gases or multi-element gases)
Proportioning Range: It is arbitrary adjustable according to customers' manufacturing technological requirements.
Proportioning Precision: ±0.2-1.0 % (designed according to specific constituents of gas and technological requirements)
Connection Type: Stainless steel flange plate
Boundary Dimension: 1550×600×1400mm

Contact Name: David
Jinan Huaxin Automation Engineering Co., Ltd
Tel: +86-531-84887877
Fax: +86-531-85061266
Cell: +86 188 6688 4317
Web: www.gasmixer.net

With "local ambition, global vision" as the core strategy, Jinan Huaxin Automation Engineering Co., Ltd with rigorous attitude. Adhere to the concept of continuous innovation, specializing in welding, cutting, polishing, polishing dust and dust treatment, for the industrial field workshop environmental management to provide products and overall solutions and Special welding Equipment. A high-tech enterprise of R & D, manufacturing, sales and service.

The company has the core technology and products about welding fume control and industrial waste gas treatment. And products widely used in the field of industry. A variety of products, strong technical support, help many customers get rid of the industrial waste gas on the workshop work environment.

So far, Company has co-operated with many well-known enterprises in China with high reputation, while the products have been exported to Southeast Asia, EU, Middle East more than 30 countries and regions. The company has been deeply study of customer site, understand the changing customer demand conditions, seriously listen to customer feedback for different customers, design and manufacturing of high efficient dust absorption, lasting filtration, purification system and low security products.
