| Prod Model: |
SPS150/ 350/800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cpacity: |
350kg |
| Max. Lift Height: |
1300mm |
| Min. Height: |
350mm |
| Lifting Height: |
950mm |
| Table Size: |
910*500*350mm |
| Foot Pedal Cycles To Max.Height: |
<60 |
| Weight: |
105kg |
| Warranty: |
1 Year Guarantee |
| Color: |
Optional |
| Carton Size: |
985510*350mm |
| Application: |
Warehouse Crane |
| Carrying Capacity: |
Light Level |
| Running Mode: |
Moving |
| Driven Type: |
Foot Pedal |
| Feature: |
Convenient |
Product Description
Different load capacity and lifting height for your choice, and it's customizable.

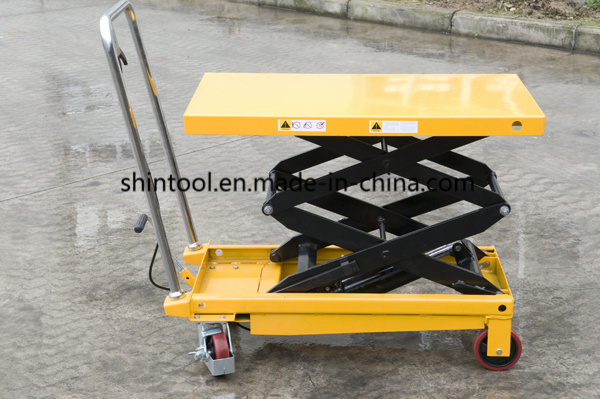

Hinge lift table
Advantages
1. This series of products are mainly used in the production line in industrial and mining enterprise industry. They can also be used as lifts to convey goods in other industries. The products can be made according to the parameters by customers.
2. You can control the lift up and down both on the platform and the ground, just need press stop button, it can stop at any point if you want.
3. Types of control mode: Manual, electrical, we can also install the remote control device according to your requirement.
4. We also supply spare parts free and supply technical supporting all the time. (Spare parts: Control button, travel switch, Oil cylinder seals ect. )
Warranty details
SHINTOOL provide the warranty period to Motorcycle hydraulic scissor lift, for a period of 1 year after the date of Bill of Lading.
During the warranty period SHINTOOL guarantee to supply free replacement parts to any defective of SHINTOOL product which proved to be
Defective in material or workmanship when under proper operation during warranty period.
After the period of warranty, the customer can send the required parts no. S which shows on the parts book, SHINTOOL will send quotation for
The new replacement parts. Any technical questions can send to SHINTOOL and SHINTOOL will reply in 24 hours.
Our Services
At Shintool machinery, we supply ONE-STOP-SHOP solution service for warehouse equipments and Chinese brand forklift parts.
Depends on 7 years experience and profession on the Chinese export business, any customer who have the business with us and also any other Chinese suppliers, we can be the position of supplying ONE-STOP-SHOP export service.
Our nearest export port is Shanghai, and Ningbo. We can be the main exporter who is in charger of connecting other suppliers, organizing the shipment, LCL load, one B/L supply and other export issue service.
|
Model |
|
SPS150 |
SPS350 |
SPS800 |
|
Rated capacity |
kg |
150 |
350 |
800 |
|
Max. lift height |
mm |
1100 |
1300 |
1500 |
|
Min. height of table |
mm |
302 |
350 |
475 |
|
Lifting height |
mm |
798 |
950 |
1025 |
|
Table size |
mm |
700×450×35 |
910×500×52 |
1220×610×60 |
|
Foot pedal cycles to max.height |
|
≤30 |
≤60 |
≤70 |
|
Service weight |
kg |
64 |
105 |
172 |
|
Carton size |
mm |
860×485×300 |
985×510×350 |
1370×645×470 |
