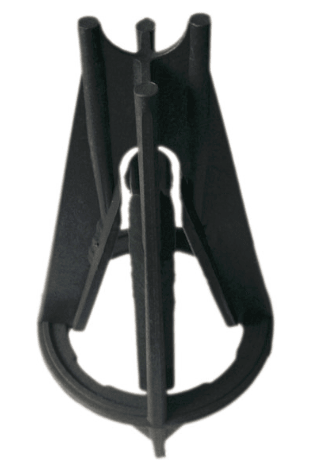

Hight Strength Plastic Bar Chair (SP0303B)

Hight Strength Plastic Bar Chair (SP0303B)
Price: US $ 20/Bag
Trade Terms: FOB,CIF
Min Order: 10/Bag
Pay Type: L/C,T/T
Prod Model: SP0303B
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Handle Material: PE
Color: White/Black/Other

Product Description

Plastic space block for protective layer of reinforcing steel bar is designed according to the requirement of national steel concrete construal design norm. It is widely applied in the civil and industrial construction of buildings, roads, bridges, tunnels, airports, subway and so on. And the clip style spacer usually used in the bevel of the construction. Clip plastic special use at the inclined plane.

Product Character: Having the advantages of high bearing capacity, self locking, crash-proof, good coherence, and easy operation. It is free from the potential quality problems of instable thickness of the protective layer resulting form the use of traditional materials of coprolites and sands.

Code: SP0151B-SP01801B, protection layer: 15mm-80mm
Executive Standards: GBT10-89 Q/SJLX01-2000
Compression Strength: ≥ 4.2Mpa
Tensile Strength: ≥ 4 Mpa




CodeProtection
Layer
Fit steelPieces/bagLoading Qty/
40R′container
Loading Qty/
40HQ

SP0151B
15mm8-14mm50001080bags1220bags

SP0152B
15mm8-20mm50001080bags1220bags

SP0153B
15mm8-14mm50001080bags1220bags

SP0154B
15mm8-12mm50001080bags1220bags
SP0201B20mm8-22mm3000810bags915bags

SP0202B
10mm/20mm8-20mm50001080bags1220bags
SP0203B20mm/25mm8-22mm4000810bags915bags
SP0204B20mm/25mm8-25mm1500810bags915bags
SP0251B25mm8-25mm2500810bags915bags

SP0252B
25mm8-16mm2500810bags915bags
SP0254B25mm8-25mm2000810bags915bags

SP0301B
30mm/32mm8-16mm4000810bags915bags
SP0302B30mm8-25mm2000810bags915bags

SP0303B
30mm/25mm8-25mm20001080bags1220bags
SP0304B25mm/30mm8-30mm1500810bags915bags
SP0352B35mm8-30mm1500810bags915bags

SP0401B
40mm8-16mm3000810bags915bags

SP0403B
25mm/40mm8-22mm600530bags600bags
SP0404B30mm/40mm8-30mm1000810bags915bags

SP0452B
40mm/45mm8-30mm10001080bags1220bags
SP0454B35mm/45mm8-30mm1000810bags915bags

SP0501B
50mm8-22mm1000810bags915bags
SP0502B50mm/60mm12mm1000810bags915bags
SP0504B40mm/50mm8-30mm800810bags915bags

SP0551B
55mm8-16mm1000810bags915bags
SP0552B55mm/65mm12mm1000810bags915bags

SP0601B
60mm8-20mm800810bags915bags

SP0602B
60/70mm8-18mm800530bags600bags

SP0603B
60/70mm8-18mm600530bags600bags

SP0651B
65mm8-16mm800810bags915bags

SP0652B
50mm/65mm8-18mm800530bags600bags

SP0653B
50mm/65mm8-18mm600530bags600bags

SP0701B
70mm8-16mm600530bags600bags

SP0702B
70mm/80mm8-16mm600530bags600bags

SP0704B
60mm/70mm12mm1000810bags915bags

SP0751B
75mm8-16mm800810bags915bags

SP0752B
75mm/90mm8-16mm600530bags600bags

SP0753B
75mm/90mm8-18mm500530bags600bags

SP0754B
65mm/75mm8-30mm500530bags600bags
SP0801B80mm8-16mm600810bags915bags

SP0901B
90mm/100mm()8-18mm500530bags600bags

SP1002B
90/100mm8-18mm350530bags600bags

SP1003B
85/100mm8-18mm400530bags600bags

SP1053B
105/110mm8-18mm350810bags915bags

SP1101B
110/120mm8-18mm300530bags600bags

SP1103B
110/120mm8-18mm200530bags600bags

SP1202B
110/120mm8-18mm350530bags600bags

SP1203B
115/120mm8-18mm350530bags600bags

SP1301B
130mm10-30mm300530bags600bags

SP1303B
125/130mm8-18mm350530bags600bags

SP1402B
130/140mm8-18mm300530bags600bags

SP1403B
135/140mm8-18mm300530bags600bags

SP1503B
145/150mm8-18mm300530bags600bags

SP1561B
156mm8-20mm250530bags600bags

SP1602B
150/160mm8-18mm300810bags915bags

SP1802B
170/180mm8-18mm300530bags600bags

SP1811B
181mm8-20mm250530bags600bags

SP2002B
190/200mm8-18mm300530bags600bags

SP2061B
206mm8-20mm250530bags600bags
