Highmast Lighting Pole High Mast Galvanized Steel Column
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LD 30M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Height: |
14m,16m,18m,20m,32m |
| Power Supply: |
AC |
| Application: |
Roadway, Sidewalk,Footpath |
| IP Rating: |
IP65 |
| Certification: |
GS |
| Light Source: |
Sodium Lamp/Metal Halide Lamp |
| Color Temperature(',CCT): |
3000k/4000k/5000k |
| Lamp Body Material: |
Galvanized Steel Q345 S355 A36 |
| Lamp Power: |
250W 400W 600W 1000W |
| Average Life: |
10 Years Guarantee |
| Voltage: |
110V 220-240V |
Product Description
LEALITE offers a wide range of steel pole products: area, roadway, high-mast and decorative lighting poles; utility distribution and traffic-signal poles; custom-designed poles.

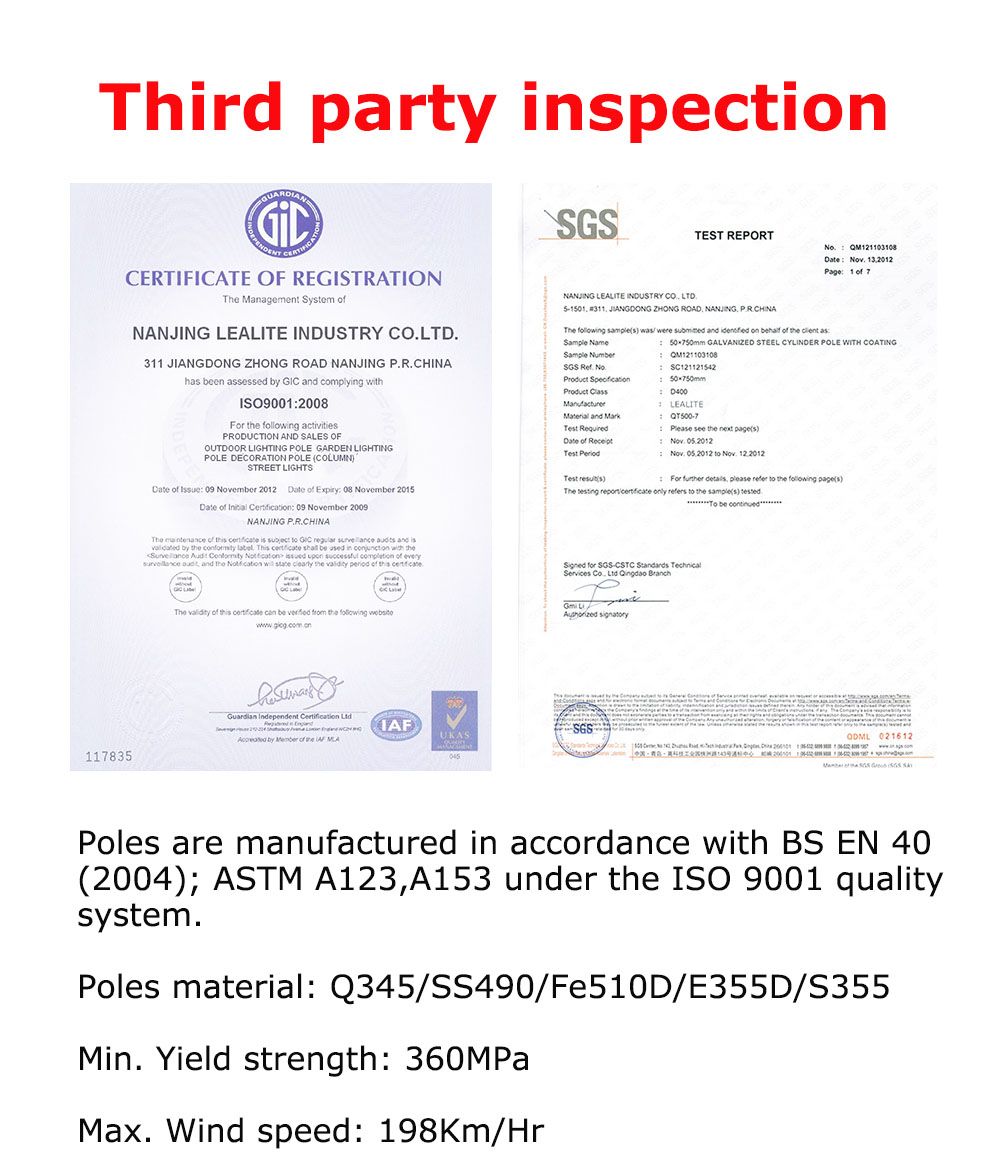

High mast pole is manufactured of Q235/Q345/A36 grade steel in accordance with BSEN40/ASTM A123 standard under ISO9001 quality system. High mast poles are with spigot mounting and floodlight mounting.
Lealite standard pole, supporting a luminaire with a wind surface of 0.20m²,will not have a pole top deflection of more than 5% of its height above ground when subjected to a basic wind pressure of 500 Pa. A safety factor of 2.5 times the total maximum wind-load is applicable.
To meet demands, complete with terminal block and DIN rail for a miniature circuitbreaker, will be provided and mounted to a bolt provided in opening door.
Poles for direct embedment in the ground will be provided with a 300x300x1.6mm hot dipped galvanised baseplate complete with 2 x hot dipped galvanised steel hookbolts and nuts. Base mounted poles will have a hot dipped galvanised flange plate that can be bolted to a foundation which shall be designed to withstand the forces the pole will experience in service.
Our experience in the steel manufacturing process and our customer-driven marketing philosophy has enabled us to grow in the steel pole industry with sales throughout North and South America,Europe and Africa. We strive to exceed our customers' expectations no matter the quantity, size, design or volume of their order. Our goal is to produce the highest-quality products in a timely manner and at a competitive price.
| Type and accessories, spare parts | Description | Drawing No. |
SPIGOT
MOUNTING | Mounted into straight pole,
hot dipped galvanized | Single side entry spigot | LD-01SA series |
| double side entry spigot | LD-01DA series |
| triple side entry spigot | LD-01TA series |
| Quadruple side entry spigot | LD-01QA series |
| FLOODLIGHT MOUNTING | Hot dipped galvanized | Floodlight mounting for single floodlight-
Type of floodlight to be specified | LD-FLSA series |
Floodlight mounting for double floodlights-
Type of floodlight to be specified | LD-FLDA series |
| HIGHMAST MOUNTING | Hot dipped galvanized | Mounting height from 16 meters to 30 meters | LD-HM series |
| DECORATIVE LANTERN | Hot dipped galvanized, painted
in the colour to be specified | 2 arm version |
|
| 3 arm version |
| 4 arm version |
| 5 arm version |
| FLAG POLE | Completer with rope and
rope attachment |
|
|
| BASE PLATE | For rooted mounting pole | Base plate assembly 300*300*3mm
Base plate assembly 400*400*5mm | Anchor bolt kit |
MINIATURE
CIRCUIT BREAKER |
| 5A/10A |
|
LEALITE address lighting needs in a full range of environments-indoors (shops offices hotels factories) as well as outdoors (public places residential areas and sports areas). We also meet people needs on the road by providing safe lighting in traffic (street lighting)
LEALITE lamps offer more light per watt, longer life and feature a compact point source similar to incandescent, allowing good optical control. Main light bulbs include high pressure sodium lamp, metal halide lamp, mercury lamp. All lamps have CE certificated standard accessories: Ballast/ starter /fixed capacitor.
LEALITE steel poles are manufactured of Q235/Q345/A36 grade steel maintain a minimum wall thickness of 120 inch; And are circumferentially welded to the base. Aanchor bolts per ASTM A576nuts washers and threaded portion of bolts are hot DIP galvanized. Poles are finished in a premium polyester powder coat for superior weather-ability characteristics.
LEALITE roadway lights is ideal for roadways parking areas/ residential neighborhoods and bridge. Structures suitable for 2G vibration conditions. We deliver a range of innovative and reliable indoor and outdoor lighting and controls solutions specially designed to maximize performance energy efficiency and cost savings. The lighting business serves customers in the commercial industrial retail institutional residential utility and other markets.
LEALITE will support you fruitful products and satisfied service. Free samples can be sent for your evaluation
