| Prod Model: |
WPL Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working: |
High Speed Mixer |
| Application Area: |
Chemical |
| Mixing Drum Shape: |
Circular Groove |
| Material: |
Ss304,Ss316L |
| Speed: |
2800rpm |
| Operating Type: |
Continuous Operating |
| Power: |
1.5-132kw |
| Capacity: |
0.130m3/H |
| Connection: |
Clamp, Thread, Welded, Flange |
| Type: |
Flour Mill |
| Application: |
Rice flour |
| Voltage: |
380V |
| Appearance: |
Horizontal |
| Press Materials: |
Peanut |
| Press Series: |
Fourth |
| Condition: |
New |
| Customized: |
Customized |
Product Description

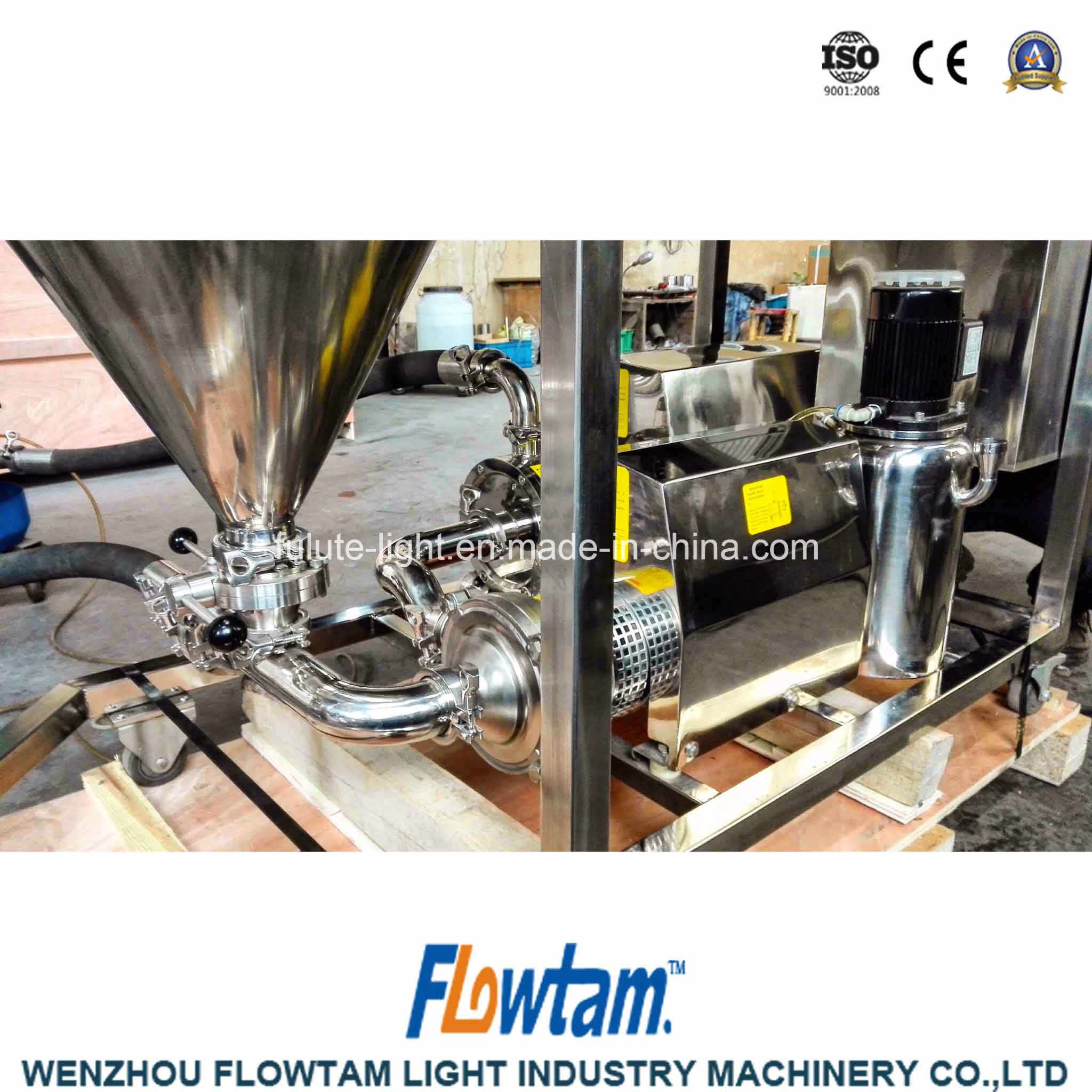

Liquid Powder Mixer
SS304, SS316(L)
CE, ISO9001: 2008
Reliable quality, beatiful surface
Operation Principle of Powder liquid mixer:
Powder liquid mixer is composed of machine body and centrifugal pump water wheel, which are vertically installed. Through a double-layer wall pipe, the liquid materials and solid materials are separately pumped in, which can prevent them from agglomeraling before entering into the main body. When the liquid enters into the main machine body of mixer at high speed, vacuum will produce in the center of water wheel to suck the solid materials. The solid materials will be evenly sucked in through the regulation of valve under the doukou tank. It has brief design and multiple functions. It can rapidly and evenly mix multiple solid materials without contacting the air. The mixing is enough and the product can be recycled. With advanced design, fine manufacturing, high production efficiency and durable use, it obtained stale patent.
Teachnical Parameters
| Model | Inline high shear mixer(kw) | self priming pump(kw) | Flow (m3/h) |
| WPL-140 | 4.0 | 1.5 | 0.1-3 |
| WPL-160 | 5.5 | 4.0 | 0.3-6 |
| WPL-180 | 7.5 | 5.5 | 1-10 |
| WPL-200 | 11 | 7.5 | 1-15 |
Food Industry: Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc.
Daily Chemicals: Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmestics etc.
Pharmacy: Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc.
Chemical Industry: Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc.
Other Industry: Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc.
After Service
·Warranty Period: one year (Attention: Machine's warranty range don't include damageable Spare Parts;For other parts,providing new free parts for clients in warranty period)
·Supporting for technique
·Free train using machine and free repair
Feel Free To Contact Us For More Details And Welcome To Visit Our Factory!
Wenzhou Flowtam Light Industry Machinery Co., Ltd. Established in 1995, Located in BinHai Industrial Zone. With 17 year manufacturing experience. We have a product range incluing Stainless steel tank, Stainless steel pumps, Stainless steel valves and pipe fitting.
Our products are mainly applied in the fields like dairy, food, beer, medicine, biology, chemical, beverage, food and cosmetics industries etc.
In 2012, Our mixing pump have been approved by CE certificate. Form our frist export transaction in 2006, We have sold our products in many foreign countries, such as USA, Newzealand, Australia, Indonesia etc.
