| Prod Model: |
11239BBC86 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| ElectricalT110~240 V/50~60 Hz (Optional): |
Tested OpeningT200 Mm |
| Working OpeningT400 Mm: |
Inflow VelocityT0.53 M/S |
| Down Flow VelocityT0.33 M/S: |
FilterTtwo HEPA Filter 99.999% Efficient(0.3 Mi |
| NoiseT≤ 62 Db: |
UV LampT30 W*1 |
| Fluorescent LampT40 W*2: |
Lighting (Lux)T680 Lux |
| Power(W)T1200 W: |
Water and Gas TapTwater Tap: 1 Gas Tap: 1 |
| Waterproof SocketT2: |
Control SystemTmicroprocessor |
| DisplayTlcd Display: |
Airflow System:T70% Air Recirculation, 30% Air Exh |
| MaterialTwork Zone Interior Is Made Of 3: |
Caster WheelTuniversal Wheel |
| Standard ConfigurationTbody, Remote Cont: |
Gross WeightT400 Kg |
| Feature: |
Disposable |
| Application: |
Household |
| Material: |
Metal |
| Certification: |
ISO13485 |
| Disinfection: |
Disinfection |
| Power Type: |
Electric |
| Group: |
Adult |

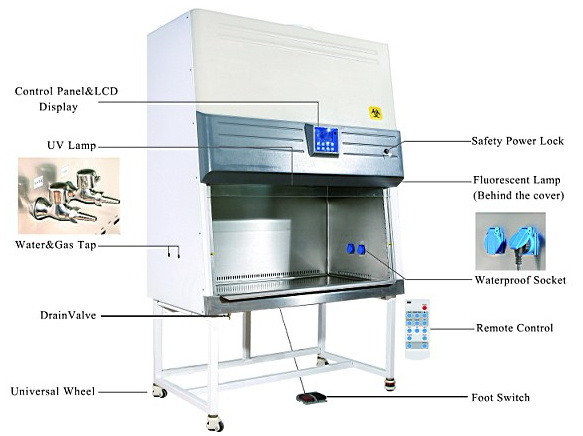

Product Description
The 11239BBC86 is produced according to EN12469 standard,much perfect and popular by end users.
Main Advantages:
1,Large LCD display,every function can be showed in the screen.
2,Remote Control.Everything function can be realized through this remote control.6 meters is available.
3,Motorized front window.One finger can adjust the height of the front window.
4,Time reserve function.30minutes can be saved after you active the cabinet and the sterilization waiting time after experiment finishing.
5,Negative pressure plenum surrounds contaminated positive pressure plenum.
6,Air pressure,air velocity and temperature can be digital displayed in the screen.
7,Voice prompt function
According to the performance criteria:
1 US Standard ANSI/NSF49:2002
2 European Standard EN12469:2000
3 Chinese Standard YY0569-2005
Technical Parameters
| Model | 11239BBC86 |
| External size(mm) | 1380× 750× 2290 mm |
| Internal size(mm) | 1220× 600× 660 mm |
| Tested Opening | 200 mm |
| Working Opening | 400 mm |
| Inflow Velocity | 0.53 m/s |
| Down Flow Velocity | 0.33 m/s |
| Filter | Two HEPA filter 99.999% efficient(0.3 microns) |
| Front Window | Two-layer toughened glass > 5 mm |
| Noise | ≤ 62 dB |
| UV lamp | 30 W*1 |
| Fluorescent Lamp | 40 W*2 |
| Lighting (Lux) | 680 lux |
| Power(W) | 1200 W |
| Water and Gas Tap | Water Tap: 1 Gas Tap: 1 |
| Waterproof Socket | 2 |
| Display | LCD Display |
| Control System | Microprocessor |
| Airflow System: | 70% air recirculation, 30% air exhaust |
| Material | Work zone interior is made of 304 stainless steel
Body:coated cold rolled steel |
| Base (optional) | 635 mm |
| caster Wheel | Universal Wheel |
| Clean Level | 100 |
| Electrical | 110~240 V/50~60 Hz (optional) |
| Net weight | 300 kg |
| Gross weight | 400 kg |
| Standard Configuration | Body, Remote control, Foot switch, UV lamp and Fluorescent Lamp |
