High Spindle Speed Slant Bed CNC Lathe (Ck-40L)
| Price: |
US $ 20000-30000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
CK-40L |
| Max.Swing Over Bed: |
400mm |
| Max.Swing Over Slide: |
220mm |
| Max. Processing Length: |
450mm |
| X Axis Travel: |
210mm |
| Z Axis Travel: |
450mm |
| Chunk: |
200(8'') |
| Spindle Motor Power: |
3.7/5.5kw (Servo) |
| N.W: |
2700kg |
| Controller: |
Siemens(Standard), Fanuc, Knd, GSK (Optional) |
| Tailstock Sleeve Taper: |
Mt4 |
| Process Usage: |
Metal-Forming CNC Machine Tools |
| Movement Method: |
Linear Control |
| Control Method: |
Closed-Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |
Product Description

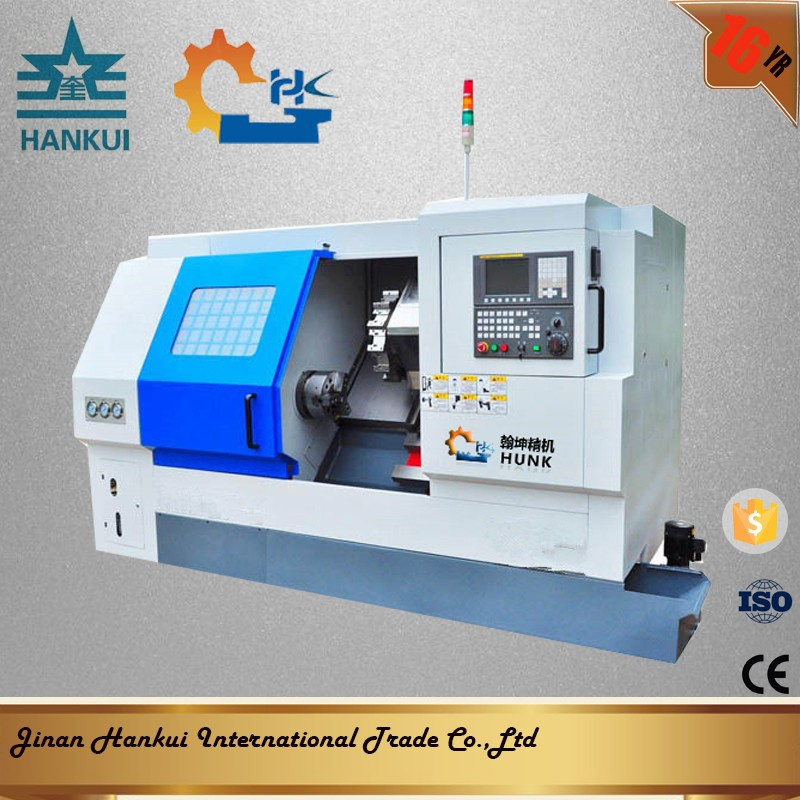

High spindle speed slant bed CNC lathe(Ck-40L)
Technical Parameter| item | | CK-32L | CK-36L | CK-40L | CK-50L | CK-63L | CK-80L |
Processing
range | Max.swing over bed(mm) | 320 | 360 | 400 | 500 | 660 | 800 |
| Max.swing over slide(mm) | 160 | 160 | 220 | 320 | 500 | 640 |
| Max. processing length(mm) | 350 | 350 | 450 | 550 | 890 | 890 |
| Max. cutting dia.(disc type)(mm) | 200 | 254 | 360 | 420 | 630 | 800 |
| Max.bar dia.(mm) | 40 | 45 | 51 | 51 | 75 | 90 |
| spindle | Spindle speed(rpm) | 4000 | 4000 | 3500 | 2500 | 2200 | 1500 |
| Spindle nose ISO form | A2-5 | A2-5 | A2-5 | A2-6/8 | A2-8 | A2-11 |
| Thru-hole dia.(mm) | 41 | 56 | 56 | 66/82 | 86 | 112 |
| Chunk dia. | 160(6") | 200(6") | 200(8") | 250(10") | 320(12") | 380(15") |
| Motor power(kw) | 3.7(servo) | 3.7/5.5(servo) | 5.5/7.5/11(servo) | 11/15(servo) | 18~22(servo) |
| Body structure | Body structure | 30°integrated | 30°integrated | 45°integrated | 45°integrated | 30°integrated | 30°integrated |
| X-axis travel(mm) | 200 | 200 | 210 | 260 | 410 | 410 |
| Z-axis travel | 350 | 350 | 450 | 550 | 860 | 860 |
| X/Z axis rapid speed(mm) | 24/24 | 24/24 | 24/24 | 24/24 | 18/18 | 18/18 |
| Tool holder | type | | 63-8T | 80-8T | 100-8T | 160-8T | 160-8T |
| Tool size (mm) | 20*20 | 20*20 | 20*20 | 25*25 | 25*25 | 25*25 |
| tailstock | Tailstock sleeve dia. | 52 | 52 | 52 | 75 | 150 | 150 |
| Tailstock sleeve travel(mm) | 60 | 60 | 60 | 100 | 150 | 150 |
| Tailstock sleeve taper | MT4 | MT4 | MT4 | MT5 | MT5 | MT5 |
| precision | Processing precision | IT6 |
| Repositioning precision | X:0.006, Z:0.008 | X:0.006, Z:0.01 |
| roughness | Ra.≤0.8 | Ra.≤1.25 |
| dimension | N.W (kg) | 1500 | 1700 | 2700 | 3500 | 5500 | 5600 |
| Dimension(m) | 1.6*1.4*1.6 | 1.8*1.6*1.6 | 2.8*1.6*1.6 | 3.1*1.8*1.8 | 3.8*2.2*2.2 | 3.8*2.2*2.2 |
CK series horizontal CNC slant bed lathe is a mature medium-sized product of high performance and competitive advantage. It can carry out automatic precision machining with high efficiency and works especially well in small and medium-sized or even large-scale production programs of air-conditioning refrigeration, home appliances, IT sectors, and mechanical processing industries of certain instrument and apparatus.Main Features
1.45°slant bed,chip removal smooth,rigid good
2.3-chuck 8″ high-speed hollow hydraulic chuck and soft claws
3.Precision high-rigidity linear rolling guide
4.High speed spindle unit(4000rpm)
5.Standard accessories: SIEMENS CNC system,5.5 KW Servo spindle motor
6.Auto chip removal device. Application
Provide of precision cnc machines and smart cnc soulutions for the metal cutting industry.Our CompanyJinan Hankui international trade co., ltd

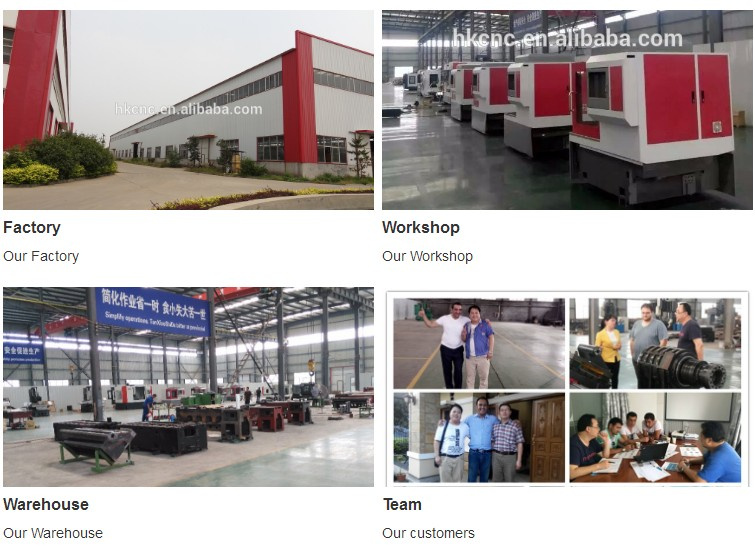

Jinan Hankui international trade co., ltd, which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.The components which we used all is high-quality and precision in the manufacture, while this is more expensive, building quality components into our machines is the only way to achieve the quality results and long service life our customers have come to expect.Certification
