| Prod Model: |
HX1540 |
| Design System: |
Auto-CAD, Caxa |
| Power Supply: |
China Huayuan or USA Hypertherm |
| Control System: |
Starfile, Start, Flmc-F2300A, Nc-Studio |
| Nesting Software: |
Fastcam |
| File Transmission: |
USB |
| Cutting Way: |
Flame Cutting and Plasma Cutting |

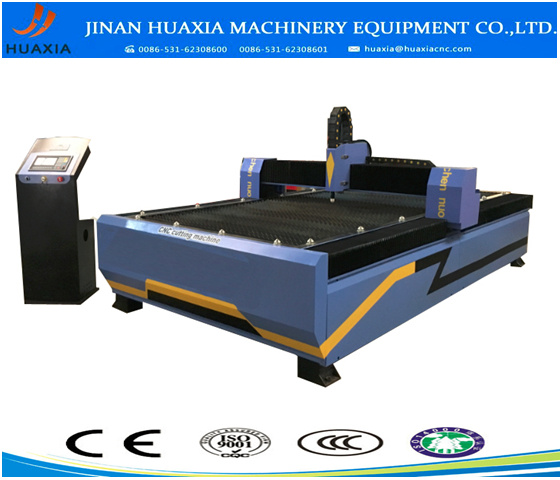

Product Description
Product introduction:
1, CNC plasma and pipe cutting machine is a precision mechanical transmission device with thermal cutting technology combined with a high efficiency, high precision, high reliability. With inimitable man-machine interface, operation is simple and easy , can cut out various shapes of complex sheet metal quickly and accurately, especially suitable for automatically, thin steel non-ferrous metals, stainless steel and carbon steel plate cutting. It adopts an integrated modular design, quick installation, convenient movement.
2, the whole bed adopts steel structure welding after finishing, whole temper, sufficient to eliminate welding stress, stable and reliable performance. The beam and the end beam used aluminum after finishing, good movement performance. Y axis with bilateral synchronous drive system. To ensure the machine speed and accuracy.
3, X and Y axis guide rail with domestic or imported linear guide rail, high precision, good guide. Drive rack, gear by the professional manufacturer of custom, The surface carburizing and quenching, high precision.
4, LCD screen, all of the use of Chinese /english characters display. Below the display show the operation method at any time, so the operator only needs simple training, the operation can be carried out, using very easy to understand.
5, the drive system can choose servo drive or stepping driving, according to the requirement of customers can choose the world's top brand from Japan -- Panasonic AC servo or stepper motor drive, can be more stable running speed, a wider range of speed transmission, short acceleration time;
6, the machine has a smoke dust removal device and exhaust type unique cutting worktable and the slag storage device, to create a good working environment.
7, With high response sensitivity torch height control,it can adjust automatically choose the best cutting distance, in order to ensure the accuracy of the work piece cutting effect .

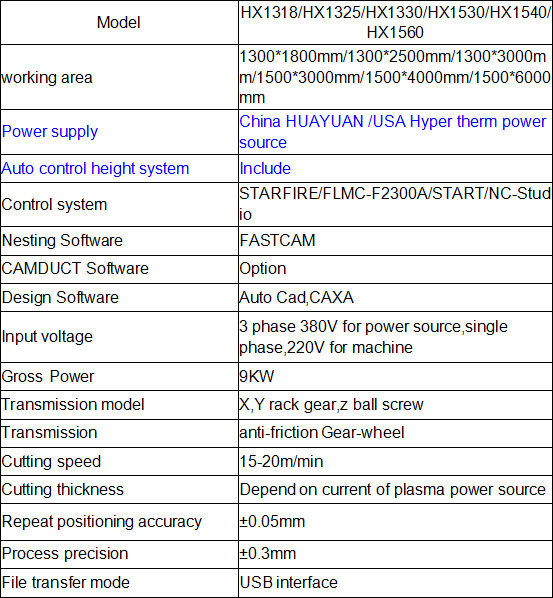

8, according to user requirements can be equipped with a variety of plasma cutting power supply, to meet the different metal materials.Parameter:

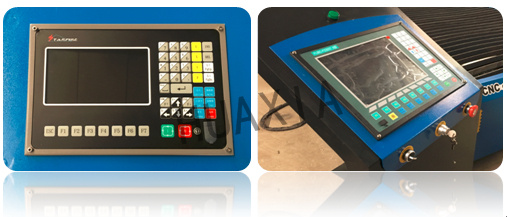

Control systerm :

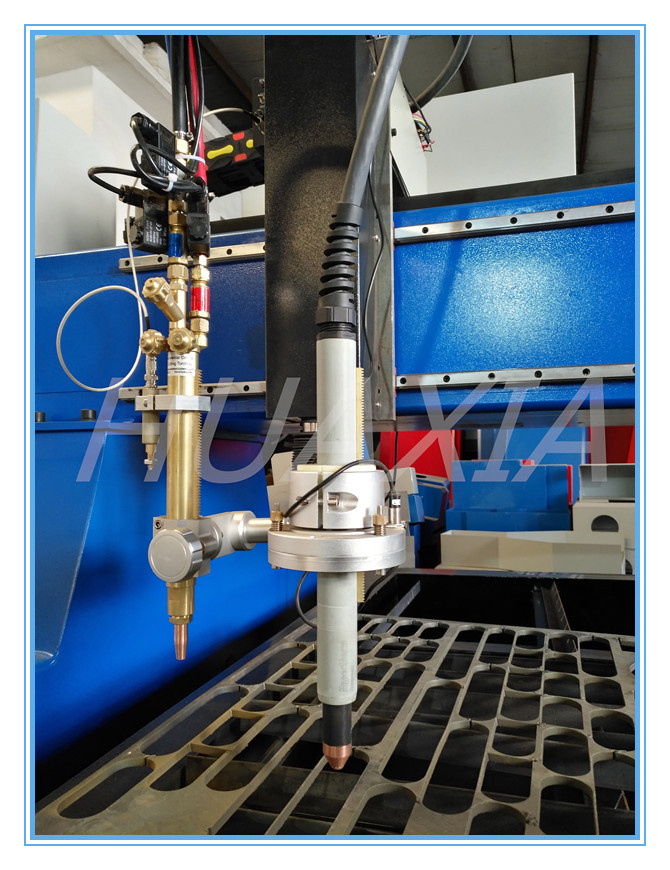

Flame and plasma torch:

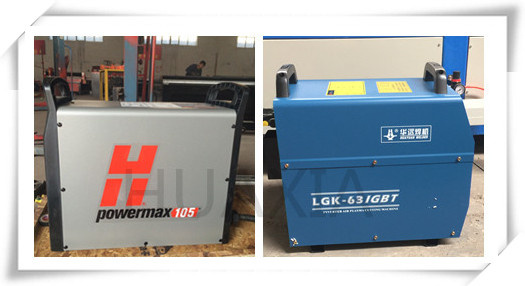

Power source:

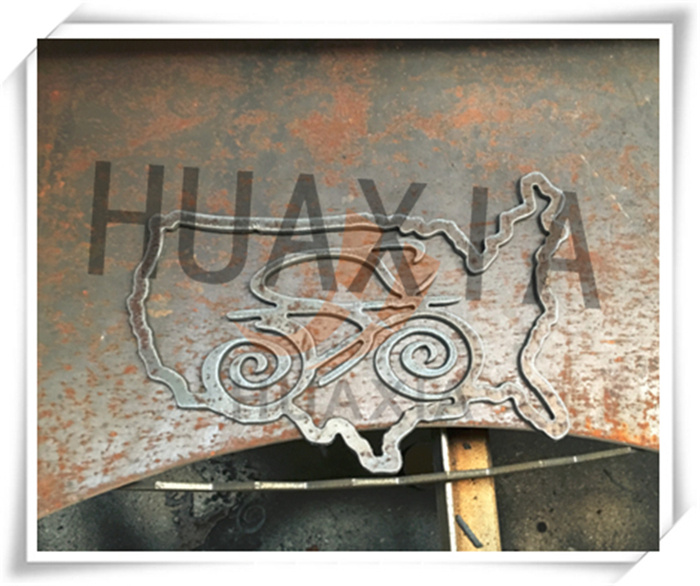

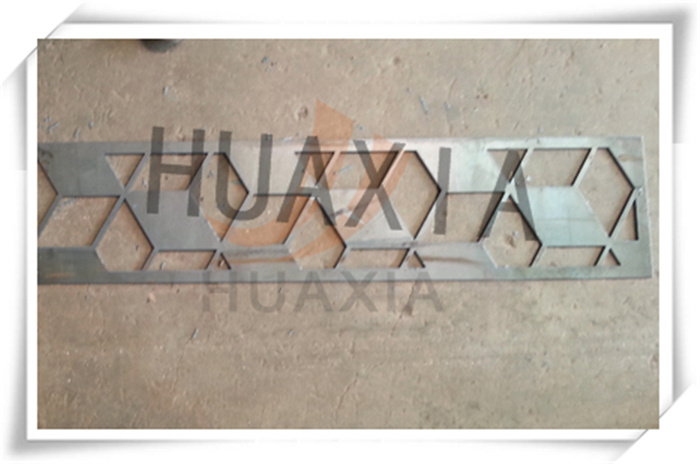

Sample:
Company information:"High Quality, Good Service" is our COMPANY CULTURE!
- Welcome to come to our factory for inspection at any time.
- Whole visual machine production process
- Professional multilingual sales team
- Free Training Team at factory,to ensure that every customer operates the machine skillfully
- Professional engineer after-sales team
- 3 years guarantee period.
Company Brand: HUAXIA
Company Type: Industry and trade integrationService:Pre-sale:
(1)regarding your demands , the best suitable machine will be recommend you . the customized machine also support
(2)regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A,FORM-B,FORM-F,original certificate signed by Embassy.etc.
(3)all the machine will be tested before delivery, and we will take the video and pictures to you.when you receive it , it can work directly.
(4)You could visit the factory at any time!
After-sales
(1)we will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2)All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can't solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.FAQ:1.How i can choose a suitable machine?
Tell us the max working area,the material and its thickness you want to cut,we can help choose the best suitable machine.
2.Are you the manufacture?
Yes, we are manufacturer, so you can get the factory price directly.don't need pay some extra agent price . And we welcome you to visit us.
3.Can we visit your factory?Yes, of course , welcome you visit our factory and check our machine qualtiy on spot. after you confirm the coming time , tell me in advance , then we will go to air port or train station to pick you up on time.
And one professional engineer will together with you in the factory , any question will be solved on spot at first time.Contact:Tel: (+86)0531-62308600
what app:+8618340056306
imo: +8618340056306Packaging Details:Packing:plywood case after packed by Wrapping filmDelivery Detail:within 15 working days after recieved the deposit
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
