| Prod Model: |
LE-NA |
| Product Name: |

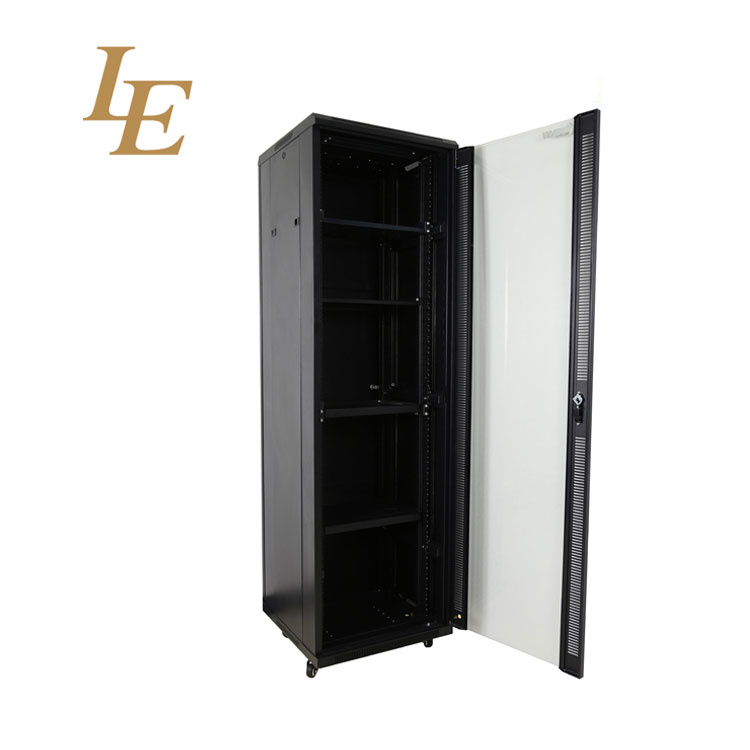

High Quality Small Computer Server Cabinet |
| Material Thickness: |
Mounting Profile:2.0mm,Others:1.2mm |
| Tempered Glass: |
Thickness:5mm |
| Loading Capacity: |
Static Loading: 800kg(on The Adjustable Feet) |
| Degree Of Protection: |
IP20 |
| Surface Finish: |
Degreasing,Pickling,Phosphating,Powder Coated |
| Height: |
18u-47u |
| Depth: |
600mm,800mm,900mm,1000mm,1200mm |
| Width: |
600mm,800mm |
| Color: |
Ral9004; Ral9005; Ral7035 |
| Type: |
Network Cabinet |
| Usage: |
Network Integration System |
| Installation: |
Vertical |
| Certification: |
SGS,TUV,BV |
| Condition: |
New |
| Fan Number: |
2 to 6 PCS Fans |
| Capacity: |
18u-47u |
Product Description
General Description:
1.Vented front and rear door with excellent ventilation rate above 70%;
2.Removable side panels with lock optional;
3.Adjustable cable entry on the top and bottom cover;
4.Welded steel frame for front and back part, flat packing is available;
5.S-shaped mounting profile, free to move forward and back;
6.Various optional accessories for common using;
| Standard | ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard |
| Material | SPCC quality cold rolled steel
Thickness:mounting Profile:2.0mm,Others:1.2mm
Tempered glass Thickness:5mm
|
| Loading Capacity | Static loading: 800kg(on the adjustable feet) |
| Degree of protection | IP20 |
| Surface finish | Degreasing,Pickling,Phosphating,Powder Coated |
| Product specification | 18U-47U |
| Width | 600mm,800mm |
| Depth | 600mm,800mm,900mm,1000mm,1200mm |
| Color | Ral9004; Ral9005; Ral7035 |
Ningbo Latitude Communication Equipment Co., Ltd was established in 2002, is a professional manufacturer specialized in server rack, network rack, outdoor cabinet, wall cabinet, all kind of power distribution Unit(PDU) and other communication products. Our factory is located at the south bank of Hangzhou Bay Bridge, nearby the Ningbo port(one of most big port in the world), which will be easy to transport our products to the whole world.
For over years, we are always devoting ourselves to research, develop, design and manufacture the products. Striving to maintained a steady growth in the extremely competitive market, we have the world's advanced equipment including TruLaser cutting CNCmachine, TruPunch Punching CNC machine, AMADA Punching and Bending CNC equipment, WAGNER spraying paining line and other equipment. We use ERP order management system, Also have the strict quality control system and Advanced production technology, in order to assure the stable and high quality of products. We got ISO9001: 2008, BV, SGS, TUV, CE, RoHS certification.
We can supply customized service and OEM, ODM products, thanks for choosing our products and believe our cooperation can bring you benefit and value.
