| Price: | US $ 133000/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union |
| Prod Model: | BST-8500A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screw Diameter: | 105mm |
| Shot Size: | 4670cm3 |
| Shot Weight: | 4200g |
| Injection Pressure: | 149MPa |
| Injection Rate: | 780g/S |
| Screw L/D Ratio: | 21L/D |
| Screw Speed: | 0-100r.p.m |
| Nozzle Diameter: | 25 Srmm |
| Clamp Tonnage: | 8500kn |
| Toggle Stroke: | 980mm |
BST-8500A Plastic Chair Injection Moulding Making Machine Price In China
FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement.
CONTROL SYSTEM
All digital control system uses dedicated controller, multiple CPU processing division,
a multi-functional automatic fault detection, alarm system, certificates 99 mold of
processing procedures, with remote control interface. System is of high stability and
responsiveness. System uses color LCD, man made interface for easy operation and
with a number of peripheral interfaces.

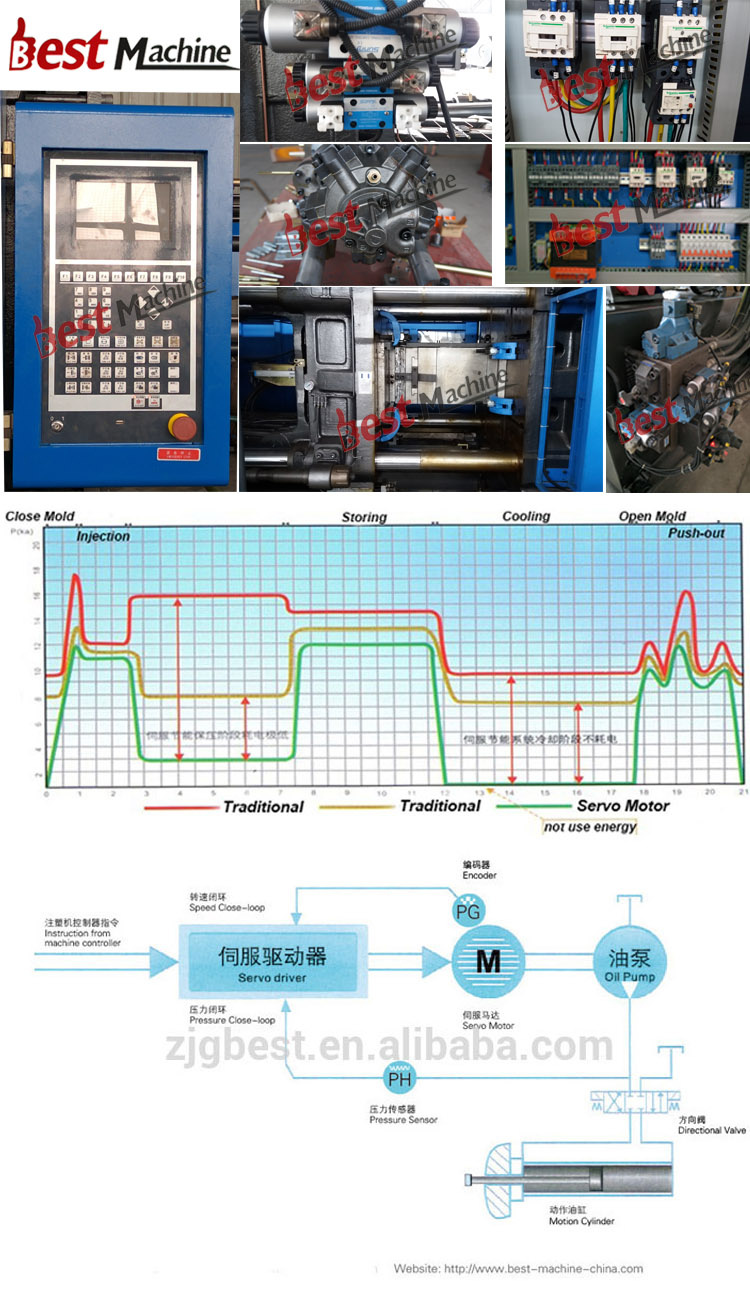

HYDRAULIC SYSTEM
Advanced hydraulic system design, through proportional control of pressure, flow achieves rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable. The noise is less than 75 dB. The medium and large machine adopts a two-way cartridge inserted valve system to improve the system of flow and speed of response, and makes the whole machine reach the best performance.
specification
BST-8500A Injection Molding Machine
- shot weight is335-378g,
- Max Opening Stroke:440MM,
- Space Between Tie-bars:480X460MM,
- Imported advanced computer systems, Chinese / English interface.
- Can save 50 sets of mold parameters.
- Advanced clamping structure and injection parts, precision hydraulic system and circuit design.
- Suitable for producing different types of precision small parts.
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement.
- Quality:12 month Quality guarantee ,Free spare parts replacement,(NOT include man-made sabotage)
- Service:We provide free advanced training and maintenance in china factory,and 24 hours on-line or phone service if you request we also can provide installation and training abroad,until customer's satisfaction
- Delivery time:35days after advance payment
BST-8500A Injection Molding Machine
| MODEL | BST-8500A | ||||||
| INJECTION UNIT | A | B | |||||
| Screw diameter | mm | 105 | 108 | ||||
| Shot size(theoretical) | Cm³ | 4670 | 4840 | ||||
| Shot weight | g | 4200 | 4350 | ||||
| Injection pressure | Mpa | 149 | 141 | ||||
| Injection rate | g/s | 780 | 830 | ||||
| Screw L/D ratio | L/D | 21 | 20.4 | ||||
| Screw speed | r.p.m | 0-100 | |||||
| Nozzle Diameter | Srmm | 25 | |||||
| CLAMPING | |||||||
| Clamp tonnage | KN | 8500 | |||||
| Toggle stroke | mm | 980 | |||||
| Mould Thickness | mm | 400-980 | |||||
| Space between tie-bars | mm | 1016X980 | |||||
| Ejector stroke | mm | 260 | |||||
| Ejector tonnage | KN | 186 | |||||
| Ejector number | Piece | 21 | |||||
| Hole Diameter | mm | 250 | |||||
| OTHERS | |||||||
| Heat power | KW | 42.5 | |||||
| Max. pump pressure | MPa | 16 | |||||
| Pump motor power | KW | 37+37 | |||||
| Valve Size | mm | cartridge valve | |||||
| Machine dimension | m | 11X2.4X2.75 | |||||
| Machine weight | t | 45 | |||||
| Oil tank capacity | L | 1300 | |||||
ZhangJiaGang BEST Machinery Co.,LTD is located in a beautiful development zone in Tangqiao, Zhangjiagang City, Jiangsu Provice, China.
Company is very professional in research, development, manufacturing of all kinds plastic machinery and moulds, with more than 2000million fixed assets, during the past 10 years, we always force our energy into new areas of plastic packaging machinery,to update the technology, to learn advanced experience, to confirm new theory and new design,we are forming a unique competitive advantage of our owns.
The machine from our company carry good quality and effective after-sales service, upon the domestic market, we hotly export machines to Russia, South Africa, Vietnam, Ethiopia, Saudi Arabia, Malaysia, Canada, Algeria, Uzbekistan and many other countries, create good sales performance and well feedback, all to strengthen our position in this field.
We have a professional and experience QC team, make sure good quality of every component of machine.
All of machines are assembly by our 10 years experienced workers.
Each injection molding machine with automatically working test at least 72 hours before shipment.
Each machine with one year free spare part.
packing&shipping
We take care of our machine packing and loading.
Injection machine with anti-rust process, make sure no rust due to ocean shipment.
Each package would be fixed stable inside container, make sure no damage or crash during whole shipment.
We should take photos of loading, and send to you for reference.
