| Prod Model: |
TR004 |
| Track Length: |
According to The Customer Request |
| Standard: |
Imo Standard and ISO Standard |
| Seat Slide Stroke: |
120mm |
| Seat Rotate Degrees: |
360 |
| Folded: |
Unfolded |
| Customized: |
Customized |
| Material: |
Leather |
Product Description

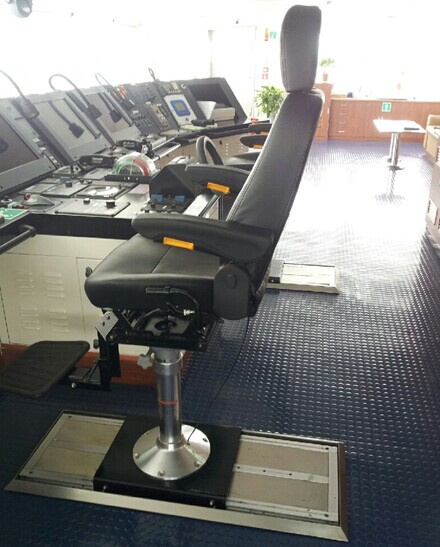

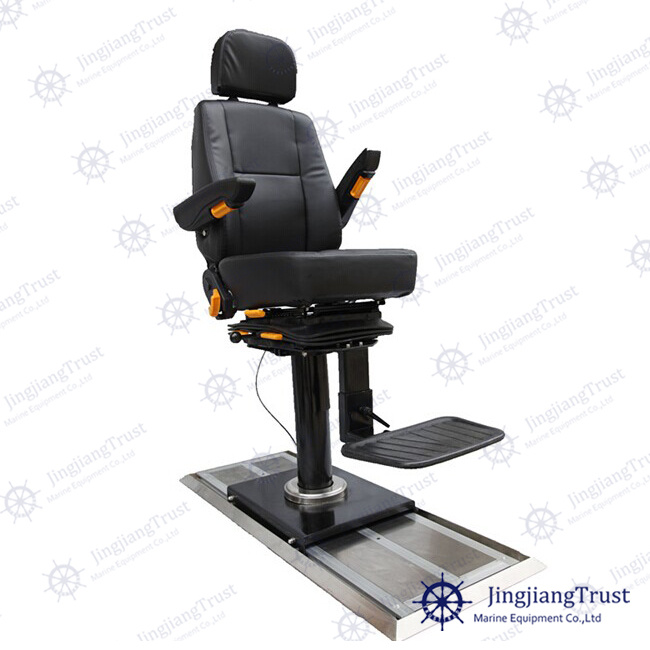

Product DescriptionNAVIGATION TRACK TYPE CHAIRS, track length customized according to the wheel house
design requirements, track through the seat side handle to control the sliding and positioning. The rail
body uses the high strength aluminum alloy material, inside and outside with decorative frame made
of stainless steel material.
Parameters 1. Upper part of the seat can be moved back and forth of120mm,height adjustment50mm, seat inclination angle range of ±12°;
2. Seat backrest with adjustable angle of 85°-150°, the headrest adjusted up and down50mm, handrest multi-point positioning control
3. The seat of pneumatic lifting regulating range 0-150mm;
4. The seat can rotate 360°and locked ,4-point positioningcontrol;
5. Seat pedal can rotate 90° and regression, upper and lower position adjusting range of 0-50mm;
6. Seat can bear more than150FT.LB torsion, reached AD grade standard
Features1.Meet the ergonomics design.
2.Adjustable backrest and headrest.
3.Seat height can be adjusted for angle.
4.Movable seat forward and back.
5.Foldable/angle adjustable comfort armrests.
6.Swivel-mechanism 360 °,Multi-point positioning.
7. Height adjustable/foldable footrest.
8.Strong lifting column/Saltwater resistent/shock absorber in column.
