| Prod Model: |
LS-13 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Finished: |
Power Coating/Galvanized |
| Material: |
Steel |
| Structure: |
Shelf |
| Mobility: |
Adjustable |
| Height: |
0-5m |
| Weight: |
500kg |
| Closed: |
Open |
| Development: |
Conventional |
| Serviceability: |
Common Use |
| Type: |
Longspan Shelving |
Product Description

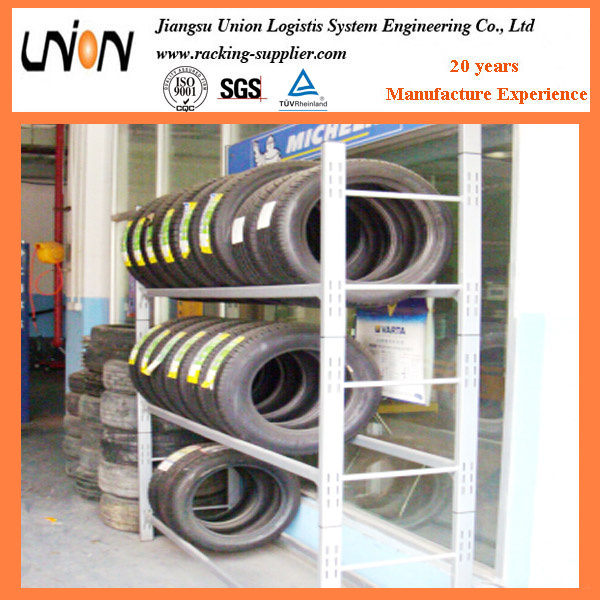

Long Span Medium Duty Shelving
Long Span Medium Duty Shelving is a strong, durable, versatile and economical shelving system, which looks good and minimize lost space from uprights making it ideal for a wide variety of applications from archives to automotive, factories, warehouses, retail, wholesale and commercial.
1. Features:A. Rigid-structure, durable, versatile and economical shelving system, most widely used for storage of different items.
B. Available in wide range of shelving height, depth & length and loading capacities to clients' storage needs.
C. Fully adjustable shelf height.
D. Very easy to install and dismantle.
E. Rapid handling and direct access of almost all types of goods.
F. Maximizes space use in any storeroom configuration while retaining optimum product accessibility.
G. Strength and rigidity prevents compression damage to goods.
2. Loading capacity & Specification:A. Loading capacity: 200-800 kgs UDL/layer, bigger capacity available to special needs.
B. Height: 1000-6000mm
C. Depth: 400-1500mm
D. Length: 1500-2700mm
E. Special sizes also available to specific storage needs.
3. Parts:A. Upright section: 55*47*1.5, 55*47*2.0, 80*60*1.5, 80*60*2.0mm, etc.
B. Step beams section: 50*30*1.5-2.0, 60*40*1.5-2.0, 80*50*1.5-2.0, 110*50*2.0-2.5mm, etc.,
C. Steel panels thickness: 0.7mm, 0.8mm, 1.0mm, 1.2mm, etc.
D. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
4. Material: High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China.
5. Finish: High-quality Powder Coating.
6. Quick DeliveryBig production capacity allow us in a position to make quick delivery.
Our medium duty Shelving can be designed according to your requirements!
Certificates of Union
We have certificates of ISO900, GMC, TUV, OHSAS18001, SGS.
Service
We can offer CAD design service for customer for free charge and give customer technical support
kindly inform us the info. for quick quotation,
1. Drawing (if available) of rack; if not, we can offer CAD design service for you
2. Warehouse dimension (Length x Width x Clear height mm?)
3. Package/goods Size (Width*Depth*Height mm?) & weight (after loading)
4. How many layers and bays
5. The color you want

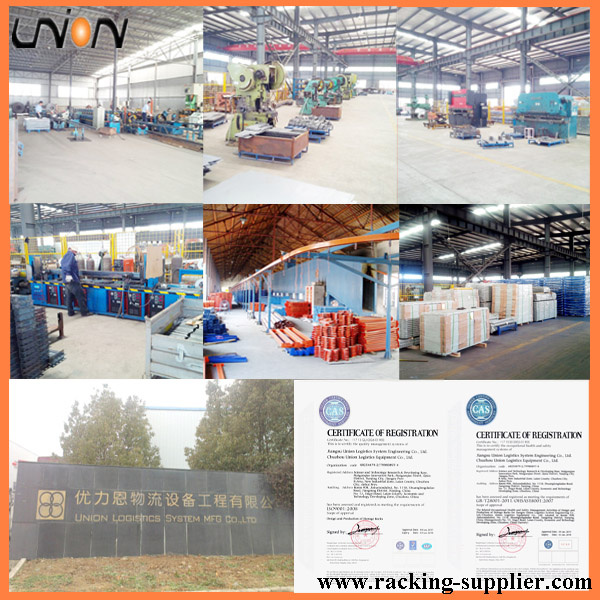

Union's Factory
Jiangsu Union Logistics System Engineering Co., Ltd
Established in 1995,
Possessing 10 years export experience;
With the strength of Pallet Racking, Mid-duty Shelving, Radio Shuttle Pallet Racking, ASRS System, Drive In Racking, Cantilever Racking, Mezzanine and Steel Platform, Steel/Plastic Pallet, Wire mesh container and other related storage equipment.
Pallet Racking, Mid-duty Shelving, Radio Shuttle Pallet Racking, ASRS System, Drive In Racking, Cantilever Racking, Mezzanine and Steel Platform, Steel/Plastic Pallet, Wire mesh container and other related storage equipment.
Pallet Racking, Mid-duty Shelving, Radio Shuttle Pallet Racking, ASRS System, Drive In Racking, Cantilever Racking, Mezzanine and Steel Platform, Steel/Plastic Pallet, Wire mesh container and other related storage equipment.
FAQ
Q: What is your trading terms?
A:
1) Payment term: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading . or L/C.
2) Lead time:normally in 30 days after deposit received.
3) Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4) Shipping port: Shanghai China.
5) Discounts: We offer discount for large quantity.
Q: How I can delivery my goods?
A:
1) Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
2) Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
Q: what is your service?
A:
1) Your inquiry related to our products or prices will be replied in 24 hours.
2) Well-trained and experienced staffs to answer all your enquires in fluent English.
3) OEM&ODM, any your customized racks we can help you to design product.
4) We have very experienced professional engineers to make best solutions.
Q: How to purchase your product?
A:
Design drawing → Confirm drawing →Quotation → PI → Confirm PI → Arrange 30% deposit →Manufacturer→QC inspect → Pay balance → Shipping
Q: what is your advantage?
A:
1) Warranty: two years warranty, the broken parts will be replaced and sent to you.
2) Factory price: Factory direct sale competitive price.
Contact
Website:www.racking-supplier.com
TEL:+86-25-52890290
FAX:+86-25-52890115
Please feel free to contact us if you are intersted in !
Jiangsu Union Logistics System Engineering Co., Ltd. Is a specialized designer and manufacturer of logistics systems, including racks, logistics systems, and multi-layer warehousing systems. Besides, Union also provides warehouse storage solutions for our clients.
Union possesses a professional sales team, experienced engineers, advanced manufacturing equipment, particular production technology and perfect quality-guarantee system. We have ability to supply large quantity of products which amounts to about 3, 000MT per month. Moreover, our products have been widely used in large companies, Our sales network covers 28 provinces and regions in China, and our overseas market includes North America, Southeast Asia and West Europe. We have several distributors in Europe and the US.

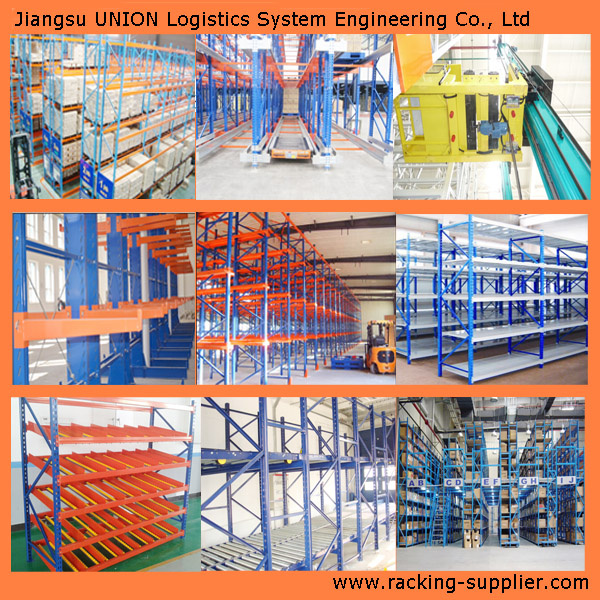

We can supply following products:
1. Light, medium and heavy pallet racking;
2. Drive-in, flow-through, cantilever, movable racking;
3. Radio Shuttle Pallet Rack, AS/RS system, Stacker Crane, mezzanine floors/multi-tier racking;
4. Kinds of pallet, for example, steel pallet, foldable mesh box pallet, and plastic pallet
As one of the best logistics system suppliers in China, Union will provide our clients with high quality products and excellent services. Our trade team will respond to your inquiries within 24 hours.
