| Prod Model: |
20 feet |
| Markets: |
Africa,Mid East |
| Fireproof Rating: |
a |
| Windproof Rating: |
25.8m/S (Level 11) |
| Anti-Seismic: |
Seismic Intensity: 8 |
| Temperature Range Of Use: |
-70 ~ 120 Degree Centigrade |
| Service Life: |
20 Years |
| Times Of Recycling: |
20 |
| Thermal Conductivity: |
0.03~0.047W/(M.K) High Efficiency |
| Material: |
Sandwich Panel |
| Usage: |
Workshop |
| Certification: |
Soncap |
Product Description
Container house advatages:1.Efficiency and convenient2,Comfortable3.Safe and durable4.Recyclable and sustainableMaterial List:

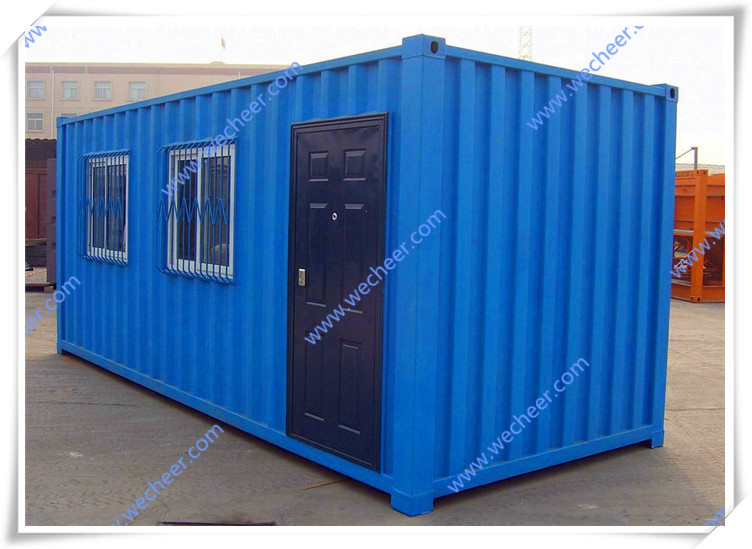

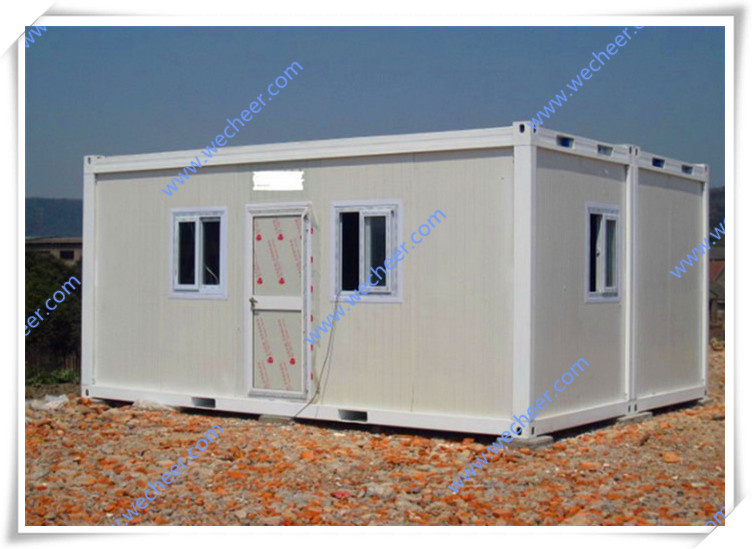

20ft Modular Prefabricated Container House Specifications
External size 6058mm(L) * 2438mm(W) * 2591mm(H)
House corner Prefabricated light steel
Roof&wall: EPS sandwich panel
Floor base Prefabricated light steel
Acessories Window PVC sliding windows+shutter windows
Door 50mm thickness EPS sandwich panel door
False ceiling PVC ceiling
Flooring Plywood
Electricity sys Prewire, lamp, socket, switch
Optional accessories Furniture for housing living, office, dormitory, toilet, kitchen, bathroom, shower, decorative materials, etc.
Chasis: Q235 anti panit steel, 4mm steel as main beam and 2.3mm steel as second beam
Roof & ceiling: Color steel sheet as roof sheet+40mm rock wool insulation+ 50mm EPS sandwich panel as ceiling. Ready for the wire and wire pipe+1 PC outside power connecting plug, 2 light(220V)
Column: Q235, anti-rust, panited
Conner: ISO container corner, iron.
Wall: 50mm/75mm/100mm/150mm EPS/Glass wool/PU/XPS color steel sandwich panel. Prewired and prepiped, 1 switch +2 socket +1 distribution box(220V)
Floor and deco: 18mm plywood, with 2.0mm vinly sheet or laminated floor
Window: UPVC or aluminum window, ready in panel
Door: SIP door, compound wooden door, security steel door etc, ready in panel
Accessories: Rivet, screwer, glue, etc
Optional facilities: Toilet, shower, washbasin, urinal, water pipe, kitchen

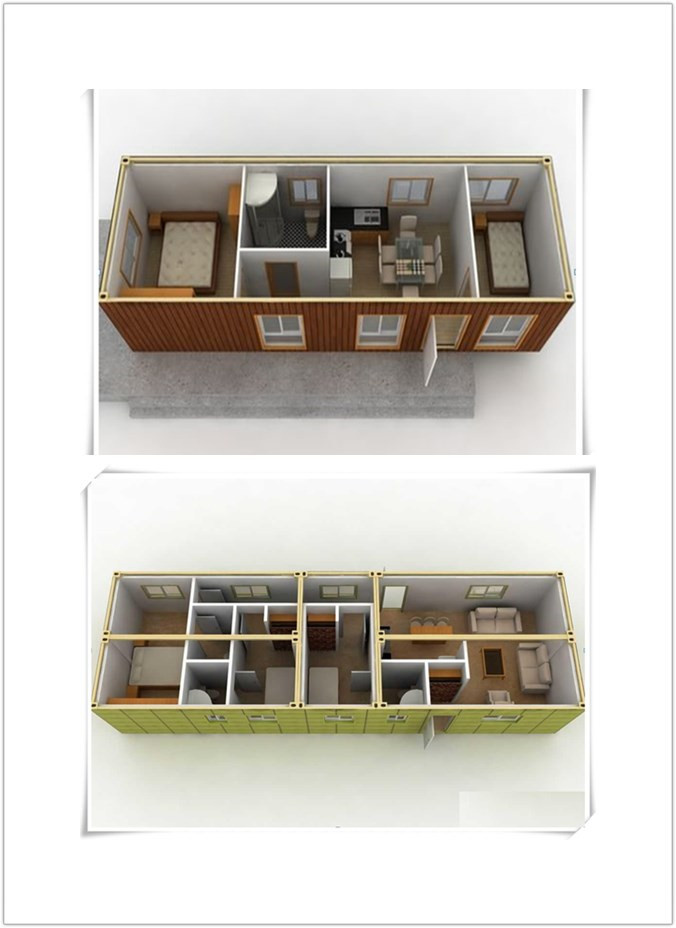

Plan: 1 bedroom with toilet, 2 bedroom unit, kitchen container, toilet container, office and more option for refer
Technical data
* Roof load: 0.5KN/sqm
* Floor load: 1.5KN/sqm
* Wind load: Against wind speed 180km/h (Chinese standard)
* Seismic fortification intensity: Magnitudes 8
* Suitable temperature scope. -50° C~+50° C
(If the criteria were exceeded, it can also load by reinforcing the structure)
* 4 experienced technicians can build 6-8 prefab houses with dimension of 20 feet house
Feature
* Long life span more than 20 years
* Modular part, 90% work finish in factory, simple tools such as spanner, bolt driver and so on needed
* Easy and fast to install, 4 experienced technicians can build 6-8 prefab houses with dimension of 20 feet house
* Be combined freely to a big space in horizontal and vertical
* Re-location wholely available
* Environment friendly, no building rubble
* Flat package, be wrapped separately
* Stable house with solid frame
* Waterproof and good insulation for heat and sound
* Low demand of ground work, suit for different ground

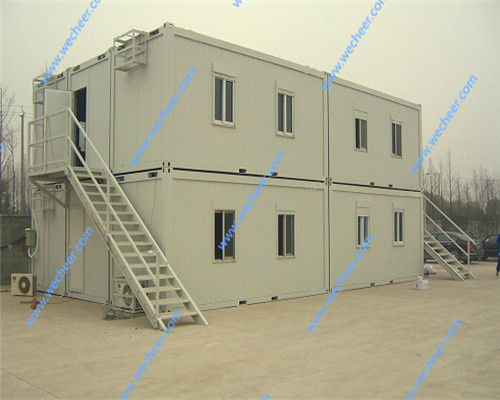

* Multi layer is available
* 10', 20', 40' size available
* Many plan for 1 bedroom with toilet, 2 bedroom unit, kitchen container, toilet container, office etc on option
Application
Modular office, labor dorm, mobile hotel, suit apartment, guard box and so on.
Wecheer House Group is specialized in designing, manufacturing, marketing and construction of the prefabricated house, steel structure. We took the lead to be certificated by ISO9001: 2008. We gain reputation for good faith and obtained the honor title of provincal-level"Contract Hornoring and Commercial Integrity trust-worthy Enterprise".
Headquartered in beautiful Sapphire County-Changle county in Shandong province, we are around 160km away from Qingdao Port and 480km from Tianjin Port. Our prominent capacity of reserch and development as well as advantages in technology, make our product branded "Weichang House", which include prefabricated houses, steel structure building and asssorted materials products.
They are widely used in temporary offices and dormitories on the construction, temporary commercial housings in the cities and leisure villas, as well as tourist resort lodging houses and military forces' Temporary accommodation, etc.
Relying on advanced manufacturing techniques, perfected quality control system, and prominent sales and after service system, our business expand nationwide with the strategy of Collectivized Management, Regionalized Business. One after another, we provided products and services for State key projects such as Jinan Olympic Sports Center, National Day Parade Village, Yantai T-shaped cross-sea bridge, etc. And also we provided large quantity of prefab houses for Sichuan China earthquake relief projects in year 2008.
We have self-owned import & export rights authorized by Ministry of Commerce and expanded our bussiness overseas to South Africa, Vietnam, Laos, Russia, Australia, Guinea, Ethiopia and other countries and regions.
We' Ve always been a manufacturer, thus we are able to control everystep of our business including raw materials, production, warehousing, delivery and most importantly, quality. By managing effective that process, people and operation, we become very competitive on a whole scale. Witnessing the tremendous prosperity of construction industry, we are more than able to meet the booming market increasing contracting and the requirements of our clients' Specifications.
We are looking forward to cooperating with you for long-term business relationship and mutual benefit.
