| Prod Model: |
P4 |
| Package Mode: |
SMD2121 |
| Max Power: |
20W |
| Module Thickness: |
13.1mm |
| Weight: |
0.231kg |
| Drive Type: |
Constant Drive |
| Port Type: |
Hub75-B |
| Brightness Of White Balance: |
1200CD / M2 |
| Best Viewing Distance: |
4-50m |
| Best Viewing Angle: |
140 Degree (W) 140 Degree (H) |
| Working Temperature: |
-20 Degree-+50 Degree |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP54 |
| Display Function: |
Market Display |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
3c, ISO9001... |
| Pixel Pitch: |
4mm |
| Pixel Configuration: |
1r1g1b |
| Average Power Consumption: |
380W/Sqm |
| Pixel Density: |
62500 Dots/Sqm |
Product Description
Media Indoor Rental Advertising LED Video Wall Screen P4 for China Video Show Full Color Hd Led Display with P4 high brightness and high resolution led module

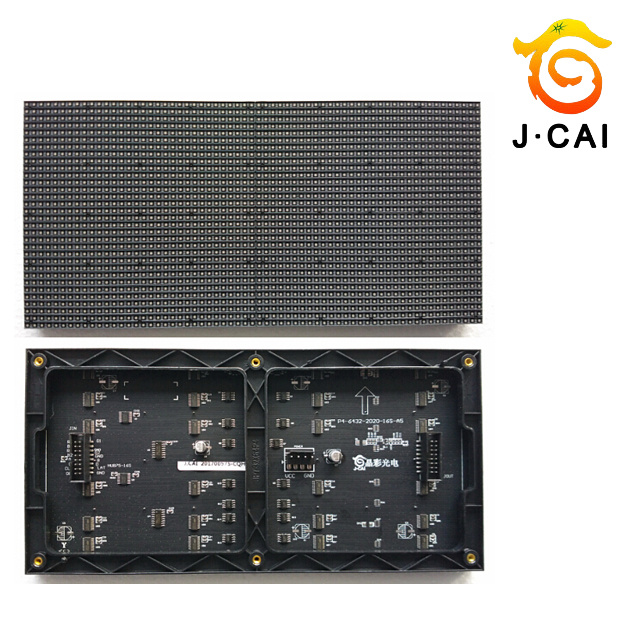

[Module Specification]
Smooth surface, well brightness mixed, vivid images, fluent video, wide viewing angle.
Easy-to-operate and completely networkable.
Modular construction can be scaled up to any size
Five-year limited factory depot parts warranty
Flexible communication options (Fiber Optic, RS232, RS485,TCP/IP, WIFI)
Meet CSA,ANSI/UL,EMC-CE and ROSH Standar
| Energy - saving P4 High Refresh Rate Indoor Led Screens Black SMD 3IN1 Epitar Chip |
| Item | Unit | Parameter |
| Pixel Pitch | mm | 4 |
| Pixel Density | dots/sqm | 62500 |
| Resolution of Module | dots | 64*32 |
| Module Size | mm | 256/128 |
| Scan mode | scan | 1/16 |
| Led Package | smd2121 |
| Pixel Configuration | 1R1G1B |
| Chip Brand of LEDs | Epistar |
| Module Weight | kgs/pc | 0.231 |
| Brightness (White Balance) | nits(cd/m2) | 1200 |
| Red Wavelength | nm | 620-625 |
| Green Wavelength | nm | 520-525 |
| Blue Wavelength | nm | 470-475 |
| Scan Mode | 1/16 scan |
| View Distance | M | 4~50 |
| Best View Distance | M | 4~30 |
| Viewing Angle-Horizontal | deg. | 140 |
| Viewing Angle-Vertical | deg. | 140 |
| Module Maximum Power | W | 20 |
| Max. Power Consumption | W/sq.m | 540 |
| Avg. Power Consumption | W/sq.m | 380 |
| Working Voltage | AC 110V/220V input, DC5V output |
| Power Supply | AC 110/220V |
| Waterproof Grade | IP54 |
| Refresh Rate | Hz/S | 960 |
| Frame Rate | Hz/S | ≥ 60 |
| Gray Scale | 4096 grades gray |
| Display Color | 256 |
| Display Function | Text,news,advertising,flash,animation |
| Input Signal | RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc. |
| Luminance Degradation | Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature 25 |
| Defective Dot Rate | | < 0.0001 |
| Life Span | hours | 100,000 |
| MTBF | hours | > 10,000 |
| Storage Temperature | | -35 -- +80 |
| Working Temperature | | -20 -- +80 |
| Working Humidity | 10%-90%RH |
| Control System | Synchronization or Asynchronization |
| Quality Certificate | ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008 |
| Warrenty | 2 Years |
| Working Environment | Outdoor |
| Other Fertures | LED&ICs in Departed PCB |
| Note: The above parameter is just for refrence.change change can be made by requirement |

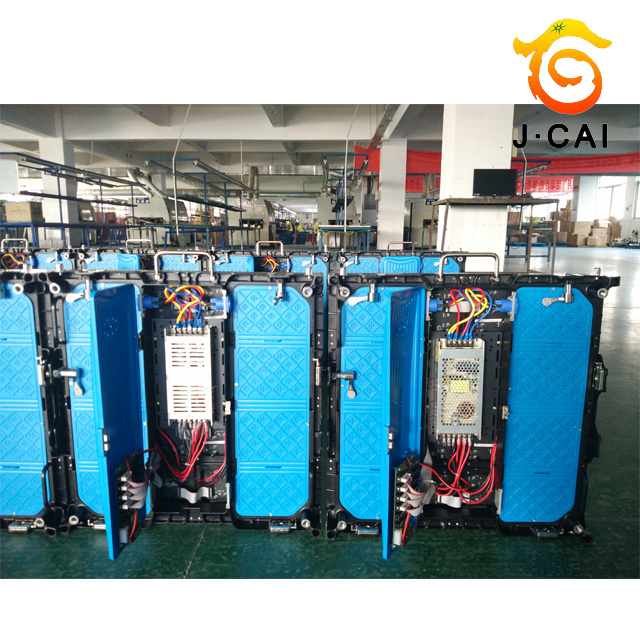

[Cabinet]
Best Quality Best Price Indoor Advertising Full Color P4 led display sign can be completed with simple iron cabinet or aluminum frame for fixed project, also can be completed with die casting aluminum cabinet or indoor rental aluminum cabinet for rental work. As well as double side cabinet, front maintenance cabinet (front service) etc.

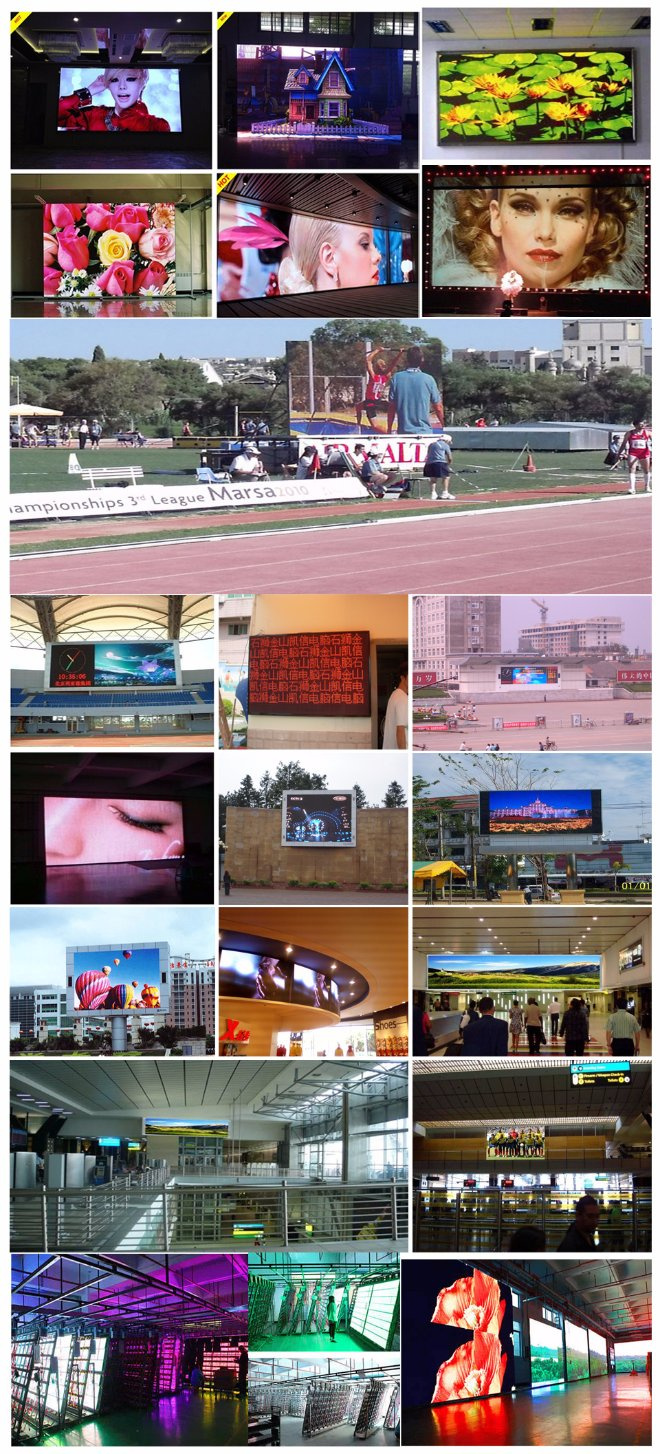

[Application]

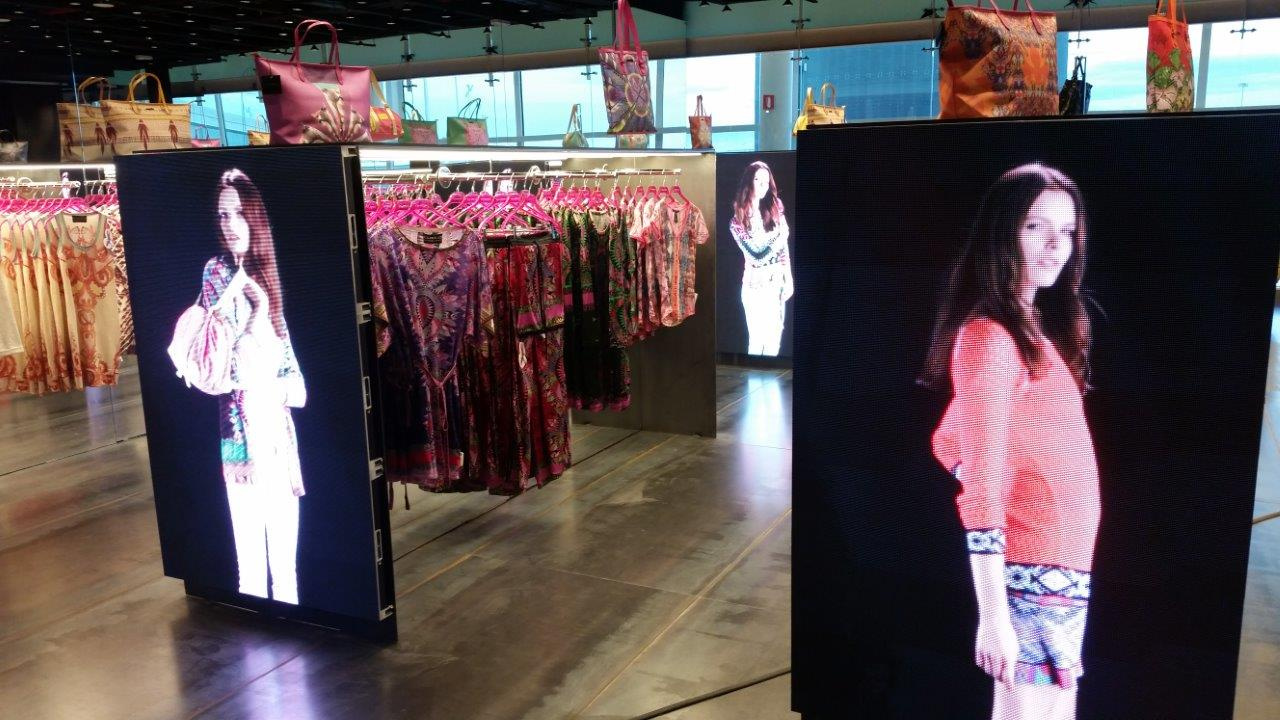

full color indoor advertisement led video wall p4 is widely used for the interior hall, television studio, exhibition hall, theaters, government departments, conference rooms, entertainment venues, schools, hospitals, performing arts centers and other places.
[Main Fectors]
1) High brightness:
Automatic or manual adjustment of the brightness of the display.
2)Top led chip:
Supplied by Epistar of China & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display system.
3) Clear vivid image quality:
Throughout the show, the picture clear, bright color.
4) Installation is simple, easy to use:
Easy and simple installation interface and user friendly software to ensure that customers use easily.
5) The list of available modules of our scrolling text led advertising screen:
Indoor: P1.667,P1.923,P3.91,P4.81,P2,P2.5,P3,P4,P5,P6,P7.62,P10
Outdoor: P3.91,P4.81,P4,P5,P6,P8,P10,P12,P12.5,P13.33,P16,P20,P25
Semi-outdoor:P10
6)Color to be chose:
Single color, dual color, tri-color,full color.
[FAQ]
Q1. Can I have a sample order for led panel?
A: Yes, we welcome sample order with charges to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 7-15 weeks.
Q3. Do you have any MOQ limit for led module order?
A: Low MOQ, 1 caroton(no less 40pcs) for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT for small quantity. It usually takes 3-5 days to arrive. And Airline and sea shipping for large quantity. As well as land transport for part countries.
Q5. How to proceed an order for led screen?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
[Company Information]
BrilliantOpto Co.,Limited [JingCai (Fujian) Optoelectronics Co., LTD] specialized in the development and manufacture of LED display system products.Founded in 2005, with the registered capital 20.18 million RMB, owns workshop area 40,000 m2. Branched offices and agents all over China, with about 400 employees, including 21 engineers and 5 of them are senior.
Main products:single & dual color LED display and full color LED display for indoor/outdoor use.The products can pass CE, RoHS, FCC, IP65, ISO9001 certifications, etc,.
Our technology strength is among the front row in this industries, with a professional team. Strictly quality control, good after sale service and quickly delivery.
Through our efforts, our products have been sold well in Europe, North/South America, Australia, the Middle East and Southeast Asia. Welcome to contact Brilliant Opto today!
[Payment Terms]
T/T in advance, 30% deposit and the balance 70% will be paid before shipment.
[Delivery Time]
7-15 working days after receiving deposit.
[Warranty]
2 years, offer the free spare parts( modules , power supply, LED, IC ect)in advance. After guaranty time, still supply spare parts with charging only materials cost.

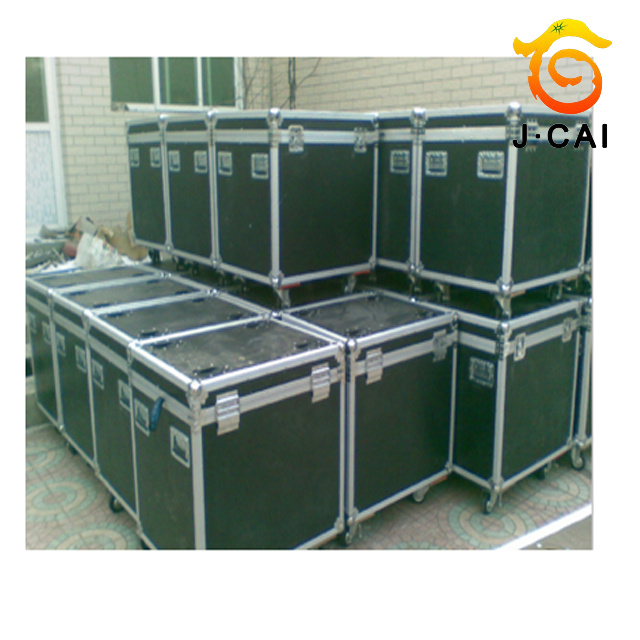

[Packing]
Carton box packing free, or wooden case charging.
[After-sales service]
1)Service principles: response in time, solve problem as soon as possible and ensure the use.
2)Service period: In the maintenance period of the led screen boby, free of all maintenance charges; after maintenance period, only charge the material costs fees free of manual work fees.
3)Service scope: If the users find any problem that cannot be solved, please contact with our company. we can response in 24 hours. In order to shorten the maintenance time, our company will deploy some spare parts such as power supply and chips ect.
4)Under normal use and storage, our company will responsible for the equipment.
[Pre-salses service]
1)Our company can arrange professional to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with clients to find solutions.
2)Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection.
