High Precision Horizontal & Vertical Rotary Tables
| Price: |
US $ 200-499/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
220-XXXX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery: |
20 Days |
| Logo Printing: |
Without Logo Printing |
| Customized: |
Non-Customized |
| Size: |
Normal |
Product Description

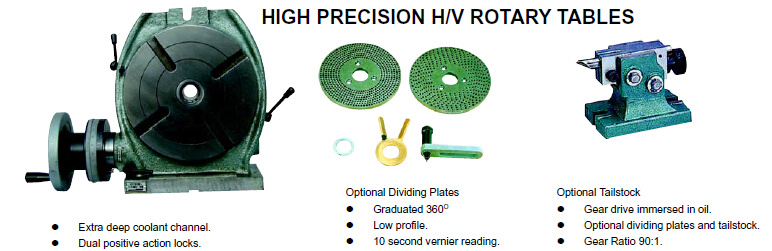

Supply High Precision Horizontal & Vertical Rotary Tables (Machine Accessories):The Rotary Table is one of the main accessories of the milling, boring and drilling machinery. It is forced by power or operated and can be make circular cutting, circule curved surface processing, straight line processing of the plane and some line segments. They also can be used for machining, the oblique hole or surface and hole of compound angle at one set-up.
Besides this, it is so designed as to be used in a vertical position to carry out center work with a tailstock. A flange for connecting scroll chuck is special supplied, and be packed independent.
For special order, the dividing plates accessory allows the operator to accurately divide the 360` rotation of the clamping surface into divisions of 2 through 66, and all divisible of 2, 3 and 5 from 67-132.

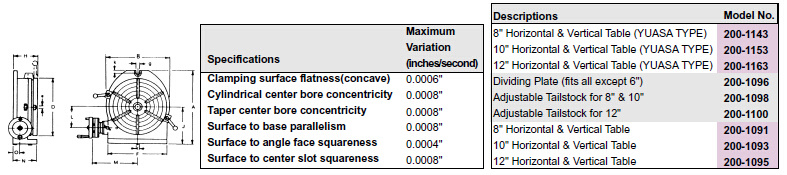

| Table Dia.(Inch) | 8 | 10 | 12 |
|
| A | 11.2 | 12.9 | 16.125 |
|
| B | 9.4 | 11.3 | 14.25 |
|
| C | 0.65 | 0.552 | 0.071 |
|
| D | 7.872 | 9.8 | 41037 |
|
| E | 3MT | 3MT | 4MT |
|
| F | 8.203 | 9.96 | 12.625 |
|
| G | 0.57 | 0.562 | 0.725 |
|
| H | 3.944 | 4.33 | 4.75 |
|
| J | 5.985 | 6.75 | 8.25 |
|
| K | 0.61 | 0.562 | 0.725 |
|
| L | 3.7 | 4.1 | 5.25 |
|
| M | 7.83 | 8.625 | 10.25 |
|
| N | 3.88 | 4.175 | 4.64 |
|
| O | 1.9 | 1.9 | 1.9 |
|
| T-SlotWith, | 0.46564lbs | 0.46594lbs | 0.545209lbs |
| Net Weight |
|
| Shipping Weight | 95lbs | 135lbs | 250lbs |
|
| Model No. | 200-1143 | 200-1153 | 200-1163 |
|
