High Performance Mining Shaking Table for Mineral Processing
| Price: |
US $ 1500-2000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
6S |
| Application: |
Mineral Separation |
| Feed Size: |
0.02-2mm |
| Deck Size: |
4500*1850*1550mm |
| Deck Grooves: |
46/60/88/110/120/138 Grooves |
| Grooves Shape: |
Rectangular/Saw-Tooth/Triangle |
| Feeding Density: |
10-30% |
| Capacity: |
0.3-1.2t/H |
| Power: |
1.1kw |
| Recovery Rate: |
80-95% |
| Type: |
Gravity Separator |
| Voltage: |
380V |
| Weight: |
<1T |
| Certification: |
ISO9001:2008 |
| Warranty: |
1 Year |
| Color: |
Black |
| Customized: |
Customized |
| Condition: |
New |
| Material: |
Fibre Glass |
| Material Feature: |
Corrosion Resistant |
Product Description

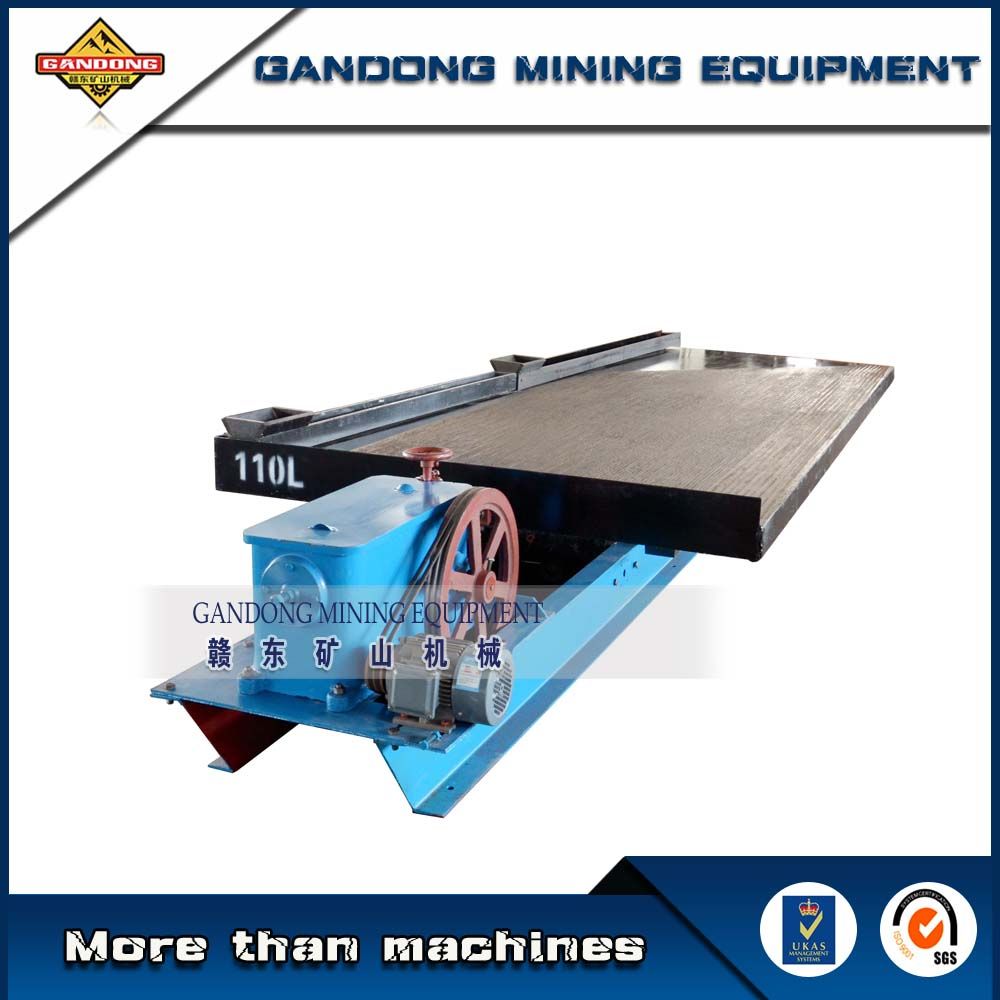

High performance mining shaking table for mineral processing
Shaking table is also called table concentrator, is the best gravity separation device for fine minerals. it's effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.
Separating precisely is the prominent advantage of shaking table. We can get some final concentrate, final tailing and 1 or 2 kinds of middling product after the first separating from raw mineral. The enrichment ratio of shaking table is the best in gravity separators, when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300 times. Besides, the range of separating particle size effectively in dealing with metallic ore is 2 to 0.02 mm.
Main technical parameters of shaking table
| Model | 6-S 7.6 |
| Deck type | Coarse ore deck
(46r) | Fine sand ore deck
(60r or 80r) | Slime ore deck
(110r, 120r or 138r) |
| Deck area (m2) | 7.6 |
| Deck length (mm) | 4500 |
| Drive end width of deck (mm) | 1850 |
| Outlet end width of deck (mm) | 1550 |
| Maximum feeding size (mm) | 2 | 0.5 | 0.074 |
| Capacity (t/h) | 1-1.2 | 0.5-1 | 0.3-0.5 |
| Feeding density (%) | 20-30 | 18-25 | 15-20 |
| Stroke (mm) | 16-22 | 11-16 | 8-16 |
| Frequency of stroke (r/min) | 220 | 250 | 280 |
| Power (Kw) | 1.1 |
Jiangxi Gandong Mining Equipment Machinery Manufacturer is a large beneficiation service company specialized in designing, manufacturing, installing and debugging of mining equipment as well as providing flow sheet design and course training of beneficiation, now our factory is the largest manufacturer and supplier of gravity mining equipment in China. Our factory has 12 years experience in mining equipment manufacturing, two special factories directly under the factory specialized in the manufacture of mining equipment and the manufacture of crusher and grinder. Our company covers an area of about 20, 000 square meters and with various large modernized machinery process facilities, professional mechanical and manufacturing engineers, professional mining engineers, as well as professional installation team.
Our factory has been adhering to the "honesty and realistic, quality first, technological innovation" business philosophy, successfully achieved ISO9001: 2008 Quality Management System Certificate, meanwhile cooperated with SGS and obtained SGS Audited Supplier Certificate. In addition, our factory obtained certificate of "Following Contract and Observing Credit" AA level Enterprise from Ganzhou city Administration Bureau for Industry and Commerce, and we signed an agreement of technical cooperation and product development with Jiangxi University of Science and Technology which is known as the "the cradle of nonferrous metallurgical expert", and established "East China Mining Equipment Technology Research & Development Center" and "Jiangxi Shicheng Mining Equipment Technology Research & Development Center" in our factory.
Because of excellent performance of our products and professional after-sale service, our gravity mining machine, flotation machine, classification machine, screening machine are known both at home and abroad, which gravity mining machine has a 35% market share in China. Meanwhile, we adhere to international development strategies, according to the market demand and the superiority of our products, continuously to strengthen up development of international market. Now our products have been exported to over 40 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, SouthAfrica, Zimbabwe, Sudan, Ghana, Congo, Morocco, India, Indonesia, Malaysia, Philippines, NorthKorea, Mongolia, Vietnam, Thailand etc.
Our goal is to provide customers with one-stop service in the field of mining, including the minerals in the mineral analysis, mineral processing test, engineering design, equipment production, equipment installation, equipment debugging and of technical training etc integrated services, through the provision of our perfect services to solve all customer's problem from his investment to his return.
