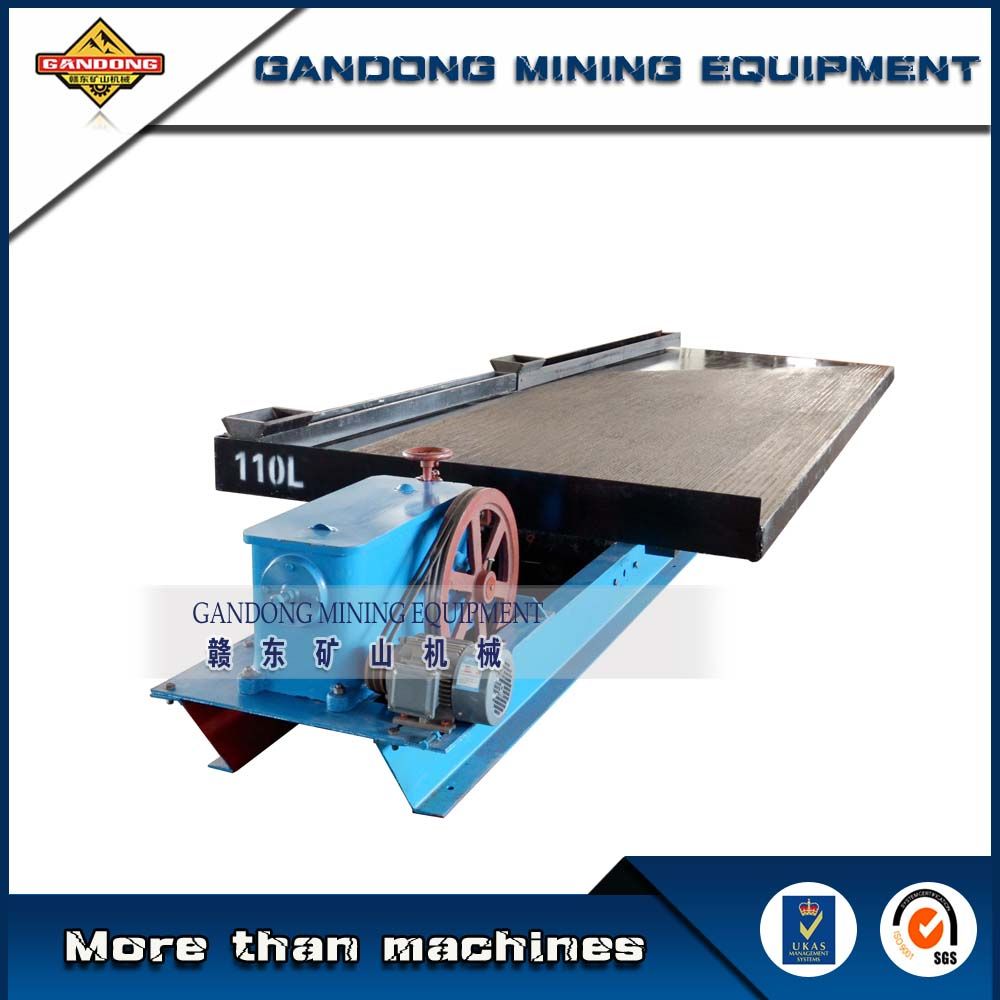

High Performance Gravity Shaking Table for Mineral Separation
| Price: |
US $ 1500-2000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
6S |
| Application: |
Mineral Separation |
| Feed Size: |
0.02-2mm |
| Deck Size: |
4500*1850*1550mm |
| Deck Grooves: |
46/60/88/110/120/138 Grooves |
| Grooves Shape: |
Rectangular/Saw-Tooth/Triangle |
| Feeding Density: |
10-30% |
| Capacity: |
0.3-1.2t/H |
| Power: |
1.1kw |
| Recovery Rate: |
80-95% |
| Type: |
Gravity Separator |
| Voltage: |
380V |
| Weight: |
<1T |
| Certification: |
ISO9001:2008 |
| Warranty: |
1 Year |
| Color: |
Black |
| Customized: |
Customized |
| Condition: |
New |
| Material: |
Fibre Glass |
| Material Feature: |
Corrosion Resistant |
Product Description
High performance gravity shaking table for mineral separation
Shaking table is also called table concentrator, is the best gravity separation device for fine minerals. it's effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.
Separating precisely is the prominent advantage of shaking table. We can get some final concentrate, final tailing and 1 or 2 kinds of middling product after the first separating from raw mineral. The enrichment ratio of shaking table is the best in gravity separators, when dealing with low grade tungsten ore and tin ore, the enrichment ratio could reach about 300 times. Besides, the range of separating particle size effectively in dealing with metallic ore is 2 to 0.02 mm.
Main technical parameters of shaking table
| Model | 6-S 7.6 |
| Deck type | Coarse ore deck
(46r) | Fine sand ore deck
(60r or 80r) | Slime ore deck
(110r, 120r or 138r) |
| Deck area (m2) | 7.6 |
| Deck length (mm) | 4500 |
| Drive end width of deck (mm) | 1850 |
| Outlet end width of deck (mm) | 1550 |
| Maximum feeding size (mm) | 2 | 0.5 | 0.074 |
| Capacity (t/h) | 1-1.2 | 0.5-1 | 0.3-0.5 |
| Feeding density (%) | 20-30 | 18-25 | 15-20 |
| Stroke (mm) | 16-22 | 11-16 | 8-16 |
| Frequency of stroke (r/min) | 220 | 250 | 280 |
| Power (Kw) | 1.1 |
