| Price: | US $ 1000-10000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
| Prod Model: | ZBW series |
|---|---|
| Type: | Distribution Metering Box |
| Structure: | Protection |
| Size: | Can Be Customized |
| Shell Material: | Can Be Customized |
| Brand: | Bangzhao or OEM |

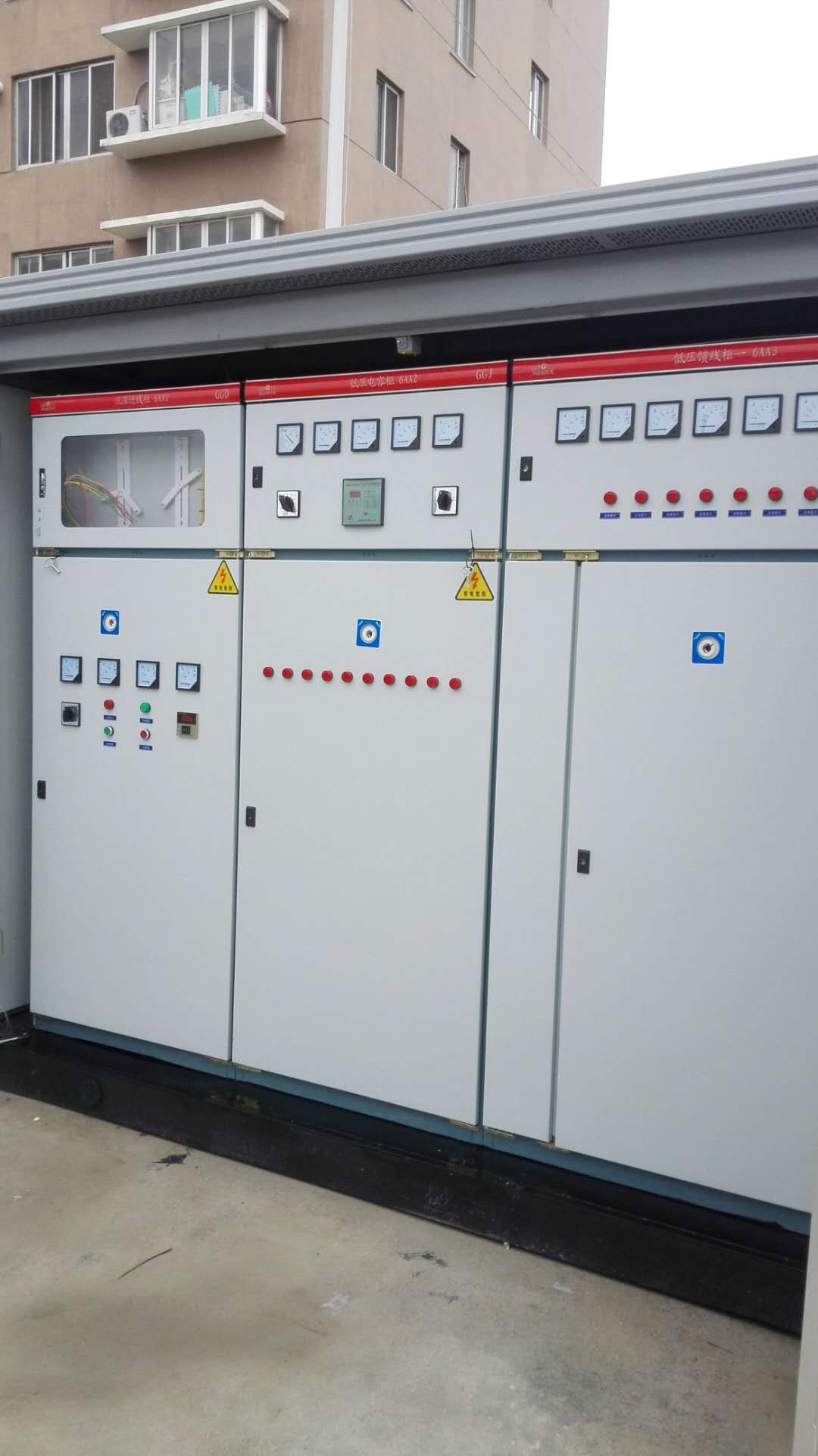

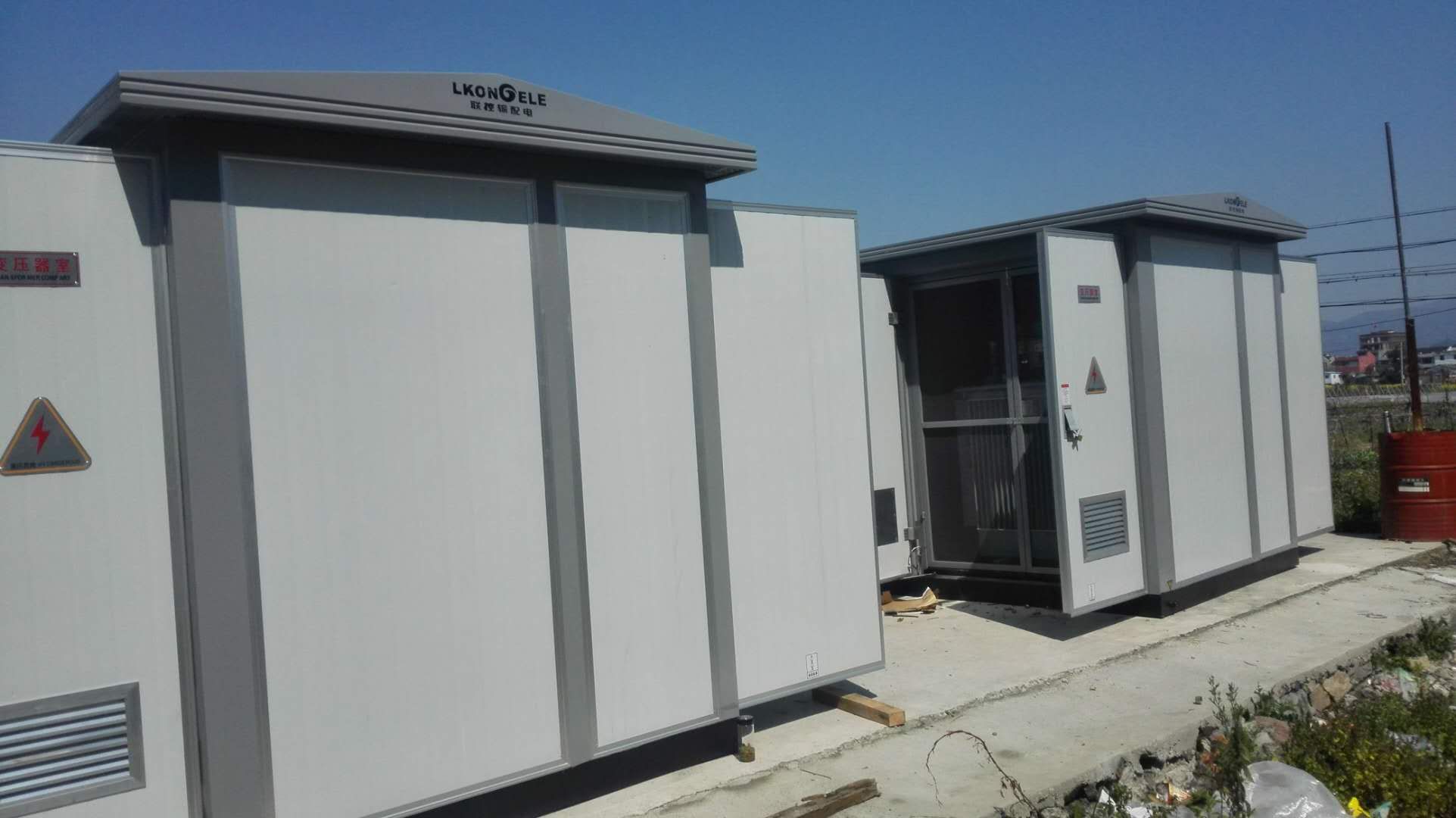

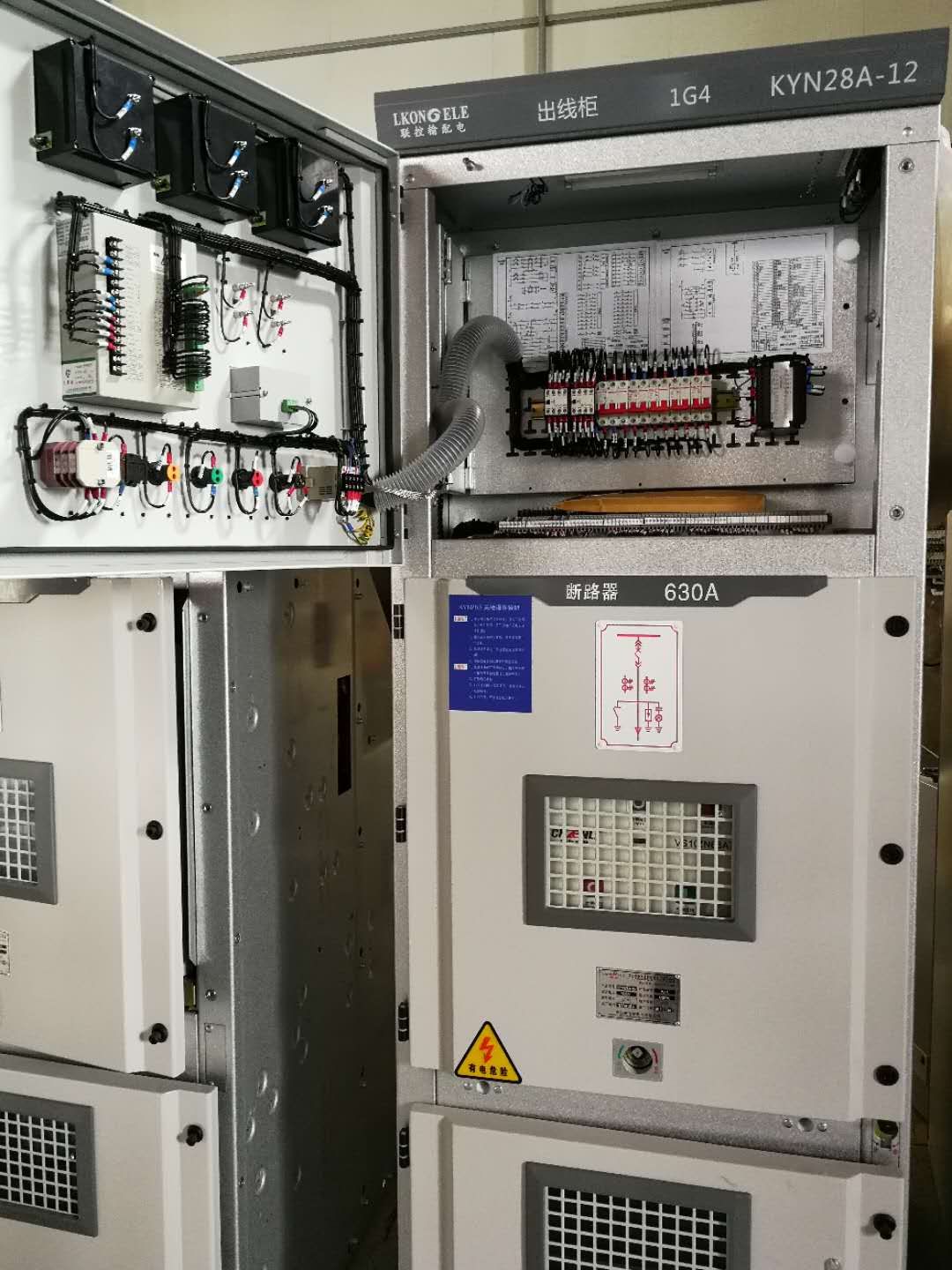

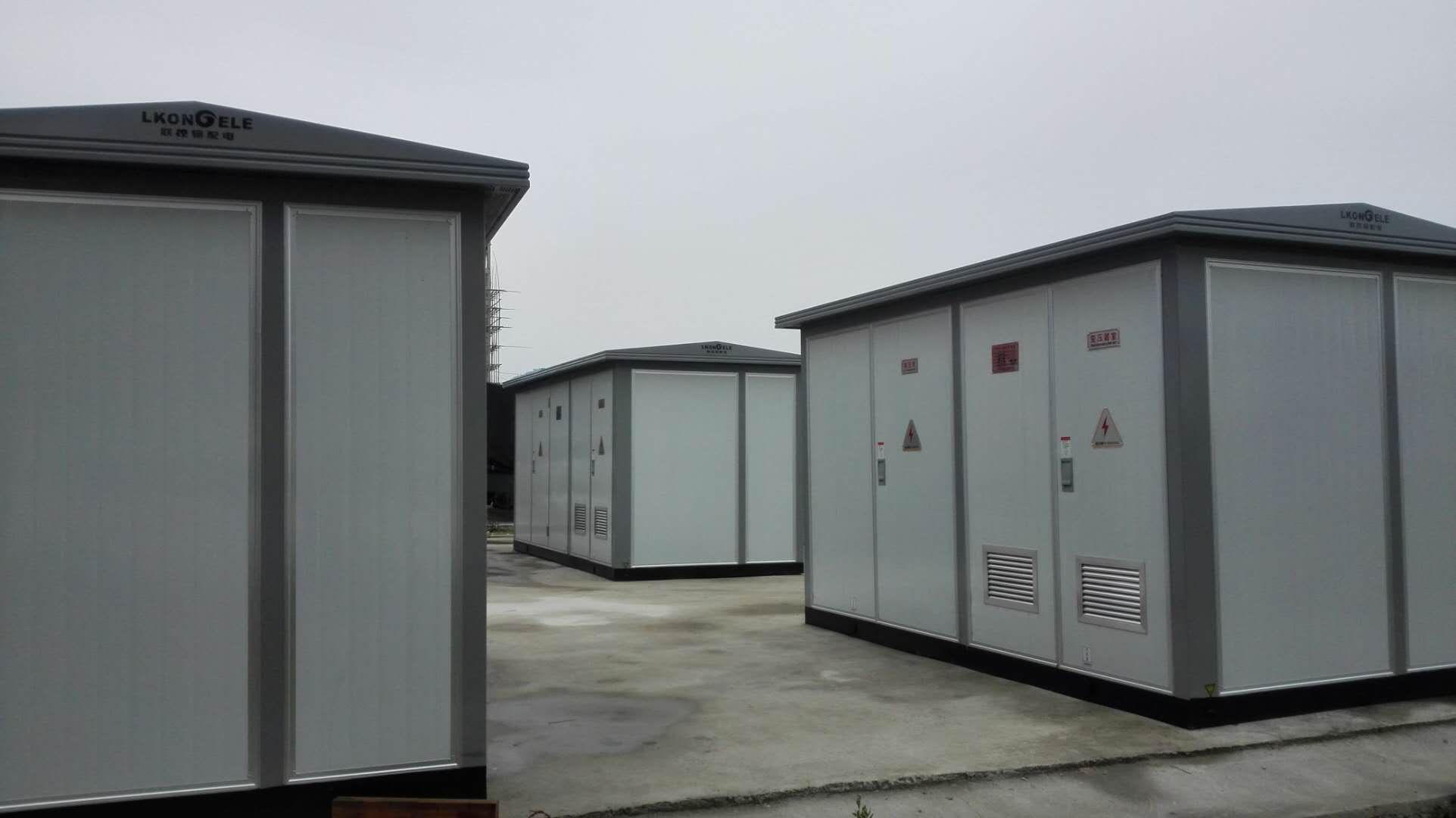

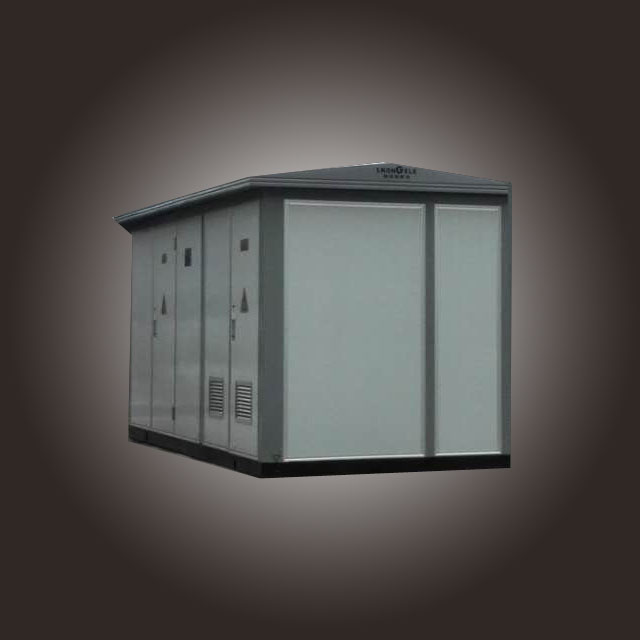

High-Low Voltage Combined high voltage substation-Power distribution cabinet
Product DescriptionProduct description
ZBW series modular substation is a combination of high-voltage electrical equipment, transformers, low-voltage electrical equipment into a compact complete power distribution unit, together with urban high-rise buildings, urban buildings, residential areas, high-tech development zones, small and medium-sized factories, As well as temporary construction and other places, so that the distribution system to accept and distribute the use of electricity.
This product has a strong set, small size, compact structure, safe and reliable operation, easy maintenance, and removable features, covers an area of only the same capacity conventional civil substation 1 / 10-1 / 5, greatly reducing the construction cost. In the distribution system can be used for ring network distribution system can also be used for dual power or radiation terminal power distribution system, is the construction of urban and rural substation and change
Made the first choice of new sets of equipment. This product complies with GB / T1 7467-1 998 "high voltage prefabricated substation" standard and GB1 330 standard.
Use environmental conditions
1. Ambient air temperature is not higher than +40 ° C, minimum ambient air temperature: -35 ° C.
2. Poster: no more than 1000 meters.
3. Humidity: Daily average relative humidity of not more than 95%, the monthly relative humidity of not more than 90%.
4. Safety places: no fire, no conductive dust, no explosion hazard, no corrosion of metal and severe vibration of the place, if the above conditions when the user can consult with my company.
Product design features
1. High-voltage switchgear, transformers, low-voltage switchgear Trinity, complete sets of strong.
2. High and low voltage protection, safe and reliable operation, easy maintenance.
3. Small footprint, investment in the province, the production cycle is short, easy to move.
4. Flexible wiring scheme.
5. Unique structure: unique honeycomb structure double (composite board) shell solid, heat insulation and ventilation, beautiful, high degree of protection, the shell material has cold-rolled plate, color steel plate optional.
6. Various forms: general-purpose, landscape type, compact and other styles.
7. High-voltage ring network cabinet can be equipped with network automation terminal (FTu) to achieve short-circuit and single-phase ground fault of the reliable detection, with "four remote" function, easy to network automation upgrade.
