| Prod Model: |
LJ series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| After-Sale Service: |
Installation, Commissioning |
| Wearing Parts Supply: |
The Whole Life |
| Mining Object: |
Sand |
| Type: |
Mineral Processing & Screening Equipment |
Product Description

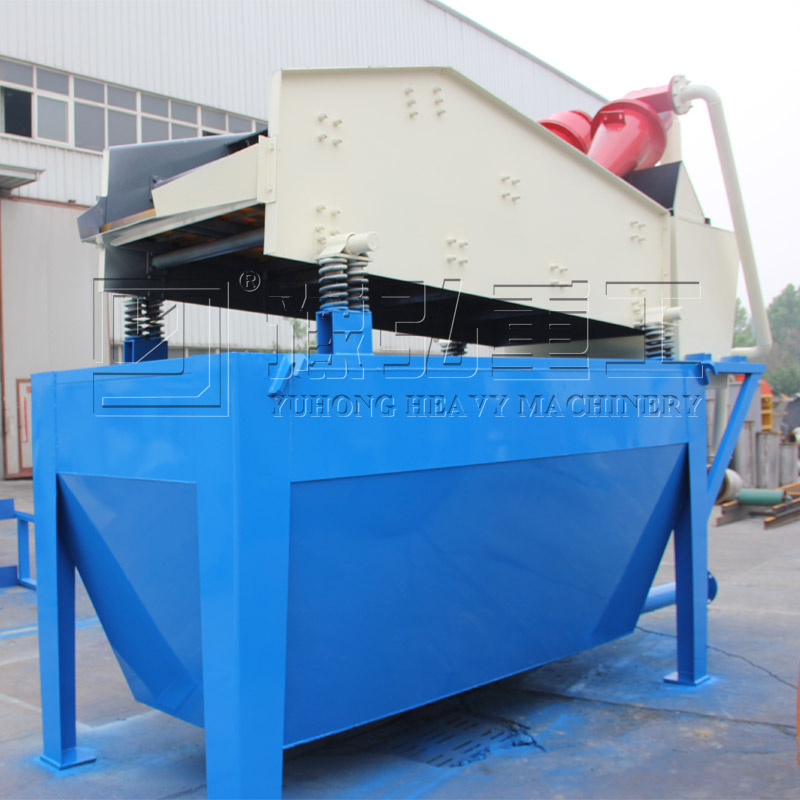

Sand Recycling Machine Introduction:
Sand recycling machine is designed by our company absorbing the world advanced technology, combined with the actual working condition. It is widely used in aggregate processing system, glass factory, artificial sand production line, environmental protection project, and mud purify.
Sand Recycling Machine Features:
1: Effectively reduce the fine sand losing quantity, and make it in the scope of 5-10%.
2: The vibrating screen utilizes polyurethane screen cloth, which has longer life compared with others and uneasy to be blocked.
3: Inner the polyurethane, strengthen the whole device service life, it can smoothly finished the work of condensing slime and clearing the liquid etc.
4: The maximum fine grain materials quantity recovered from the total effluent is 95%, so it has unsurpassed technology and economic advantage compared with other equipments.
5: The find sand are recovered sufficiently, you can reduce the sedimentation basin workload and Low its clean cost.
6: Reducing nature stock time of the fine material, they can be transferred directly and supplied to the market.
7: We can design corresponding solve project according to our consumers, different requirements
Sand Recycling Machine Working Principle:
Working process: The pump sends the sand and water mixture to cyclone, the fine sand with eccentricity is sent to vibrating screen. The fine sand and water are effectively separated after dehydration, and little fine sand and mud go back to washing trough.
When the liquid surface of the washing trough is high, the fine sand discharges from output opening. The linear vibrating screen can recover material with concentration 70%-85%, and fineness adjustable is achieved by changing pump rotation speed, changing mortar concentration, and adjusting overflow water yield
Structure: Consist of motor, pump, cyclone, ZKR linear vibrating screen, washing trough, and returning material box.
Model
|
Pump power
(kw)
|
Cyclone quantity
(set)
| Vibrating screen power(kw)
| Capacity
|
LJ300 |
11 |
Single spray |
2x1.2
|
80-100
|
LJ350 |
15 |
Single spray |
2x1.5
|
100-170
|
LJ600 |
18.5
| Twin- jet |
2x3
|
160-200
|
LJ700 | 22*2 | Twin- jet |
2x3
|
200-300
|
LJ900 |
37
|
Three spray |
2x3
|
300-450
|
